Crankshaft Installation

Special Tools Required

  1. Check the connecting rod bearing clearance with plastigage (see CONNECTING ROD BEARING REPLACEMENT ).
  2. Check the main bearing clearance with plastigage (see MAIN BEARING CLEARANCE INSPECTION ).
  3. Install the bearing halves in the engine block and connecting rods.
  4. Apply a coat of new engine oil to the main bearings and rod bearings.
  5. Hold the crankshaft so rod journal No. 2 and rod journal No. 3 are straight up, and lower the crankshaft into the engine block.
  6. Install the thrust washers (A) in the No. 4 journal of the engine block.
    Fig 1: Identifying Thrust Washers
    G05454339Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Inspect the connecting rod bolts (see CONNECTING ROD BOLT INSPECTION ).
  8. Apply new engine oil to the threads and flange of the connecting rod bolts.
  9. Seating the rod journals into connecting rod No. 1 and connecting rod No. 4. Line up the mark (B) on the connecting rod and cap, then install the caps and bolts finger-tight.
  10. Rotate the crankshaft clockwise, and seat the journals into connecting rod No. 2 and connecting rod No. 3. Line up the mark on the connecting rod and cap, then install the caps and bolts finger-tight.
  11. Tighten the connecting rod bolts to 9.8 N.m (1.0 kgf.m, 7.2 lbf-ft).
  12. Tighten the connecting rod bolts an additional 90°.
    NOTE: Remove the connecting rod bolt if you tightened it beyond the specified angle, and go back to step 7 of the procedure. Do not loosen it back to the specified angle.
    Fig 2: Tightening Connecting Rod Bolts An Additional 90°
    G05454340Courtesy of AMERICAN HONDA MOTOR CO., INC.
  13. Remove old liquid gasket from the bearing cap bridge mating surfaces.
  14. Clean and dry the bearing cap bridge mating surfaces.
  15. Apply a 1.5 mm wide bead of the liquid gasket, P/N 08717-0004, 08718-0001, 08718-0003, or 08718-0009, along the broken lines (A). Install the component within 5 minutes of applying the liquid gasket.
    NOTE:
    • If you apply liquid gasket P/N 08718-0012, the component must be installed within 4 minutes.
    • If too much time has passed after applying the liquid gasket, remove the old liquid gasket and residue, then reapply new liquid gasket.
    Fig 3: Applying Wide Bead Of Liquid Gasket
    G05454341Courtesy of AMERICAN HONDA MOTOR CO., INC.
  16. Put the bearing cap bridge on the engine block.
  17. Apply new engine oil to the threads and flange of the bearing cap bolts.
  18. Tighten the bearing cap bolts in sequence to 25 N.m (2.5 kgf.m, 18 lbf.ft).
    Fig 4: Tightening Bearing Cap Bolts In Sequence
    G05454342Courtesy of AMERICAN HONDA MOTOR CO., INC.
  19. Tighten the bearing cap bolts an additional 40°.
  20. Clean the excess liquid gasket off the engine block.
  21. Use the handle driver and oil seal driver attachment to drive a new oil seal squarely into the engine block to the specified installed height.
    Fig 5: Driving New Oil Seal
    G05454343Courtesy of AMERICAN HONDA MOTOR CO., INC.
  22. Measure the distance between the crankshaft and oil seal.

    Oil Seal Installed Height:

    7-8 mm (0.28-0.31 in.)

    Fig 6: Identifying Distance Between Crankshaft And Oil Seal
    G05454344Courtesy of AMERICAN HONDA MOTOR CO., INC.

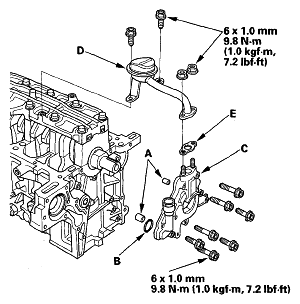

  23. Install the dowel pins (A) and new O-ring (B) on the oil pump (C), then align the inner rotor with crankshaft, and install the oil pump.
    Fig 7: Dowel Pins, O-Ring And Oil Pump With Torque Specifications
    G05454345Courtesy of AMERICAN HONDA MOTOR CO., INC.
  24. Install the oil screen (D) with new gasket (E).
  25. Install the cylinder head (see CYLINDER HEAD INSTALLATION ).
  26. Install the cam chain (see CAM CHAIN INSTALLATION ).
  27. M/T model: install the flywheel (see FLYWHEEL REPLACEMENT ), clutch disc (see CLUTCH DISC AND PRESSURE PLATE INSTALLATION ), and pressure plate (see CLUTCH DISC AND PRESSURE PLATE INSTALLATION ).
  28. A/T model: Install the drive plate (see DRIVE PLATE REMOVAL AND INSTALLATION ).
  29. Install the transmission:
  30. Install the engine assembly (see ENGINE INSTALLATION ).
    NOTE: Whenever any crankshaft or connecting rod bearing is replaced, it is necessary after reassembly to run the engine at idle speed until it reaches normal operating temperature, then continue running it for about 15 minutes.
