Keyless Entry Receiver: Locations

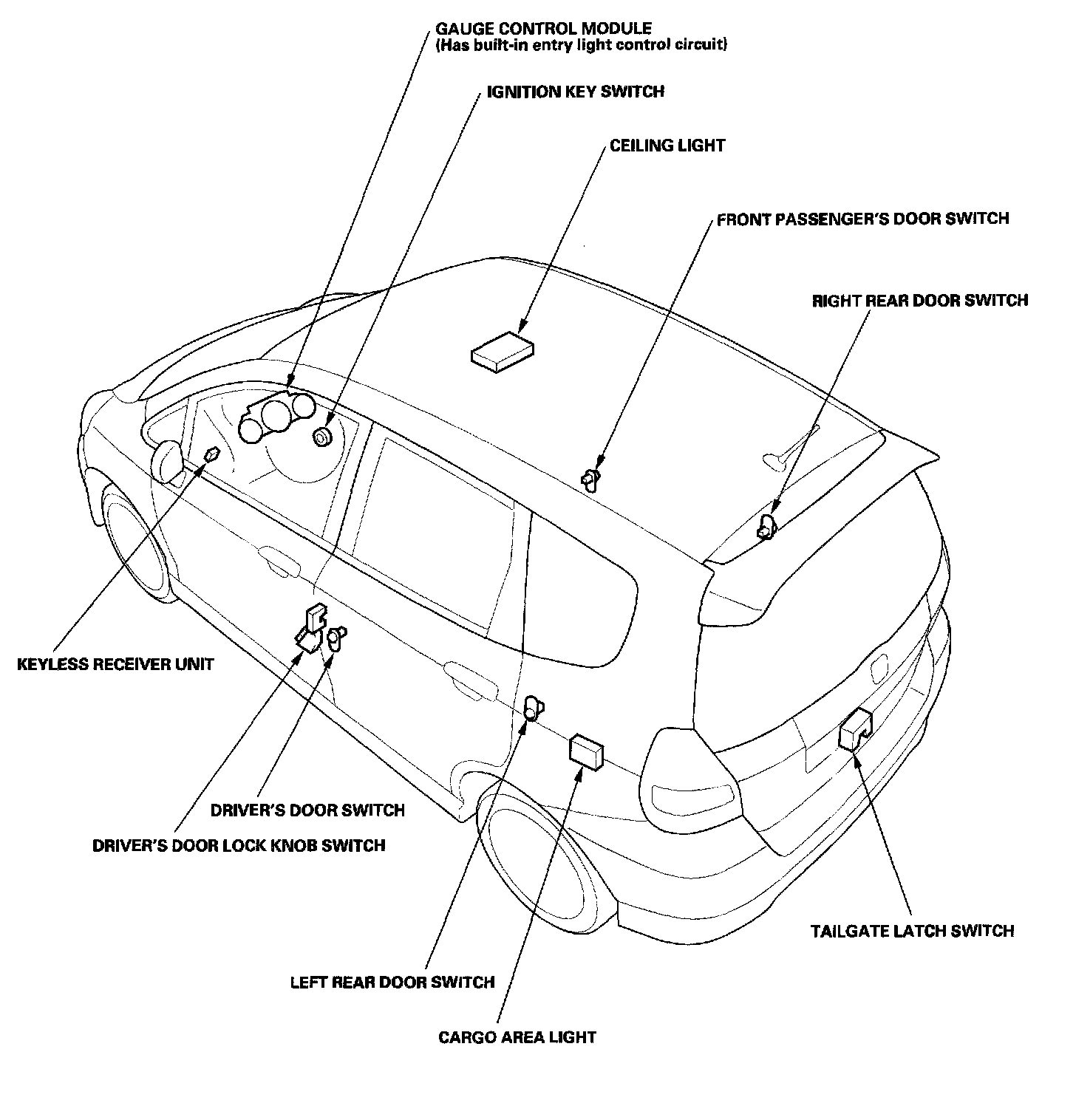

Entry Lights Control System Component Location Index:

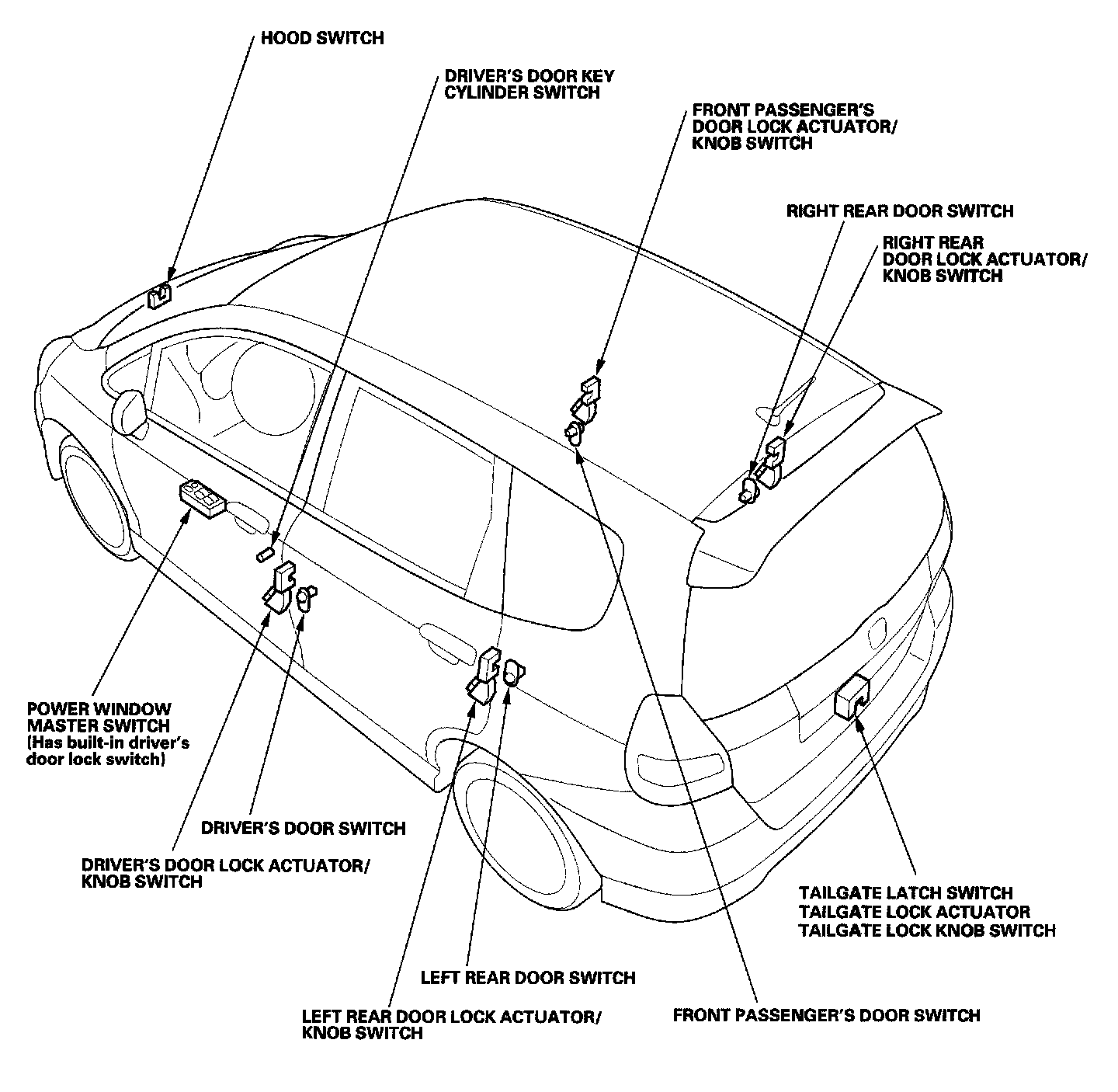

Keyless/power Door Locks/security System Component Location Index:

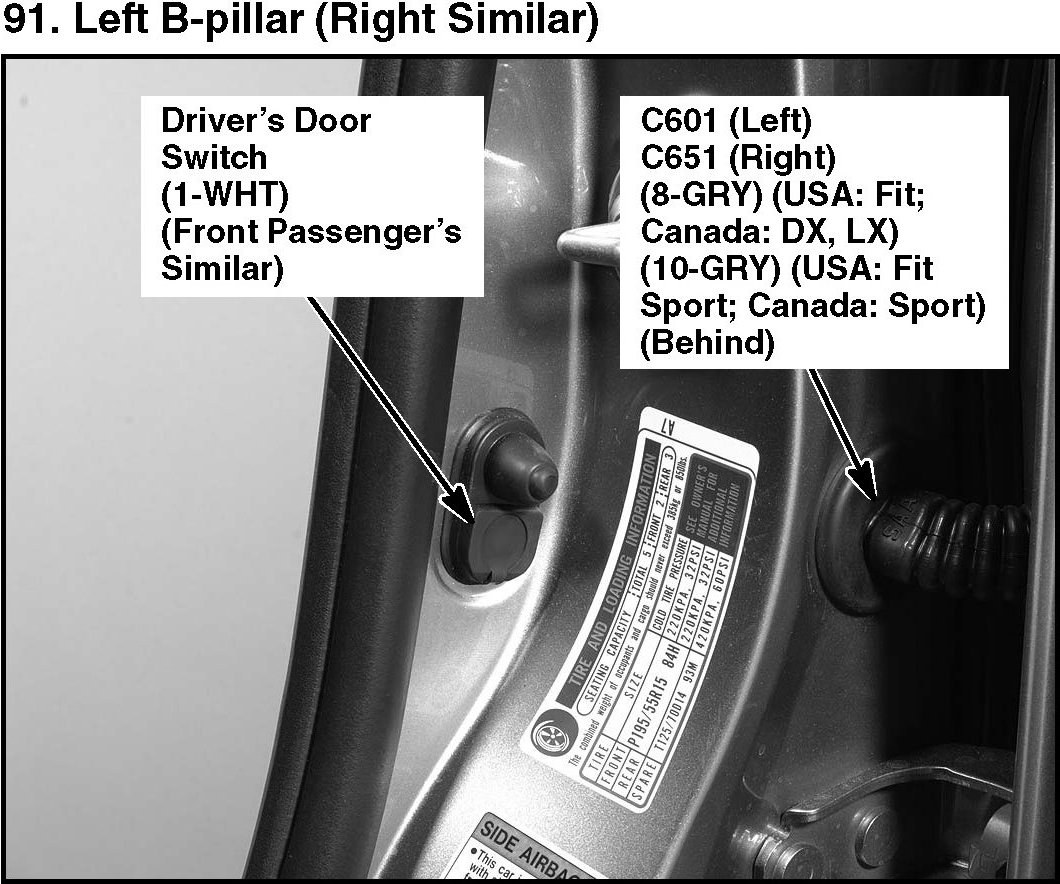

91. Left B-pillar (Right Similar):

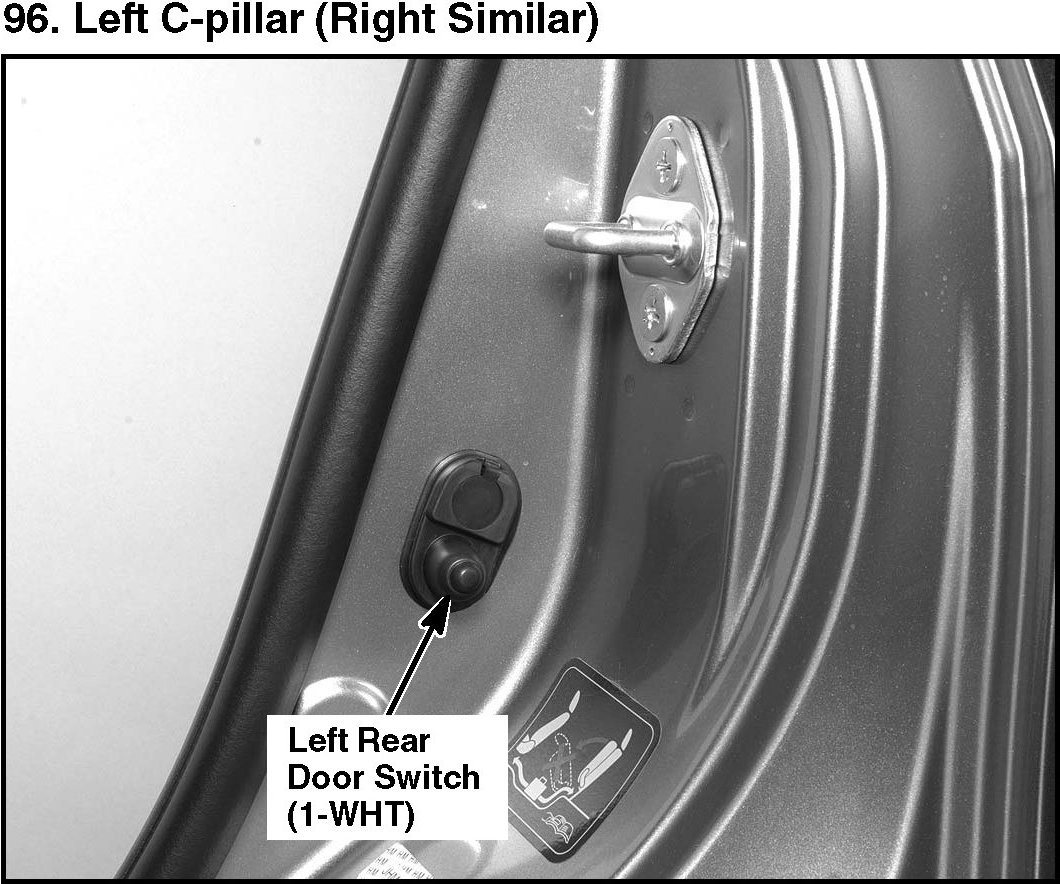

96. Left C-pillar (Right Similar):
