Alarm Module, (Vehicle Antitheft)

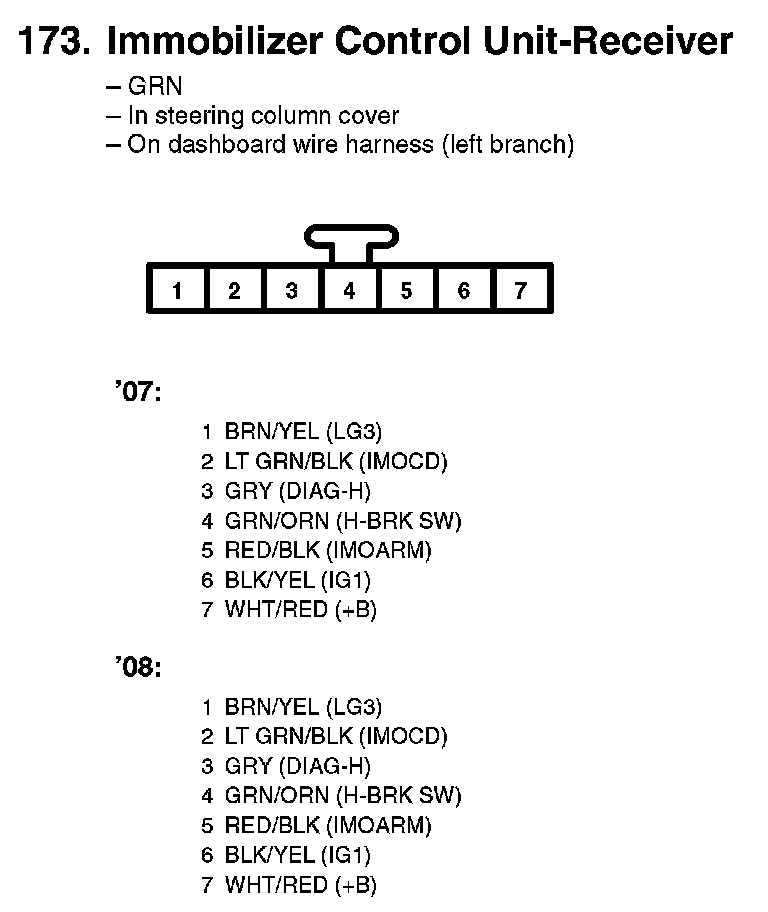

173. Immobilizer Control Unit-Receiver:

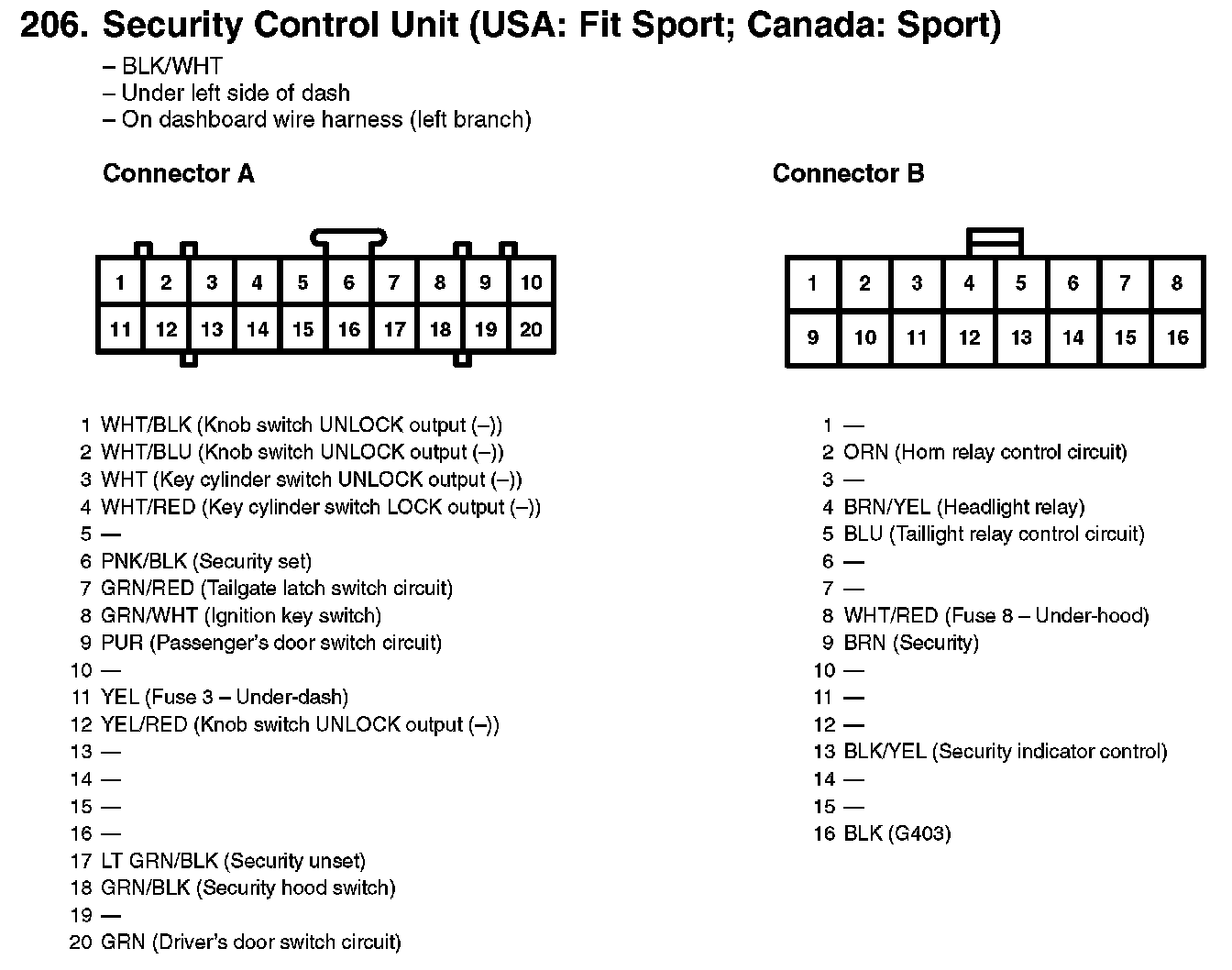

206. Security Control Unit (USA: Fit Sport; Canada: Sport):

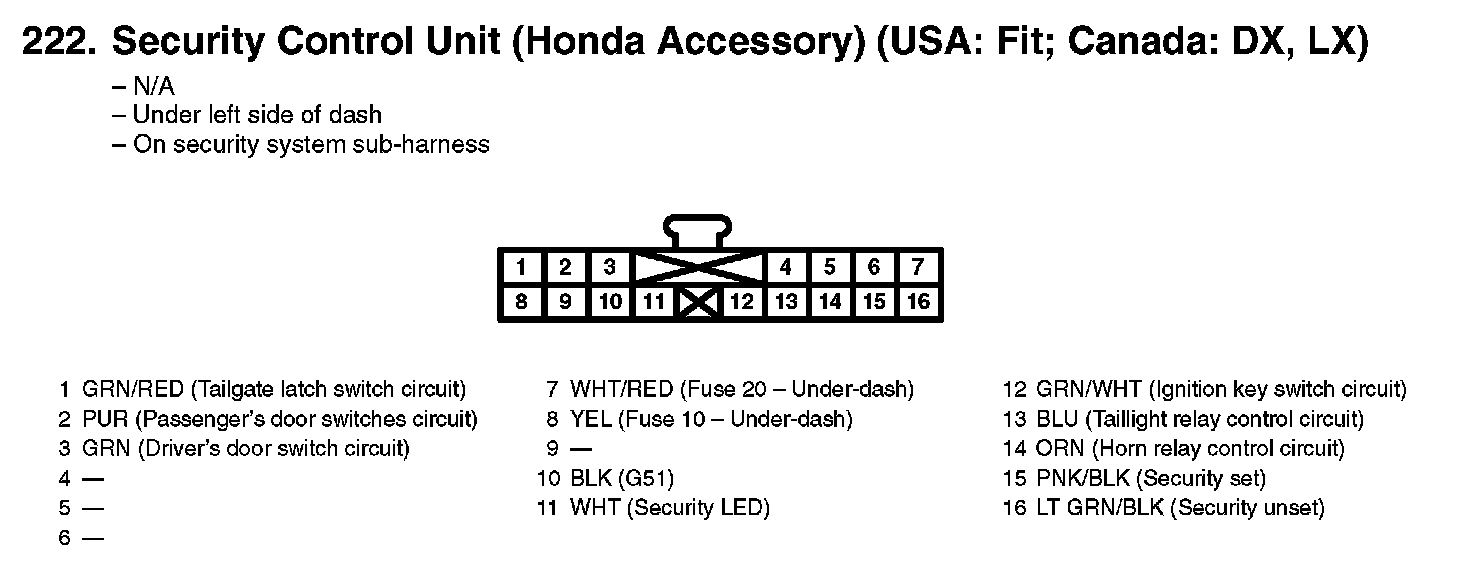

222. Security Control Unit (Honda Accessory) (USA: Fit; Canada: DX, LX):
