Fuse Block

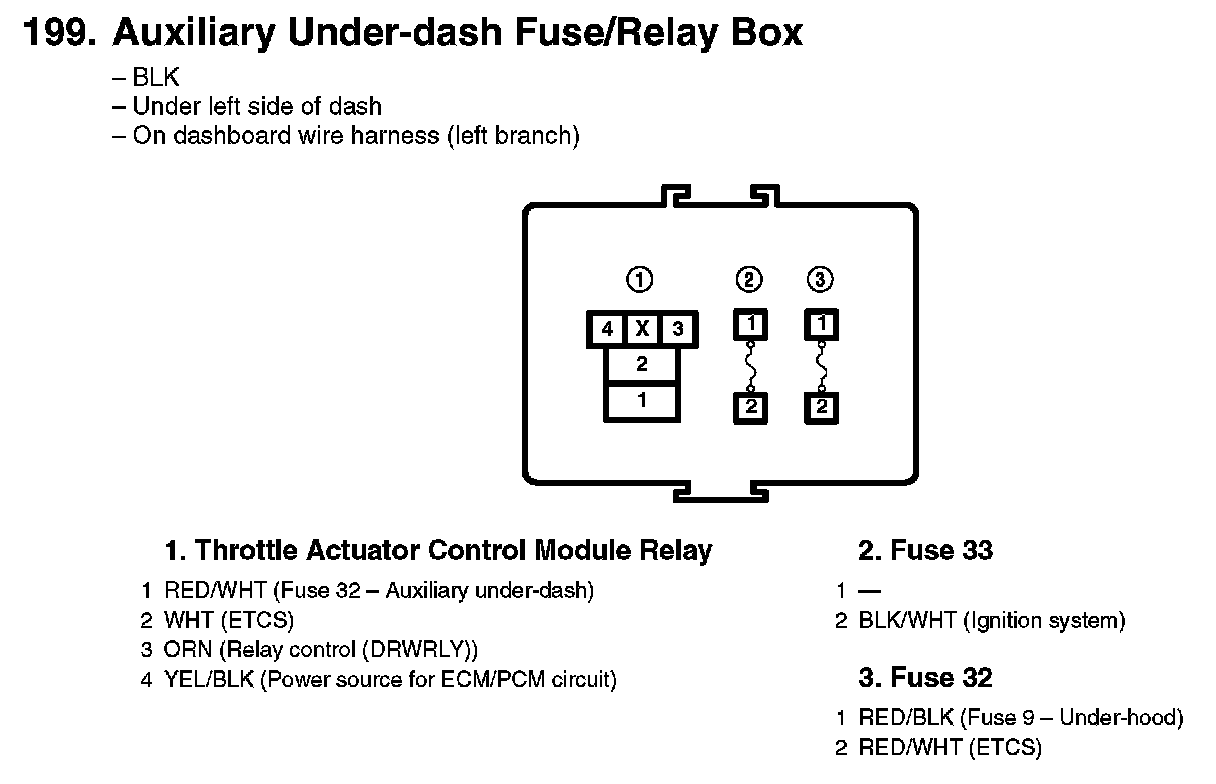

199. Auxiliary Under-dash Fuse/Relay Box:

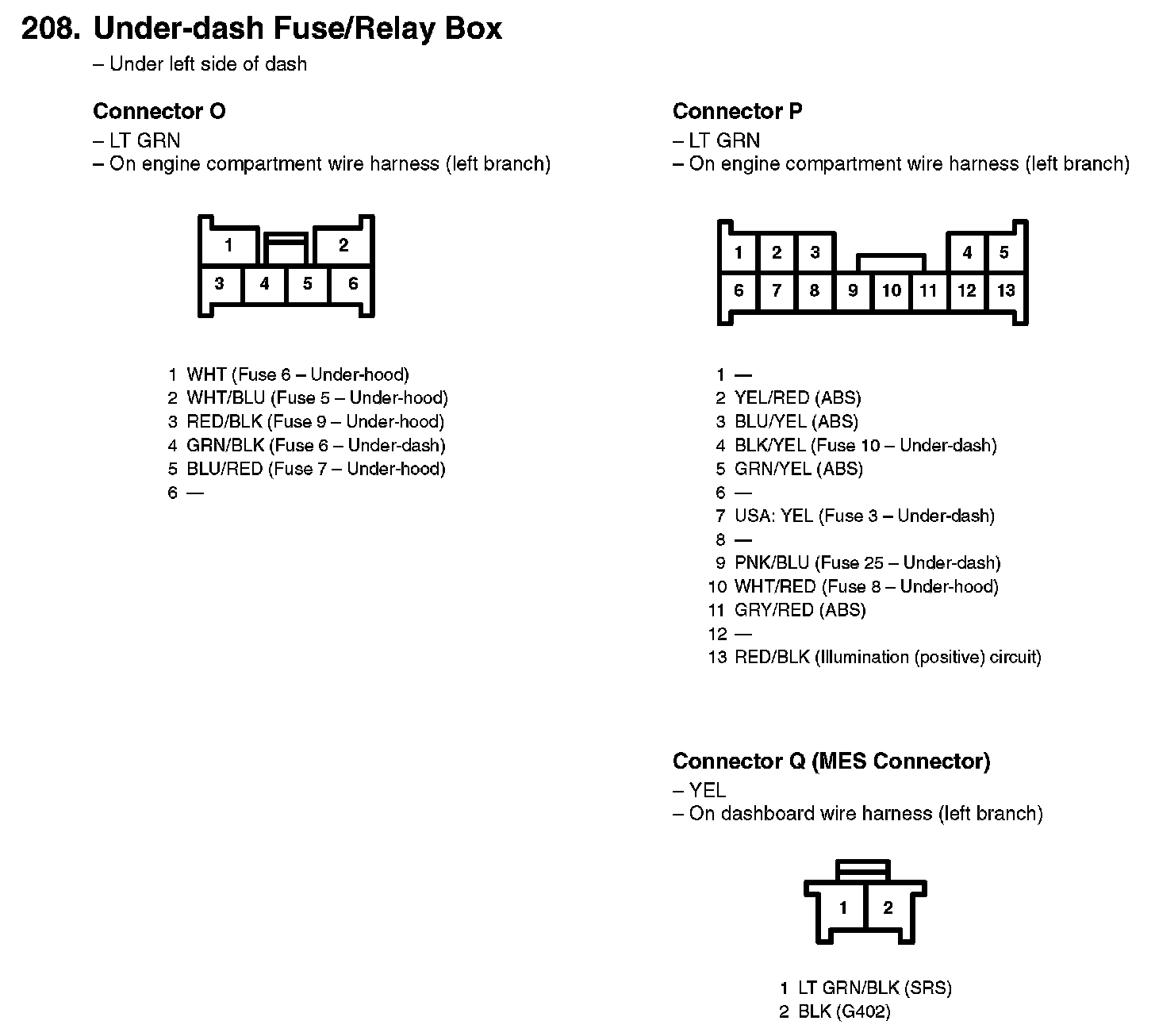

208. Under-dash Fuse/Relay Box:

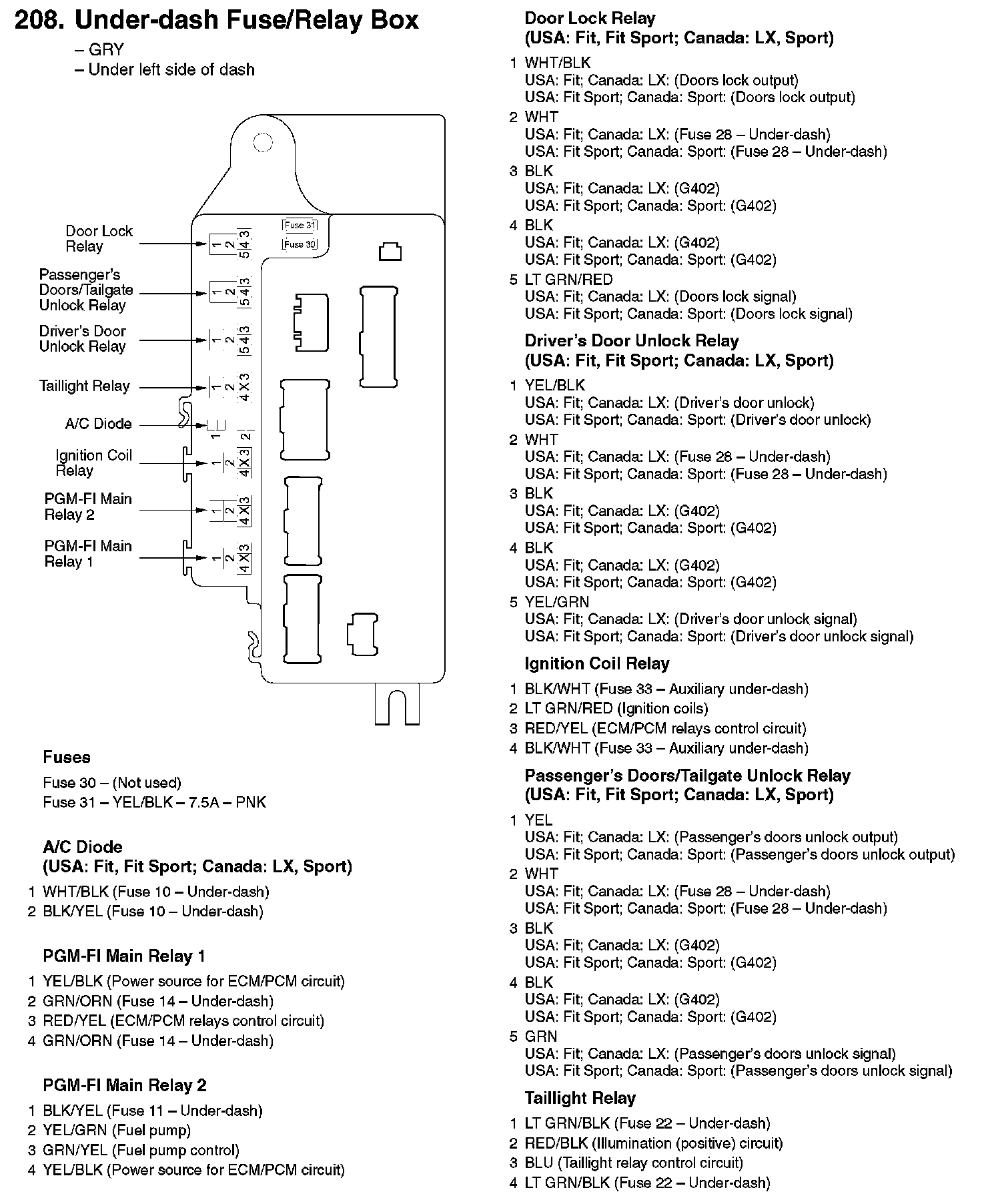

208. Under-dash Fuse/Relay Box:

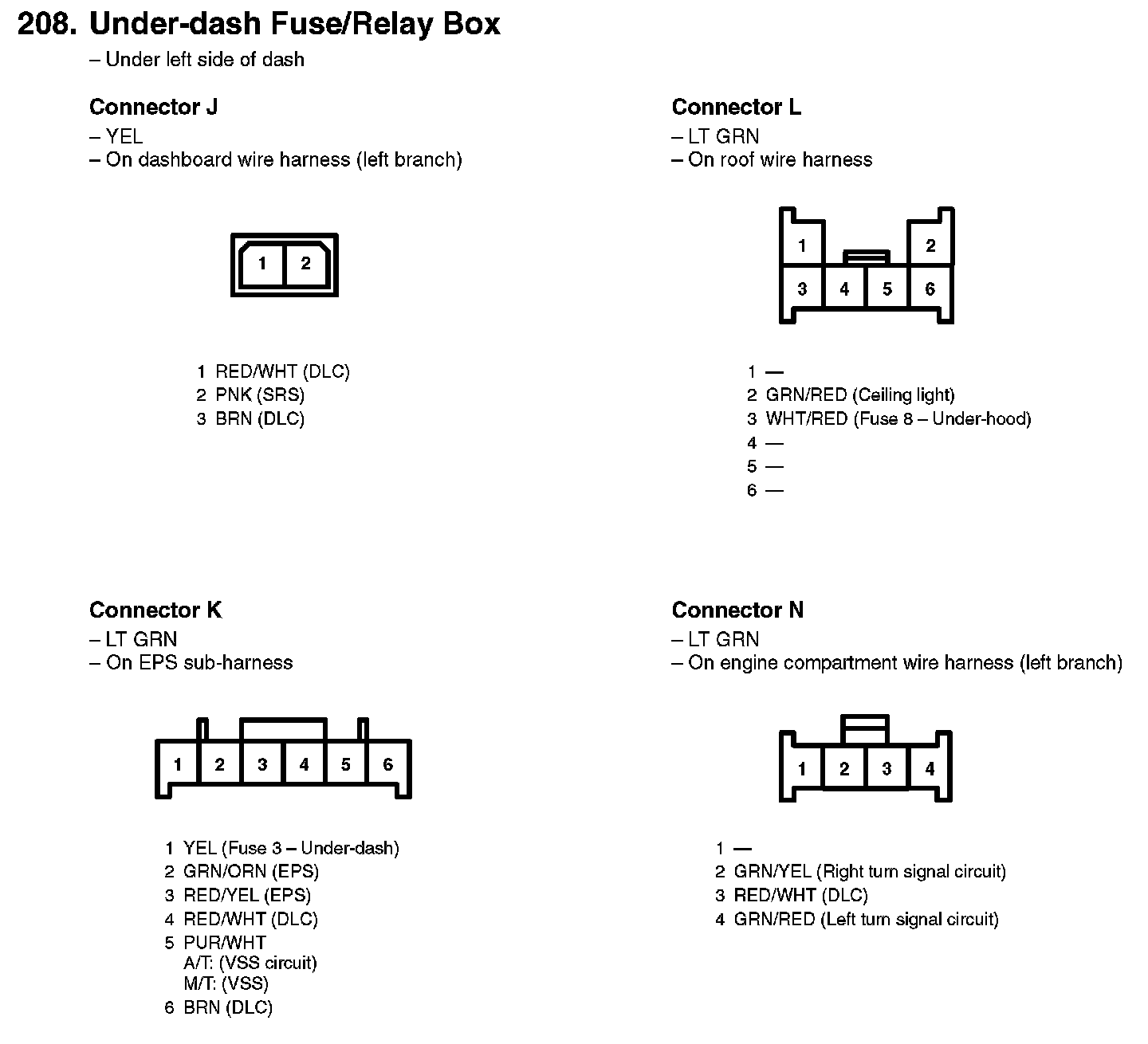

208. Under-dash Fuse/Relay Box:

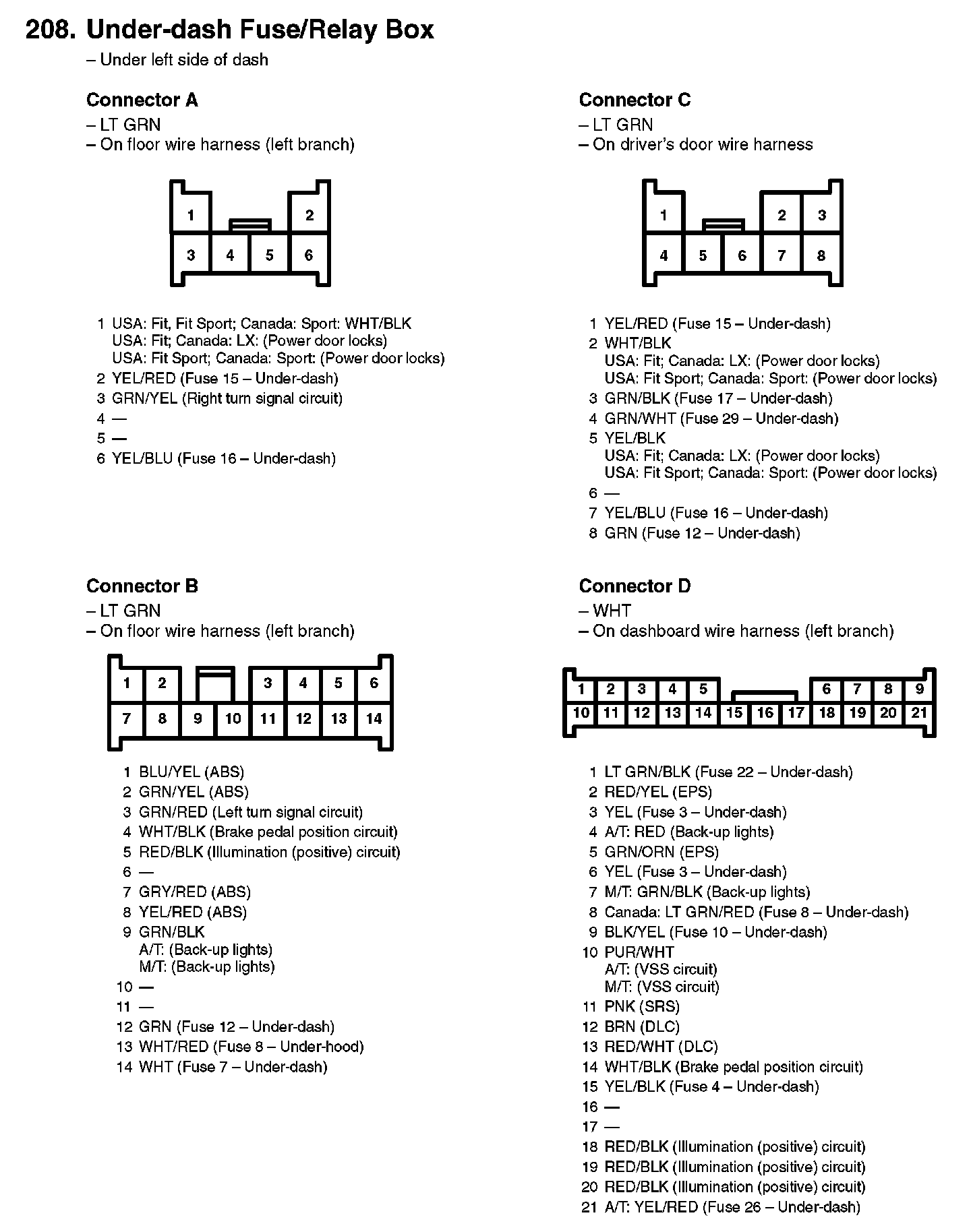

208. Under-dash Fuse/Relay Box:

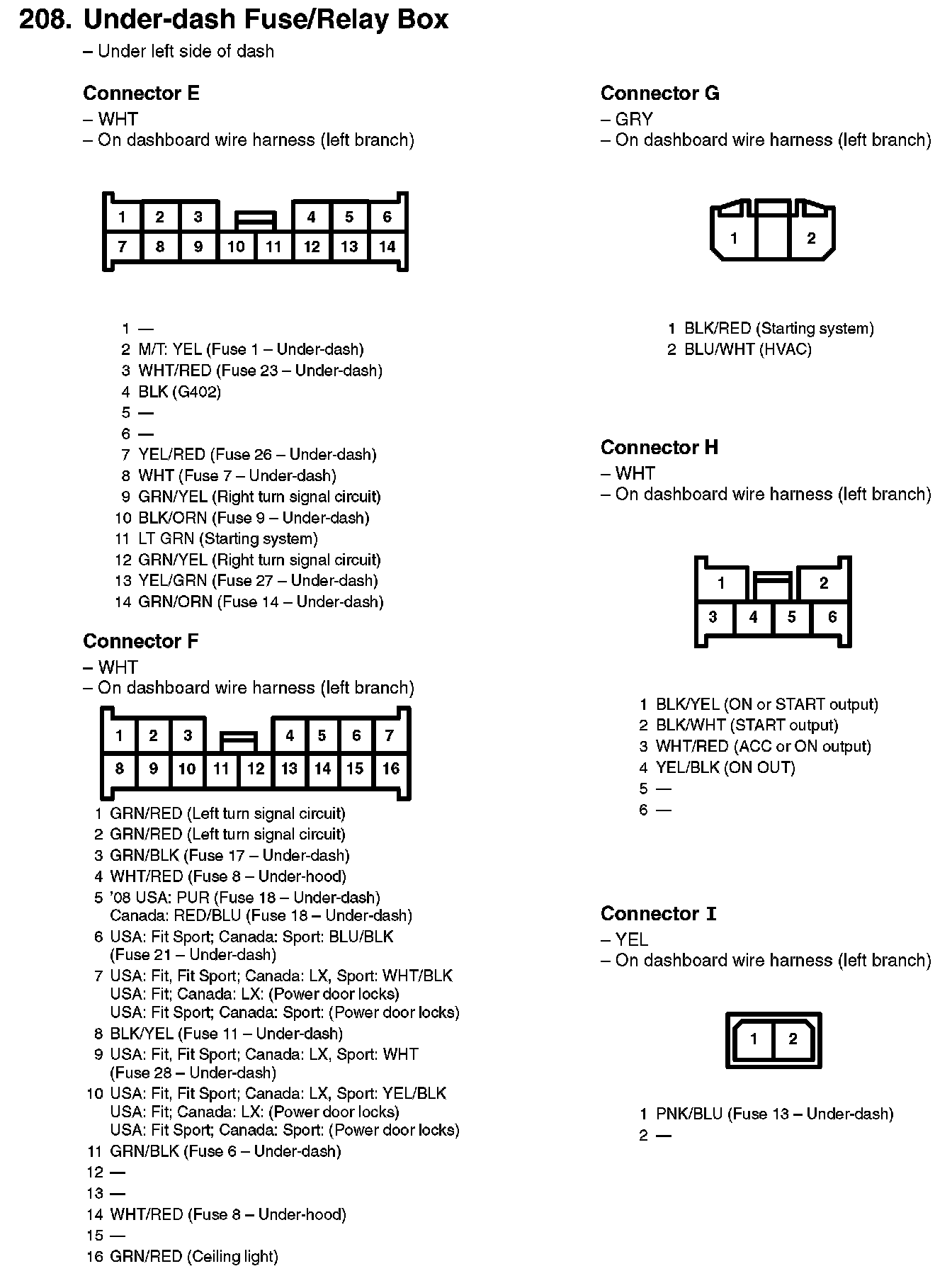

208. Under-dash Fuse/Relay Box:

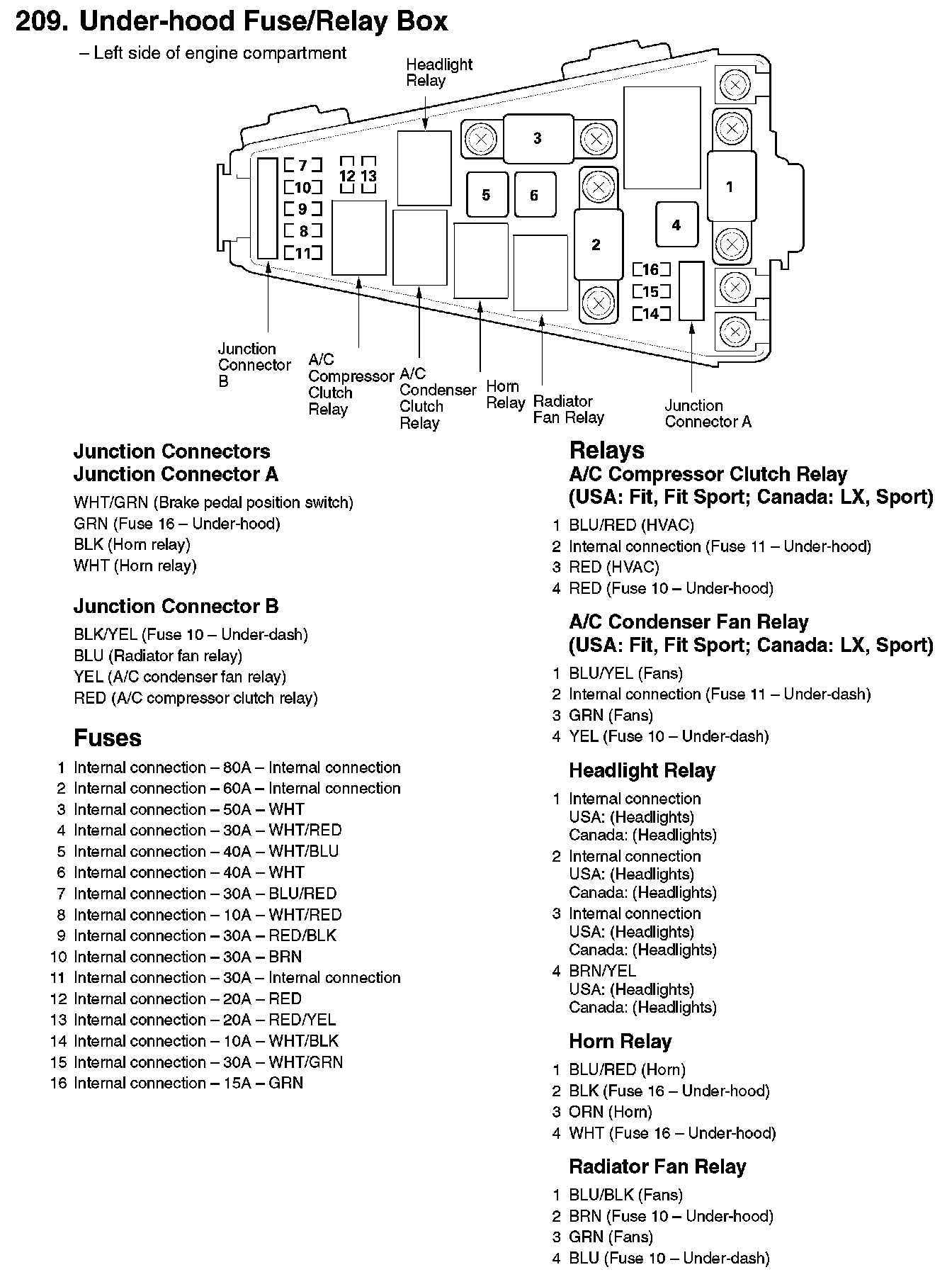

209. Under-hood Fuse/Relay Box:
