Multiple Junction Connector

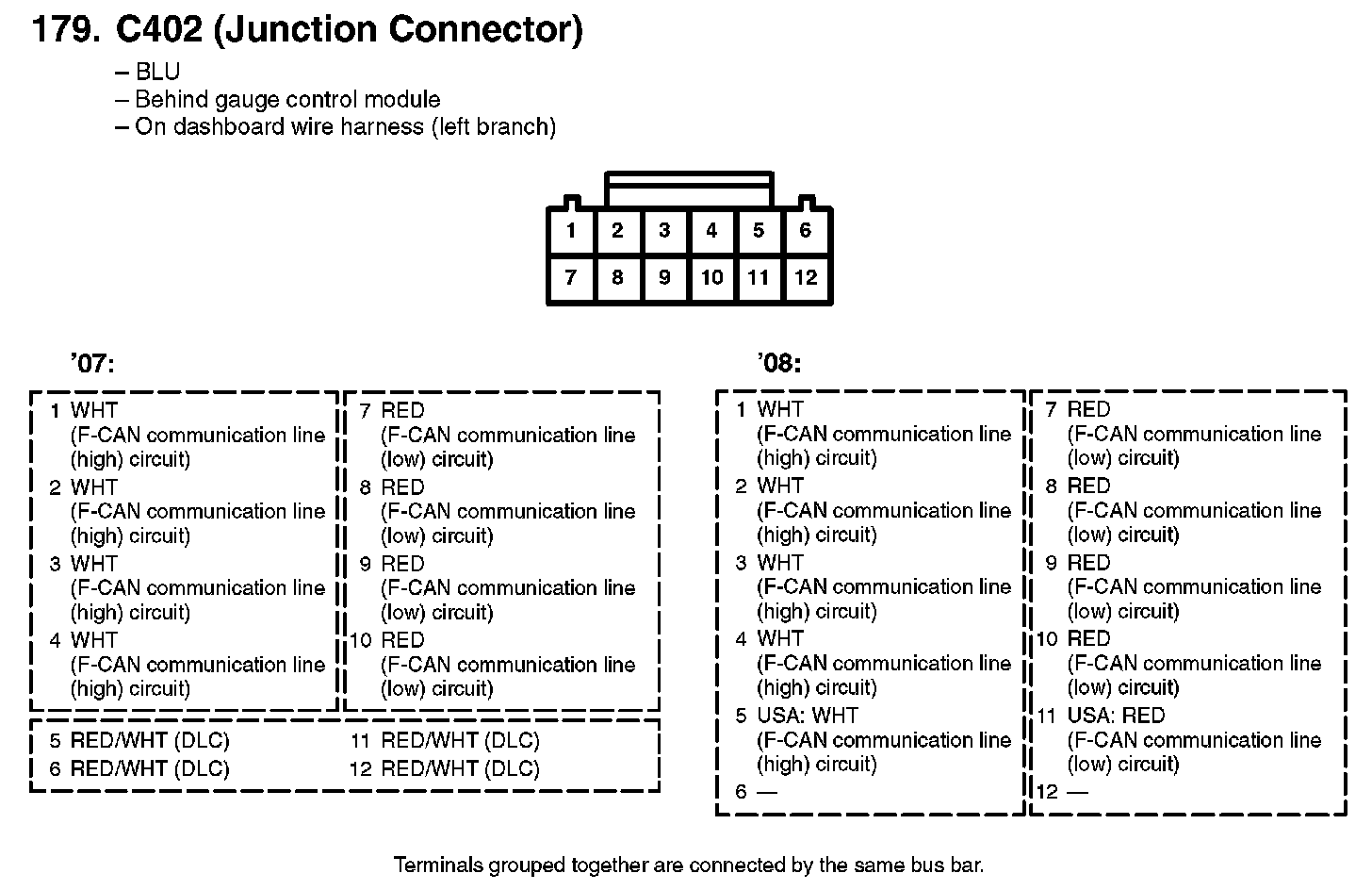

179. C402 (Junction Connector):

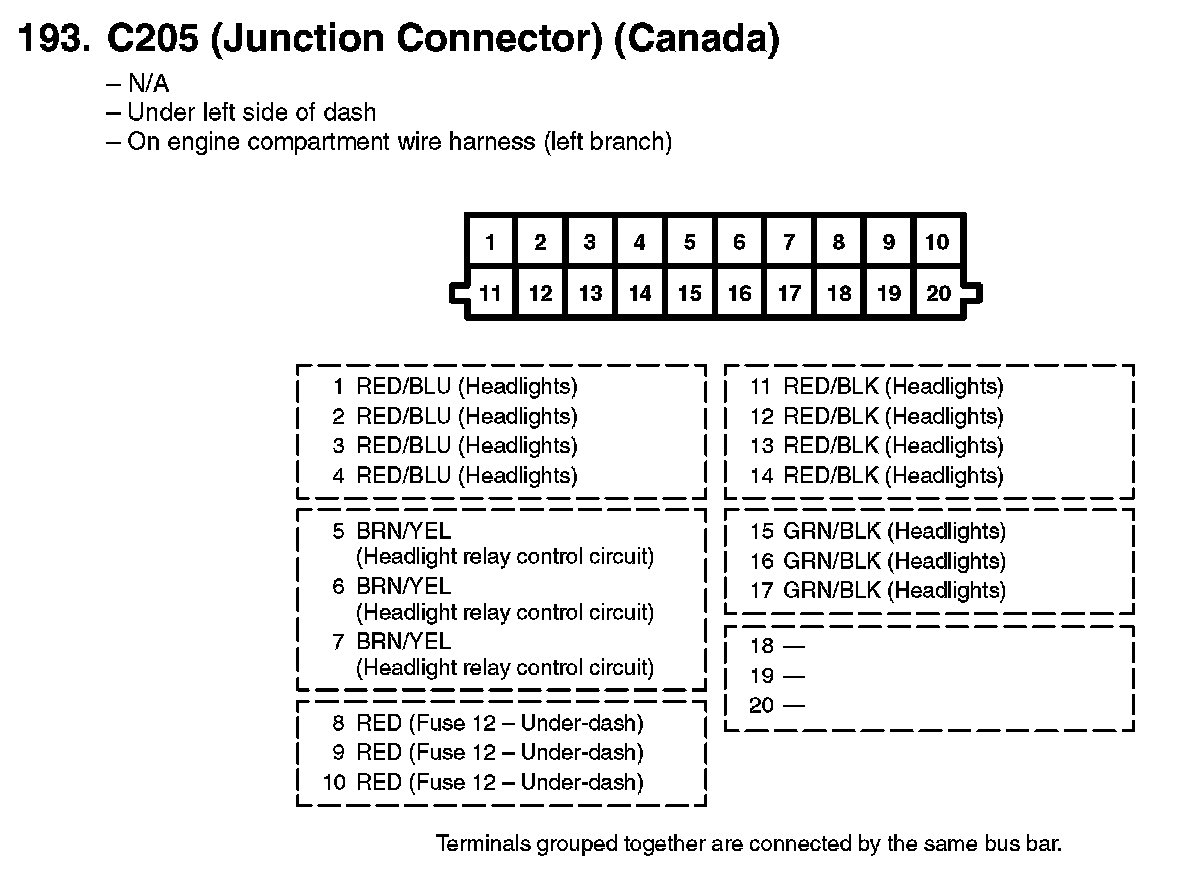

193. C205 (Junction Connector) (Canada):

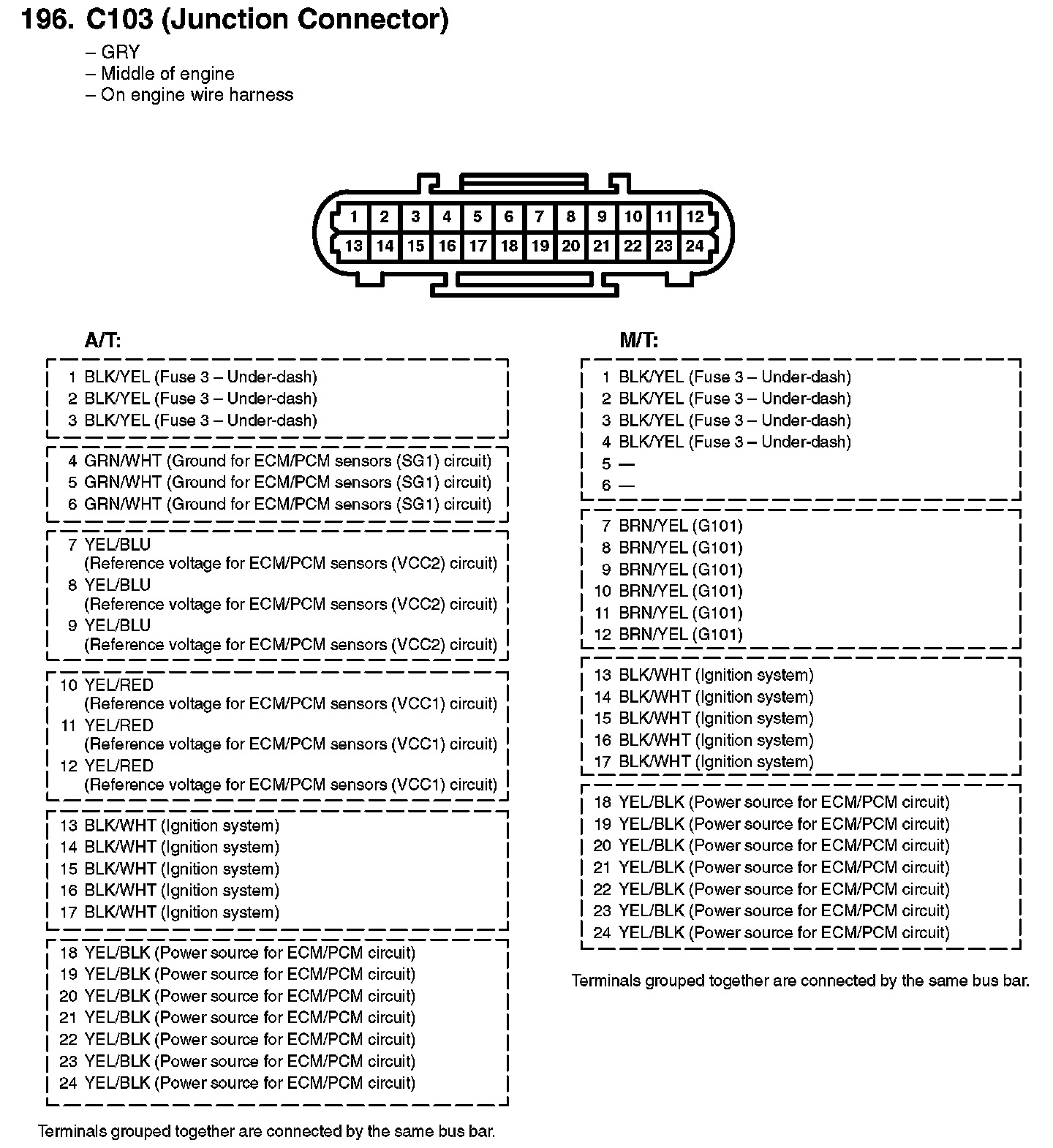

196. C103 (Junction Connector):
