Power Window Motor

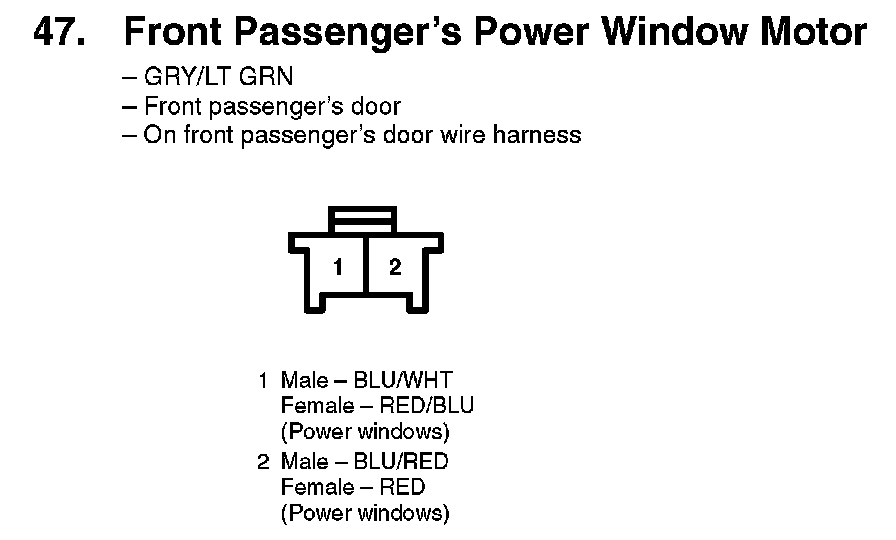

47. Front Passenger's Power Window Motor:



61. Left Rear Power Window Motor:



79. Right Rear Power Window Motor:



162. Driver's Power Window Motor:
