Mode Control Switch Test

Mode Control Switch Test

1. Remove the heater-A/C control panel.

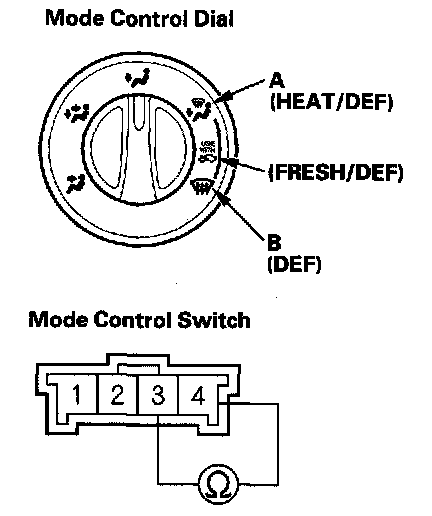

2. Check for continuity between No. 3 and No. 4 terminals while rotating the mode control dial from (A) to (B).
3. If there is no continuity, replace the heater-A/C control panel.
