Engine Oil: Service and Repair

Engine Oil Replacement
1. Warm up the engine.

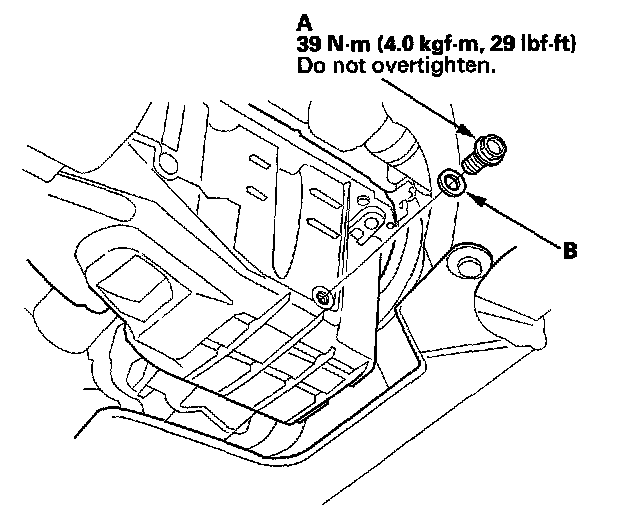

2. Remove the drain bolt (A), and drain the engine oil.





3. Reinstall the drain bolt with a new washer (B).
4. Refill with the recommended oil.

Capacity
At oil change: 3.4 L (3.6 US qt)
At oil change including filter: 3.6 L (3.8 US qt)
After engine overhaul: 4.2 L (4.4 US qt)

5. Run the engine for more than 3 minutes, then check for oil leakage.
