ECT Sensor 1 Replacement

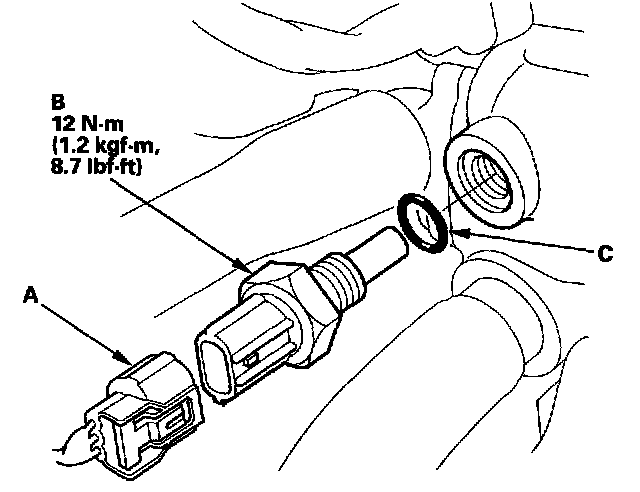

ECT Sensor 1 Replacement1. Remove the air cleaner.
2. Disconnect the ECT sensor 1 2P connector.
3. Remove the ECT sensor 1 (B).
4. Install the parts in the reverse order of removal with a new O-ring (C).
1. Remove the air cleaner.
2. Disconnect the ECT sensor 1 2P connector.
3. Remove the ECT sensor 1 (B).
4. Install the parts in the reverse order of removal with a new O-ring (C).
