Transmission Position Sensor/Switch: Locations

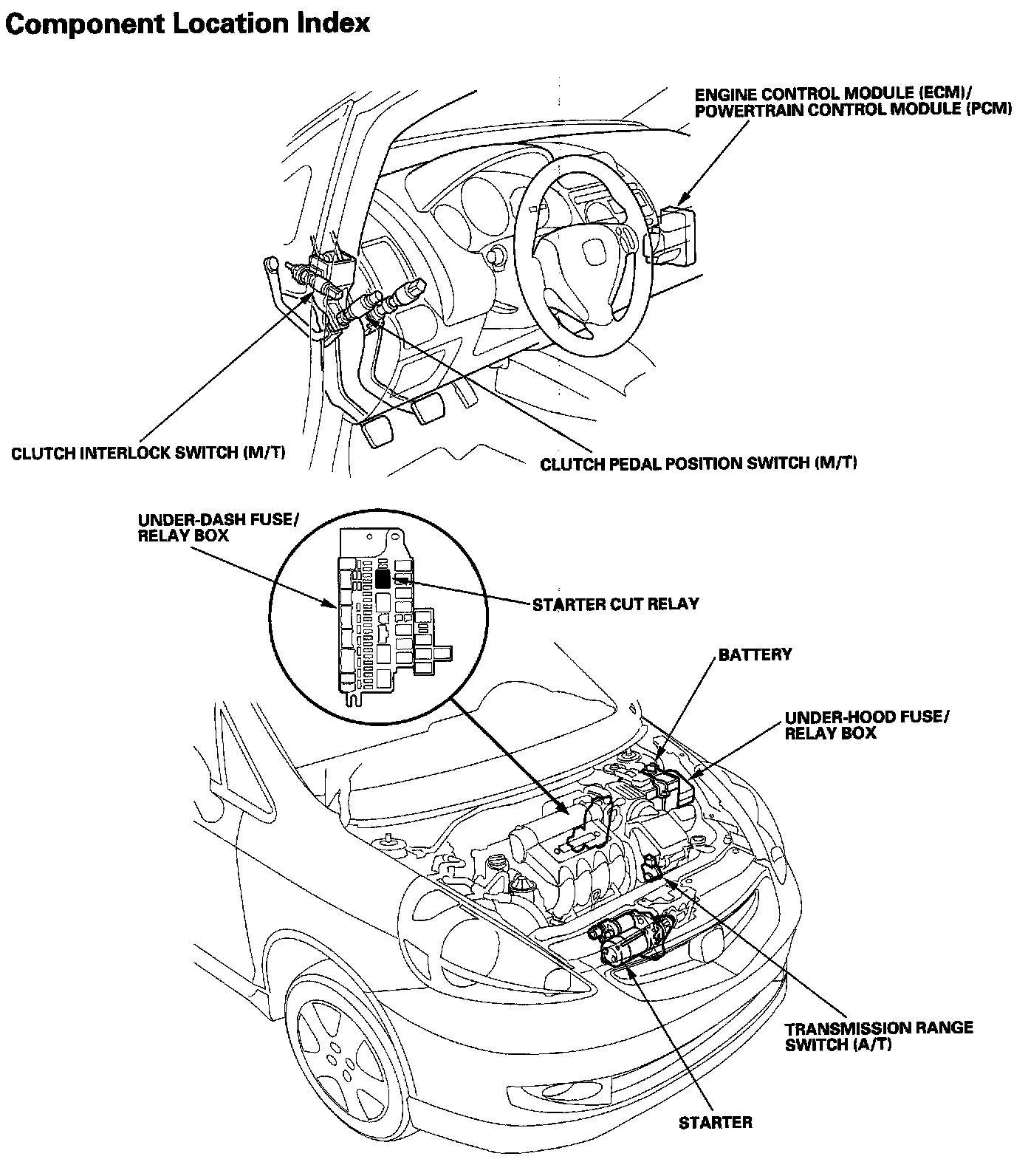

Starting System Component Location Index:

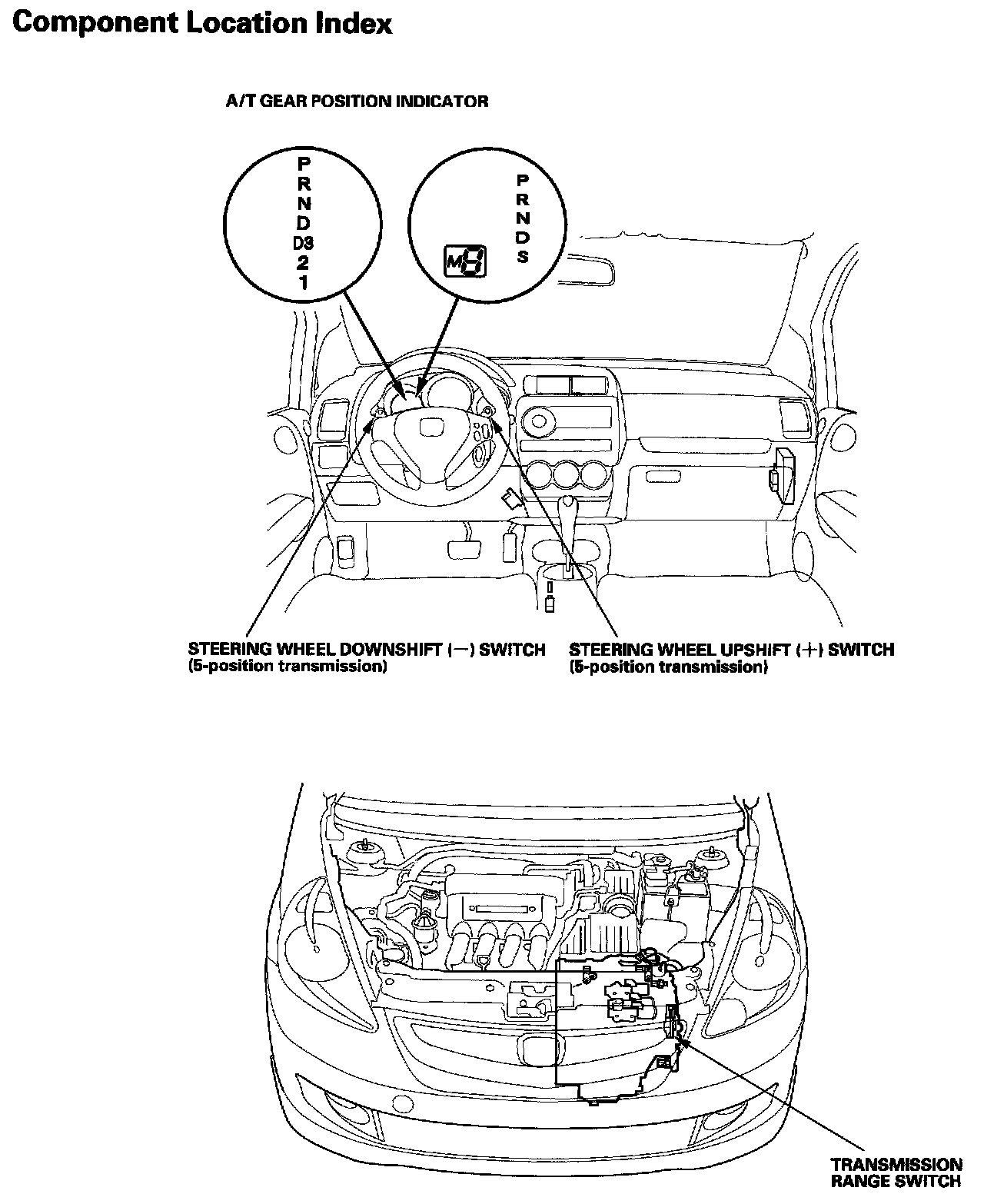

A/T Gear Position Indicator Component Location Index:

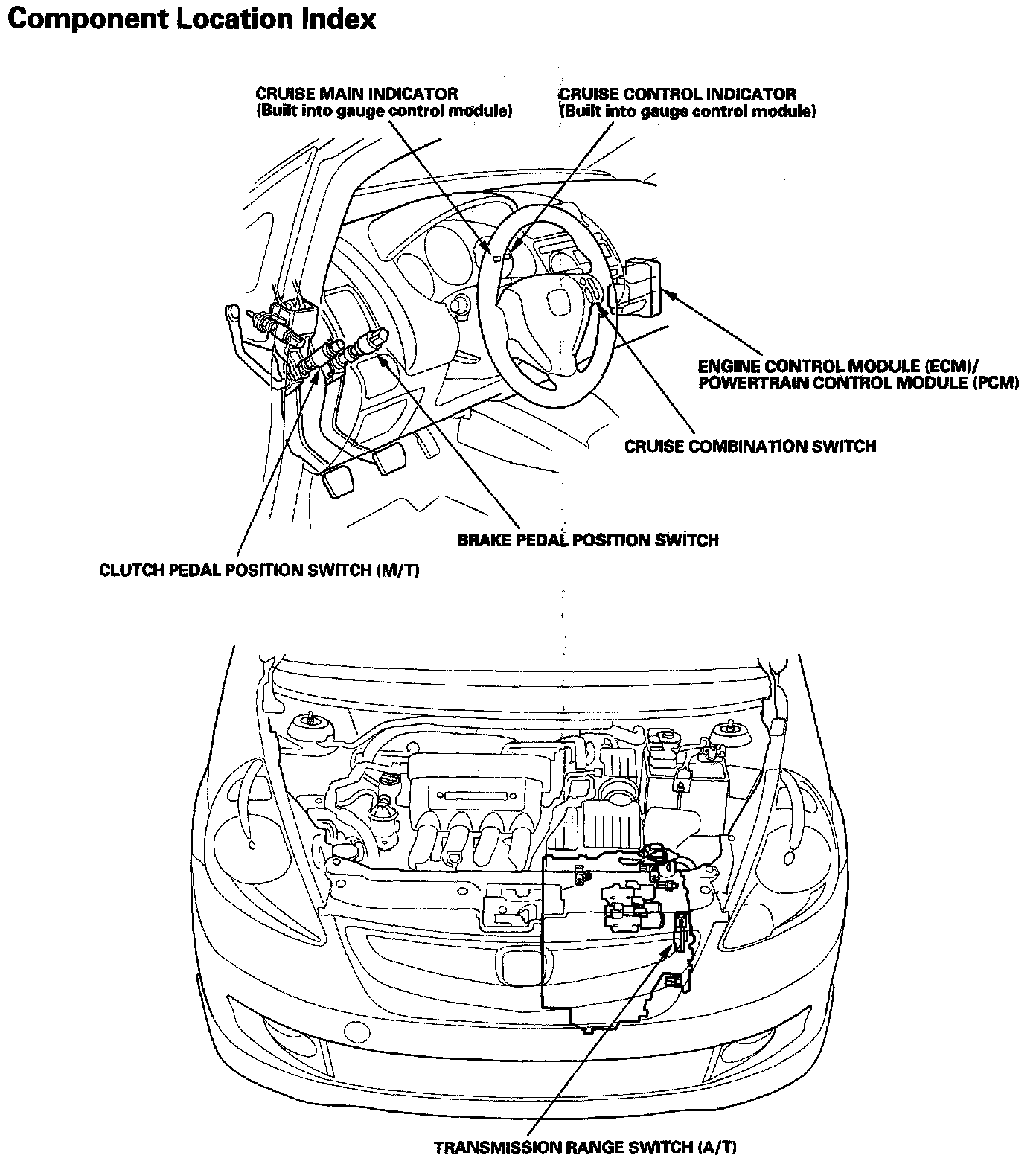

Cruise Control Component Location Index:

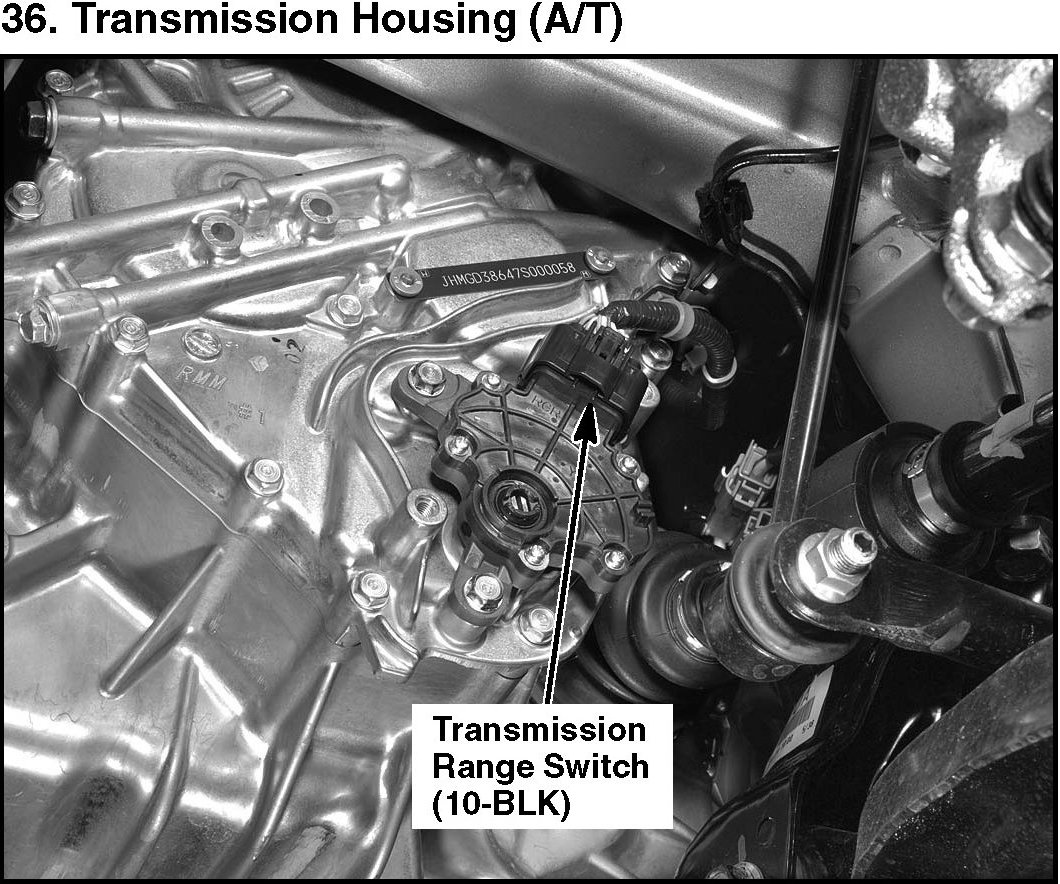

36. Transmission Housing (A/T):
