Vehicle Speed Sensor: Service and Repair

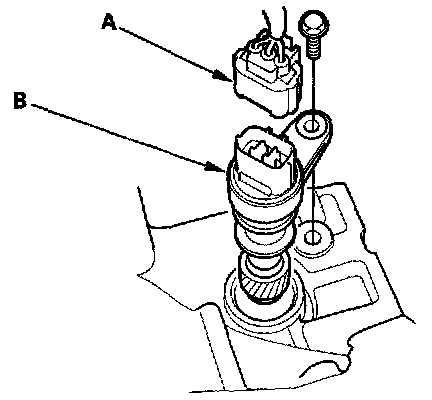

VSS ReplacementM/T
1. Remove the air cleaner.
2. Disconnect the VSS 3P connector (A).
3. Remove the VSS (B).
4. Install the parts in the reverse order removal with new O-rings.
M/T
1. Remove the air cleaner.
2. Disconnect the VSS 3P connector (A).
3. Remove the VSS (B).
4. Install the parts in the reverse order removal with new O-rings.
