Alignment

Wheel Alignment
Caster angle 3° 45' ± 1°

Camber angle:
Front 0° 00' ± 1°
(Maximum difference between the front left and right side: 1° 00')
Rear -1° 30' ± 1°

Front toe-in 0 ± 3 mm (0 ± 0.12 in.)

Rear toe-in 2.5 ± 2.5 mm (0.10 ± 0.10 in.)

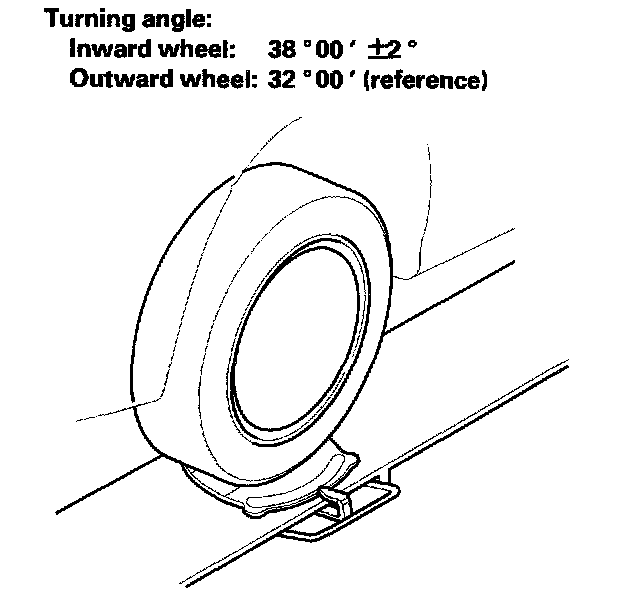

Turning Angle
