Service Specifications

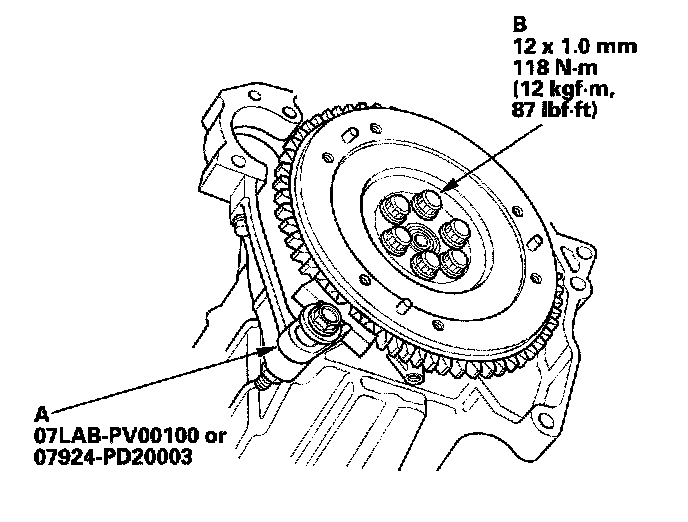

Flywheel





Torque in a crisscross pattern in several steps.

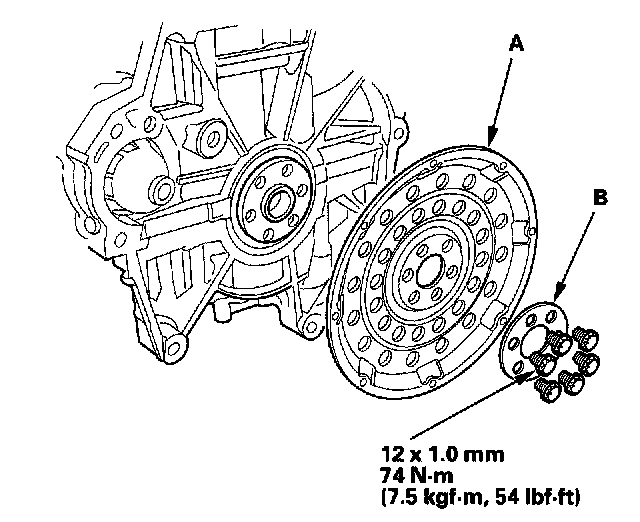

Drive Plate





Tighten the six bolts in a crisscross pattern in two or more steps.
