System Specifications

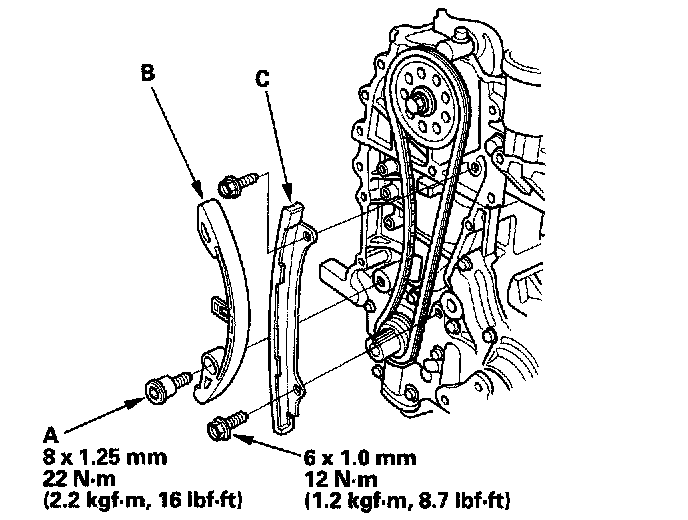

Chain Tensioner





Crankshaft Pulley

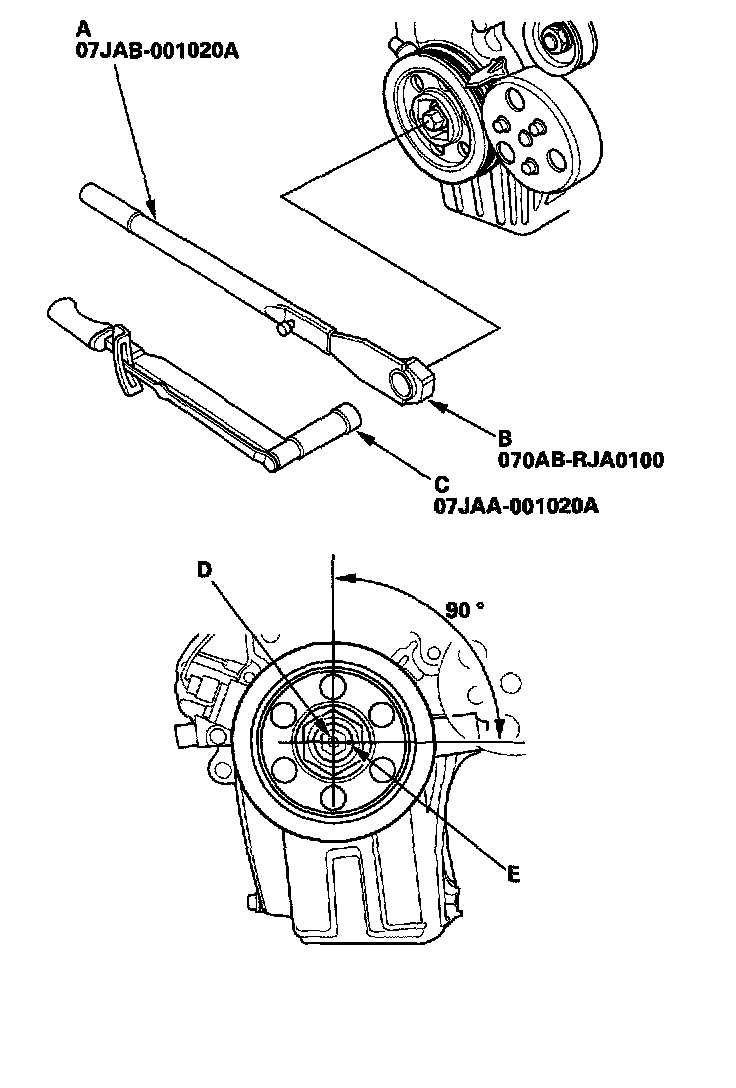

1. Tighten the bolt to 37 N.m (3.8 kgf.m, 27 lbf.ft) with a torque wrench and a heavy duty 19 mm socket.
Note: If the pulley bolt or crankshaft are new, tighten the bolt to 177 N.m (18.0 kgf.m, 130 lbf.ft) then remove the bolt and tighten to 37 N.m (3.8 kgf.m, 27 lbf.ft).
2. Mark the bolt head and the crankshaft pulley as shown, then tighten the bolt an additional 90°


Timing Cover
