Driver Position Memory System (DPMS)
>>
Circuit Diagram - Power Seat
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram - Power Seat

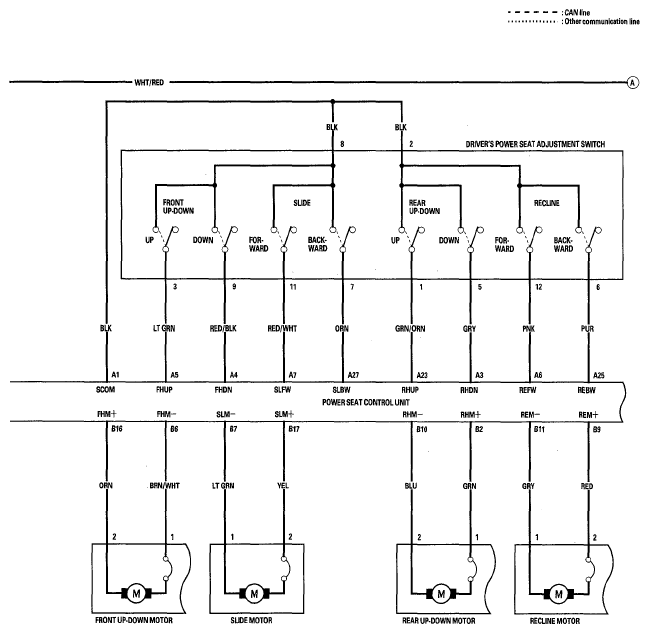

Fig 1: Power Seat - Circuit Diagram (1 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

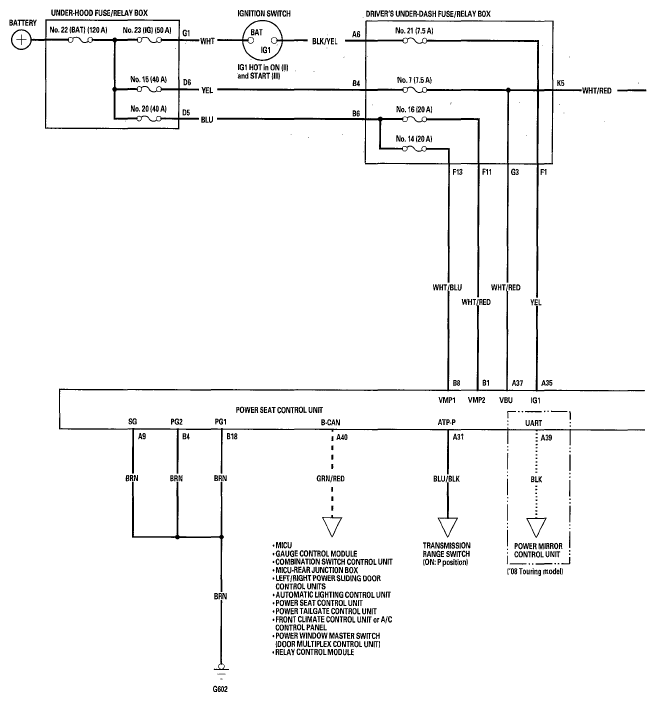

Fig 2: Power Seat - Circuit Diagram (2 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

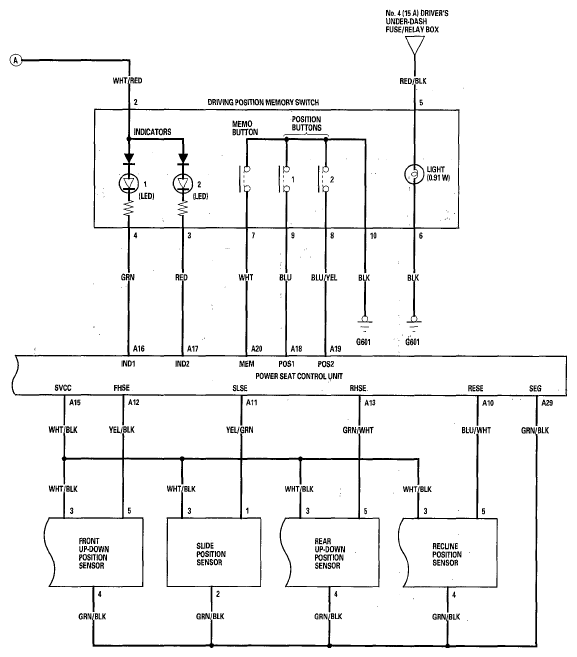

Fig 3: Power Seat - Circuit Diagram (3 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
