EVAP Vent Shut Float Replacement

Raise the vehicle on a lift.
Disconnect the fuel vapor hoses (A).

Fig 1: Identifying Fuel Vapor Hoses
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the left rear wheel.
Remove the fuel pipe cover.

Fig 2: Fuel Pipe Cover With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the fuel line clips (A).

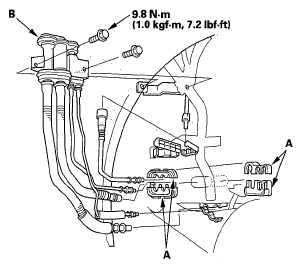

Fig 3: Fuel Line Clips And EVAP Vent Shut Float With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the EVAP vent shut float (B).
Install the parts in the reverse order of removal.
