Without Power Adjustable Pedals

  1. Disconnect the accelerator pedal position (APP) sensor 6P connector (A).

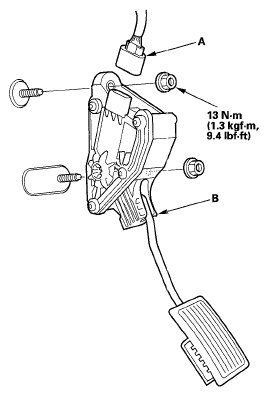

    Fig 1: APP Sensor 6P Connector And Accelerator Pedal Module With Torque Specification
    G05523947Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the accelerator pedal module (B).
    NOTE: The APP sensor is not available separately. Do not disassemble the accelerator pedal assembly.
  3. Install the parts in the reverse order of removal.
