Air Cleaner Removal/Installation

  1. Disconnect the MAF sensor or MAF/IAT sensor 5P connector (A).
  2. Remove the bolts (B) and harness clamps (C).

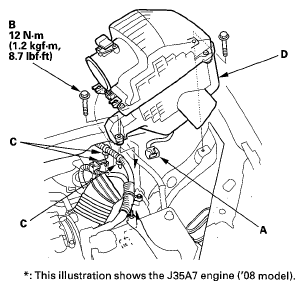

    Fig 1: Air Cleaner Bolts And Harness Clamps With Torque Specification
    G05524108Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the air cleaner housing (D).
  4. Install the parts in the reverse order of removal.
