CMP Sensor Replacement

Remove the timing belt; J35A6 engine (See TIMING BELT REMOVAL ), J35A7 engine ('07 model) (See TIMING BELT REMOVAL ), J35A7 engine ('08 model) (See TIMING BELT REMOVAL ).
Remove the front camshaft pulley (CMP sensor pulse plate) (A).

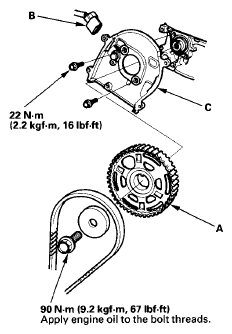

Fig 1: Front Camshaft Pulley (CMP Sensor Pulse Plate) And Back Cover With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the CMP sensor 3P connector (B), then remove the back cover (C).
Remove the CMP sensor (A) from the back cover.

Fig 2: CMP Sensor With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the parts in the reverse order of removal. Install the timing belt; J35A6 engine (See TIMING BELT INSTALLATION ), J35A7 engine ('07 model) (See TIMING BELT INSTALLATION ), J35A7 engine ('08 model) (See TIMING BELT INSTALLATION ).
Do the CKP pattern clear/CKP pattern learn procedure (see CKP PATTERN CLEAR/CKP PATTERN LEARN ).
