Navigation Module: Locations

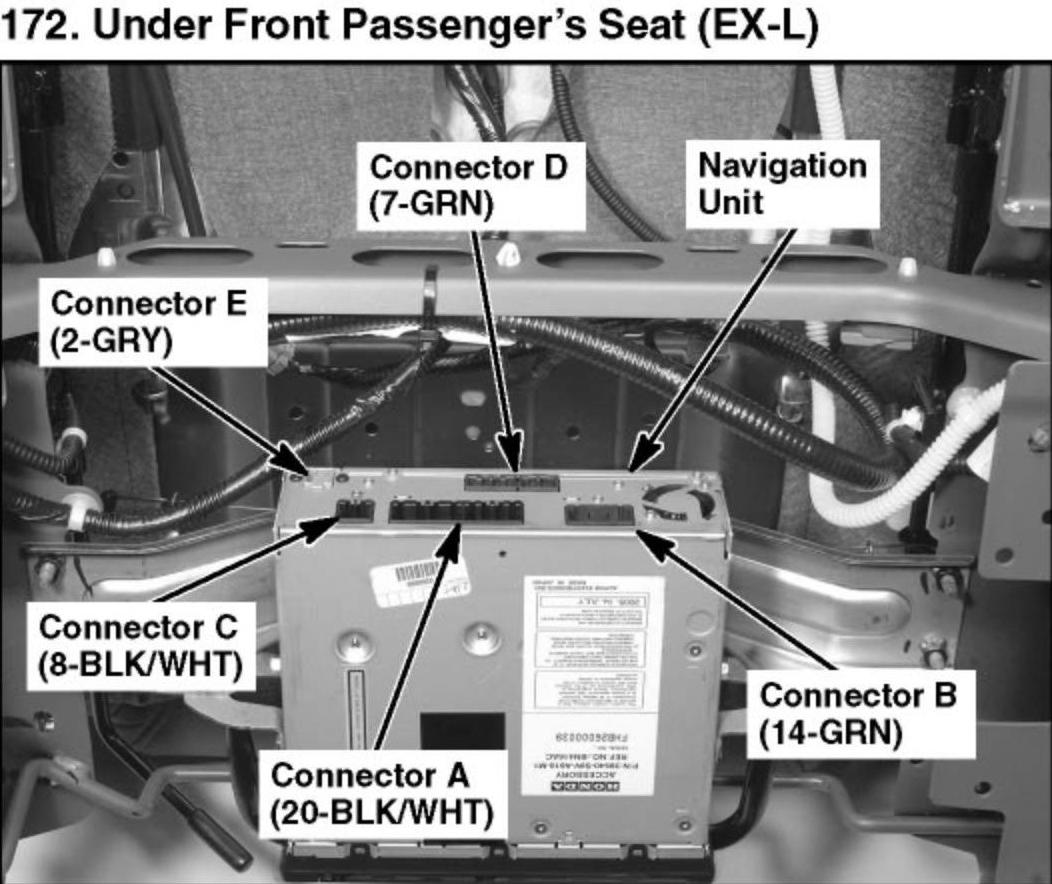

172. Under Front Passenger's Seat (EX-L):

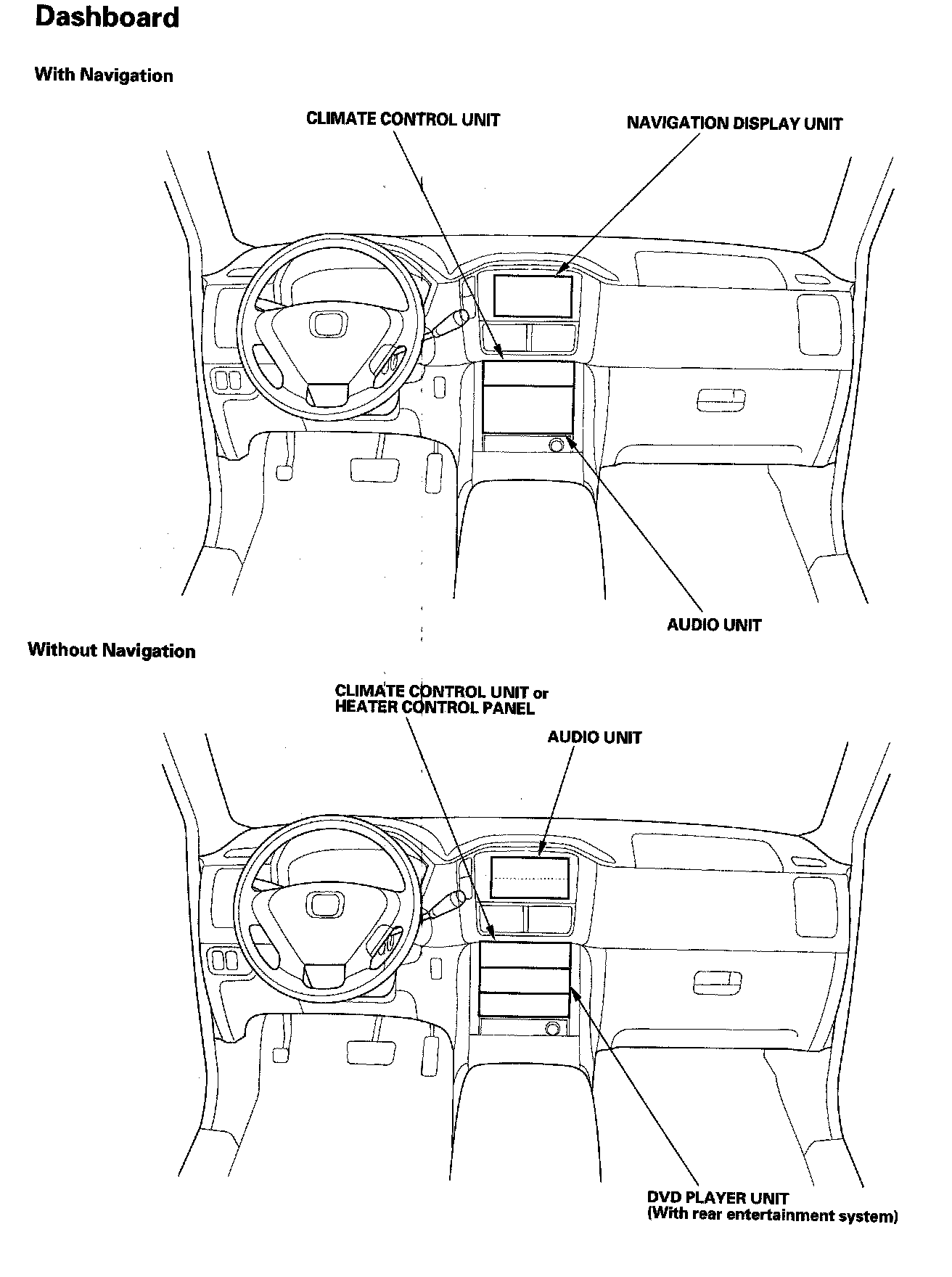

Relay And Control Unit Locations Dashboard:



Navigation System - Component Location Index:
