Alarm Module, (Vehicle Antitheft)

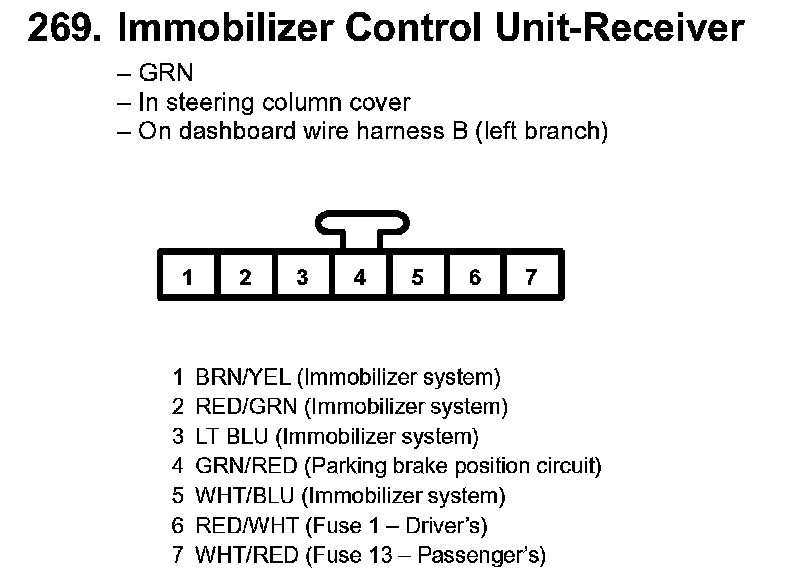

269. Immobilizer Control Unit-Receiver:

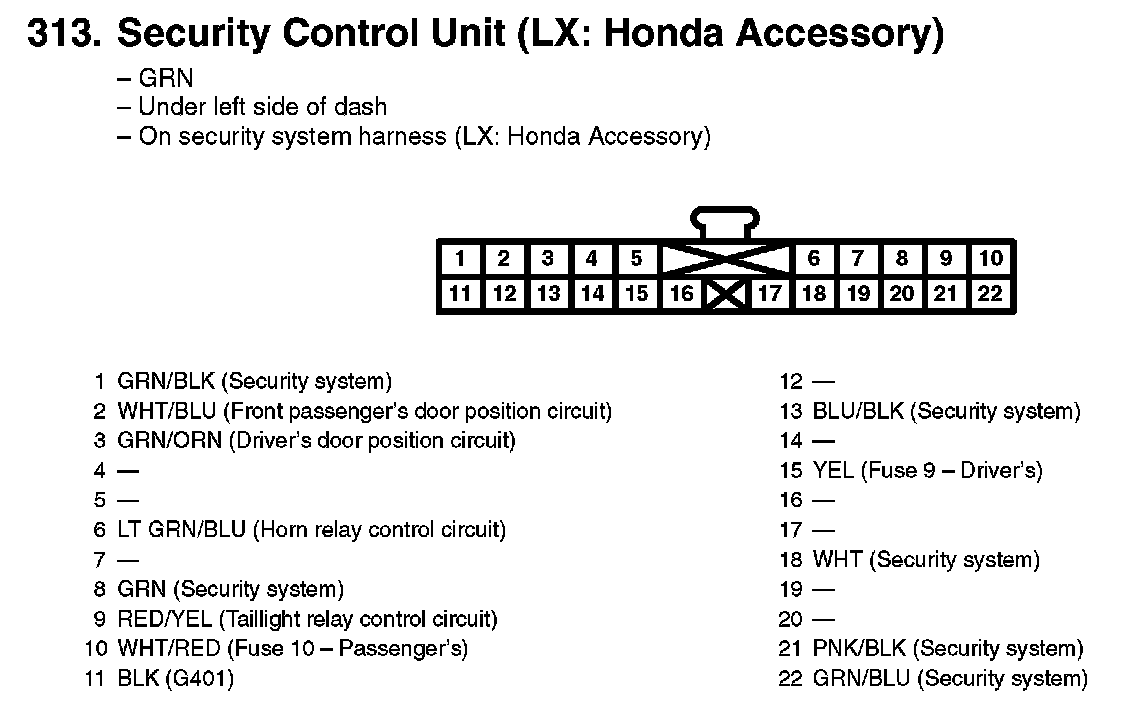

313. Security Control Unit (LX: Honda Accessory):
