Fuse

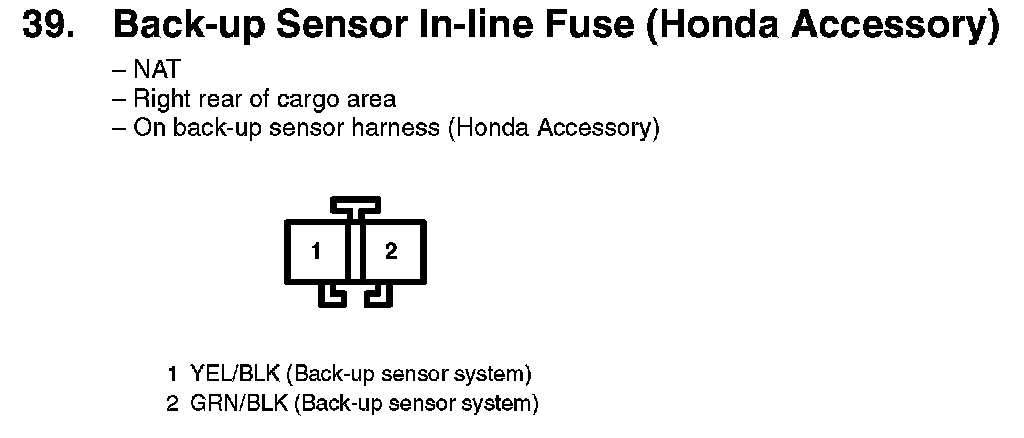

39. Back-up Sensor In-line Fuse (Honda Accessory):

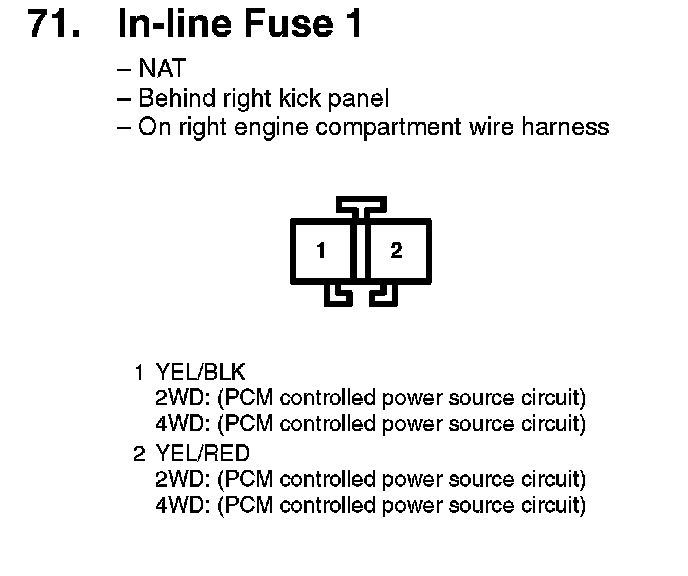

71. In-line Fuse1:



121. Trailer Lighting In-line Fuse I (Honda Accessory):

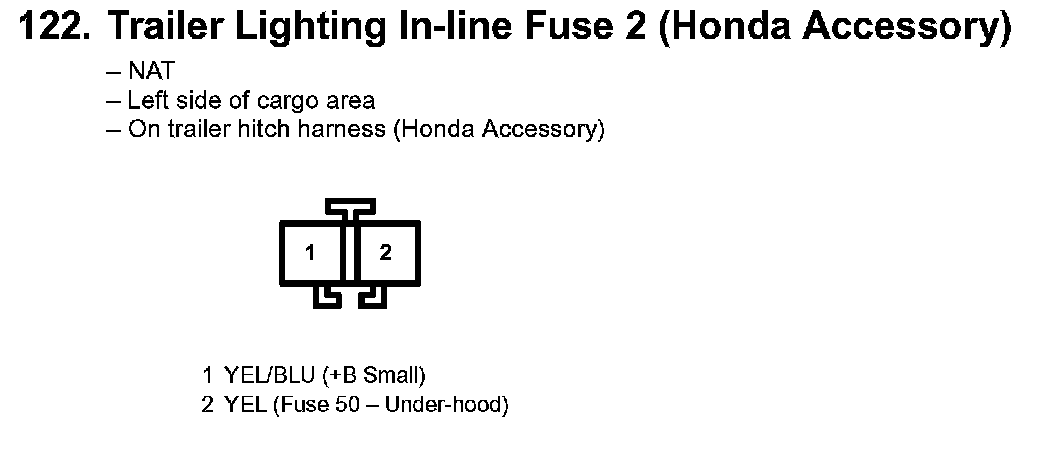

122. Trailer Lighting In-line Fuse 2 (Honda Accessory):
