Security Lamp/Indicator

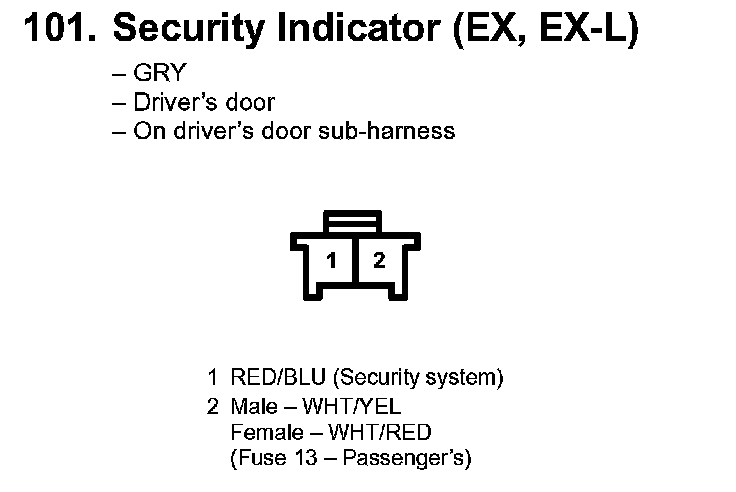

101. Security Indicator (EX, EX-L):

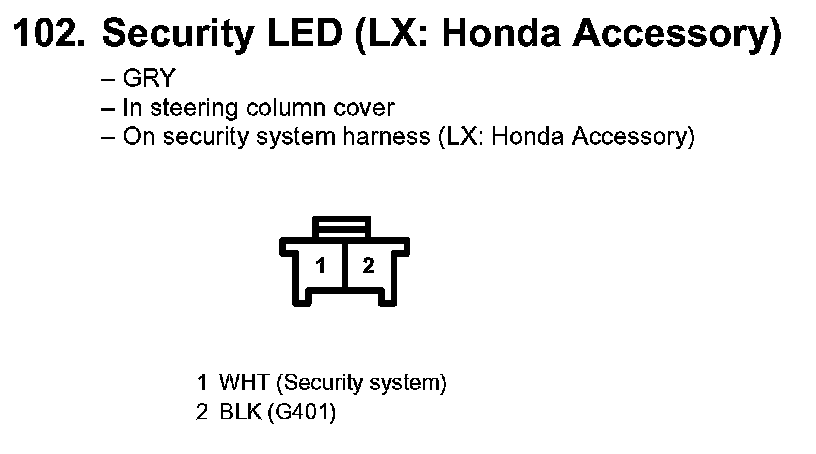

102. Security LED (LX: Honda Accessory):
