Wheel Speed Sensor

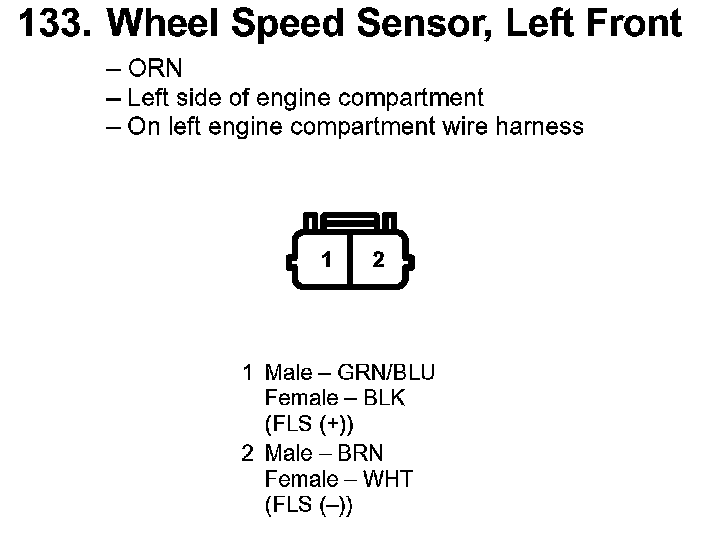

133. Wheel Speed Sensor, Left Front:

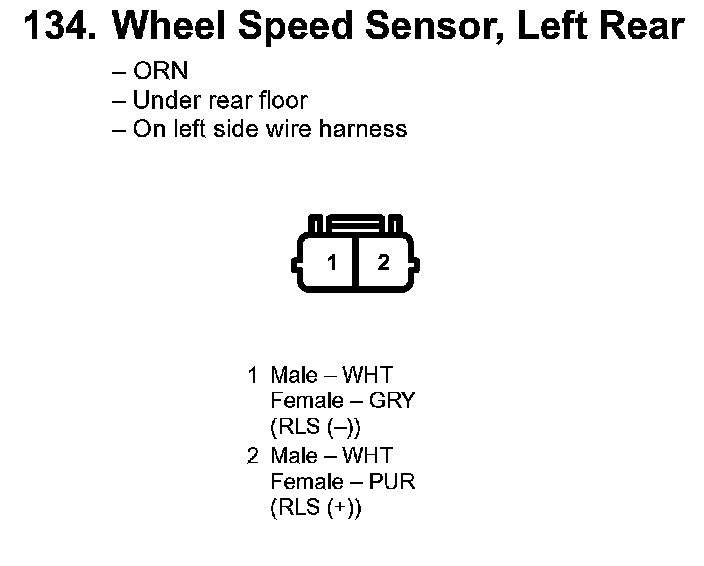

134. Wheel Speed Sensor, Left Rear:

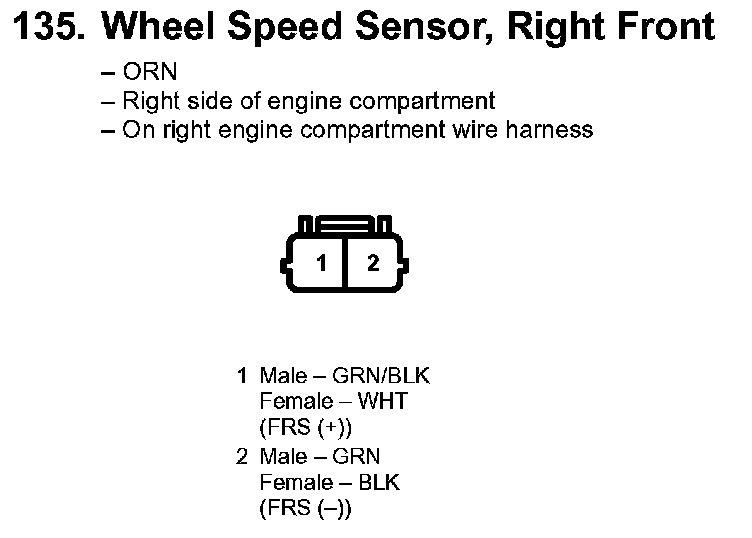

135. Wheel Speed Sensor, Right Front:

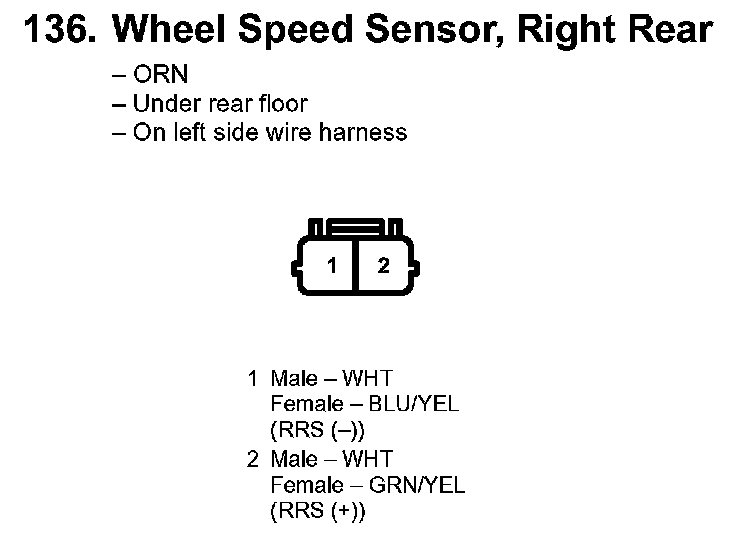

136. Wheel Speed Sensor, Right Rear:
