Accelerator Pedal Removal/ Installation

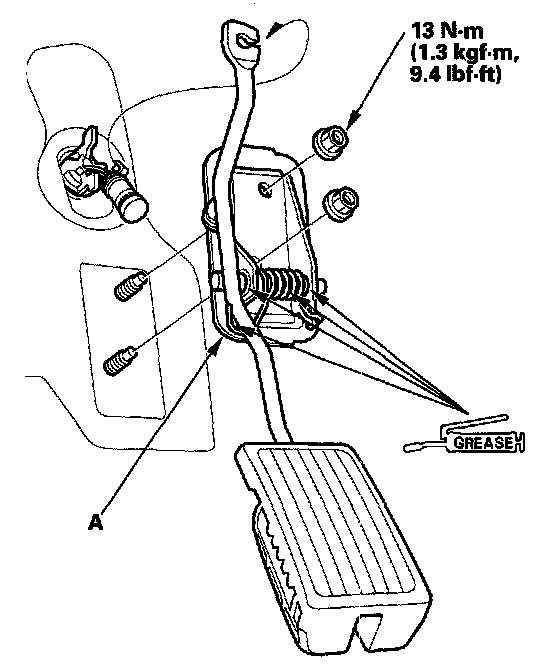

Accelerator Pedal Removal/Installation

1. Remove the throttle cable from the accelerator pedal.




2. Remove the accelerator pedal bracket (A).
3. Install the parts in the reverse order of removal.
