ECM/PCM Inputs and Outputs

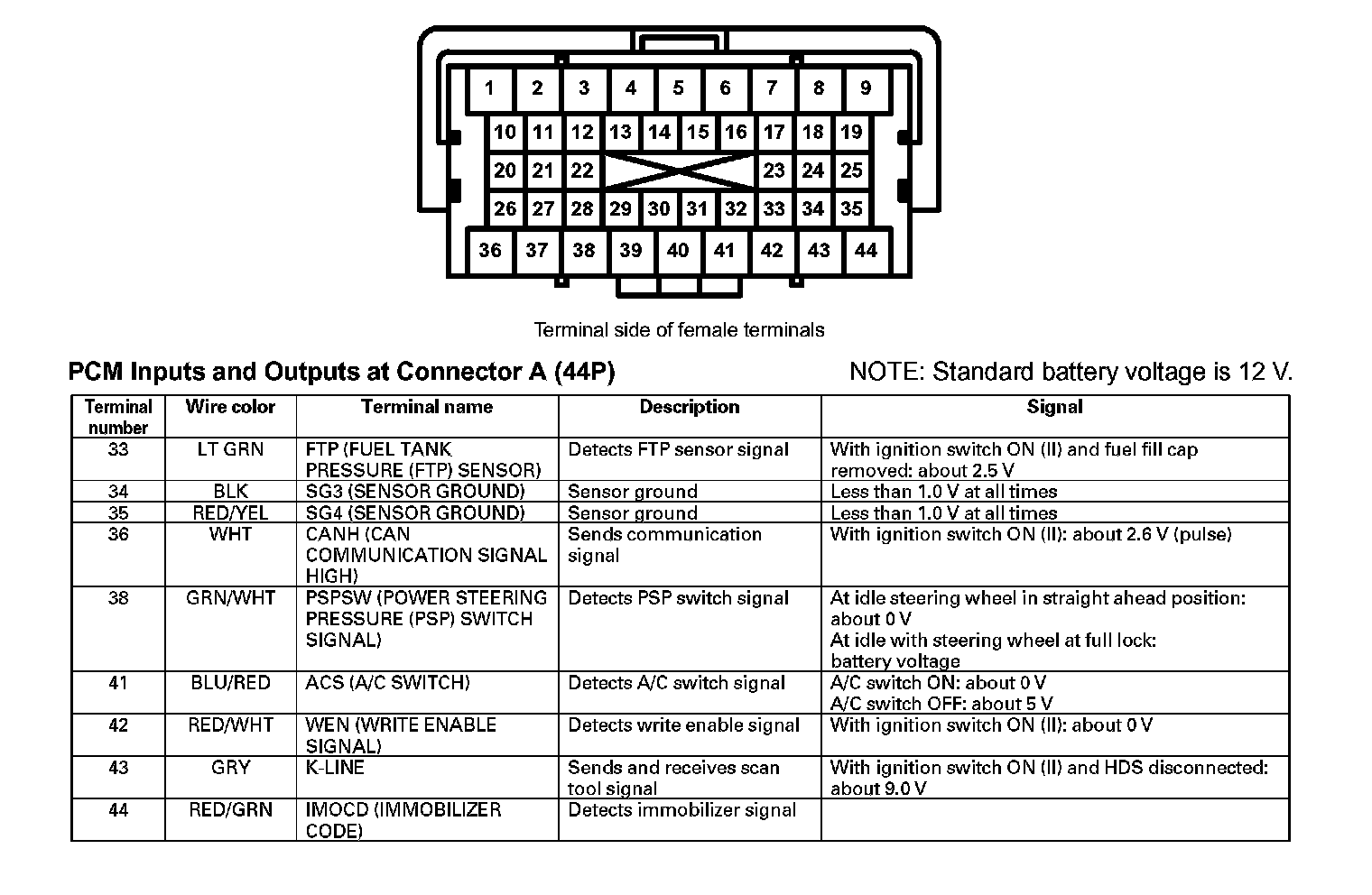

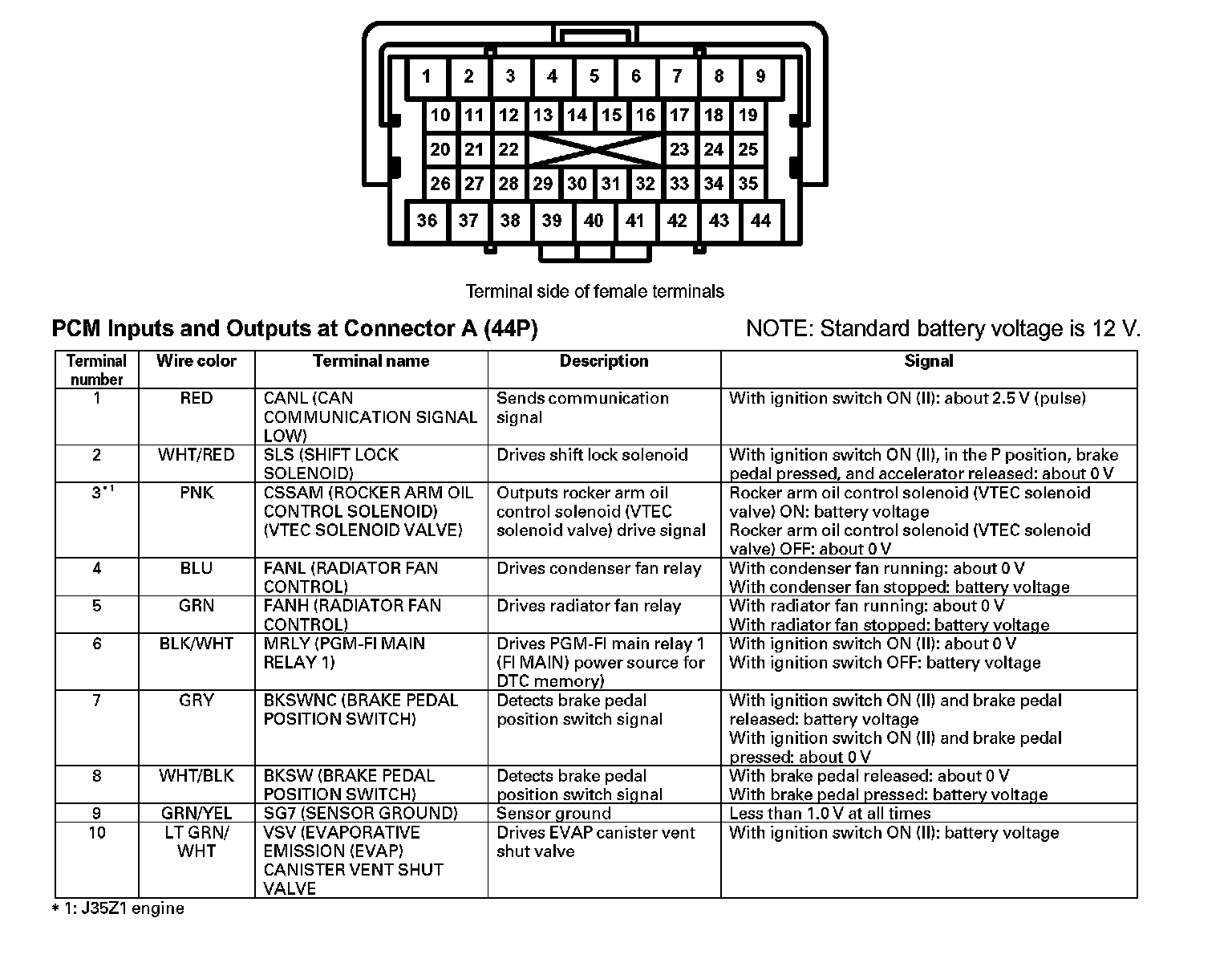

PCM Inputs And Outputs At Connector A (44P) Part 1:

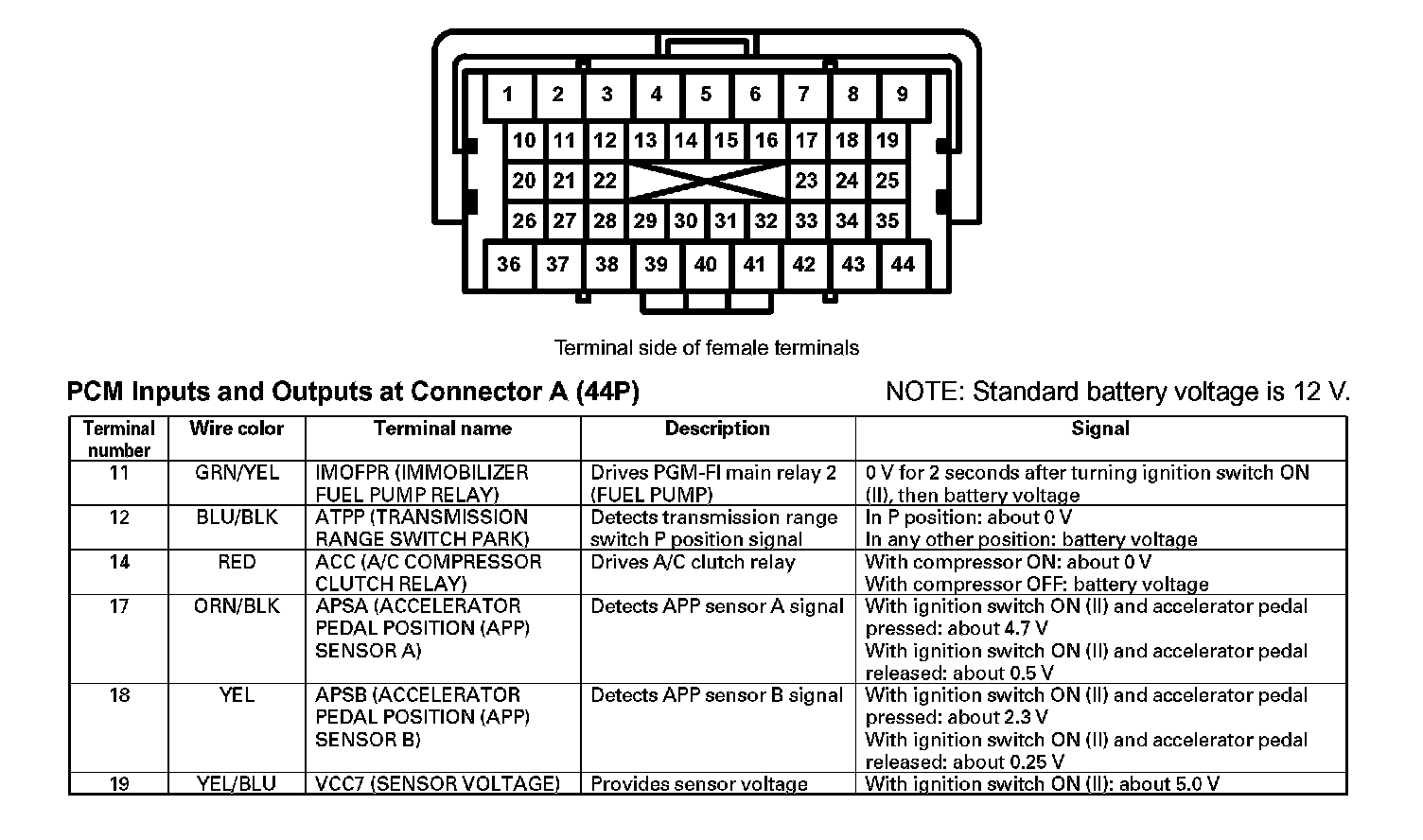

PCM Inputs And Outputs At Connector A (44P) Part 2:



PCM Inputs And Outputs At Connector A (44P) Part 3:



PCM Inputs And Outputs At Connector A (44P) Part 4:

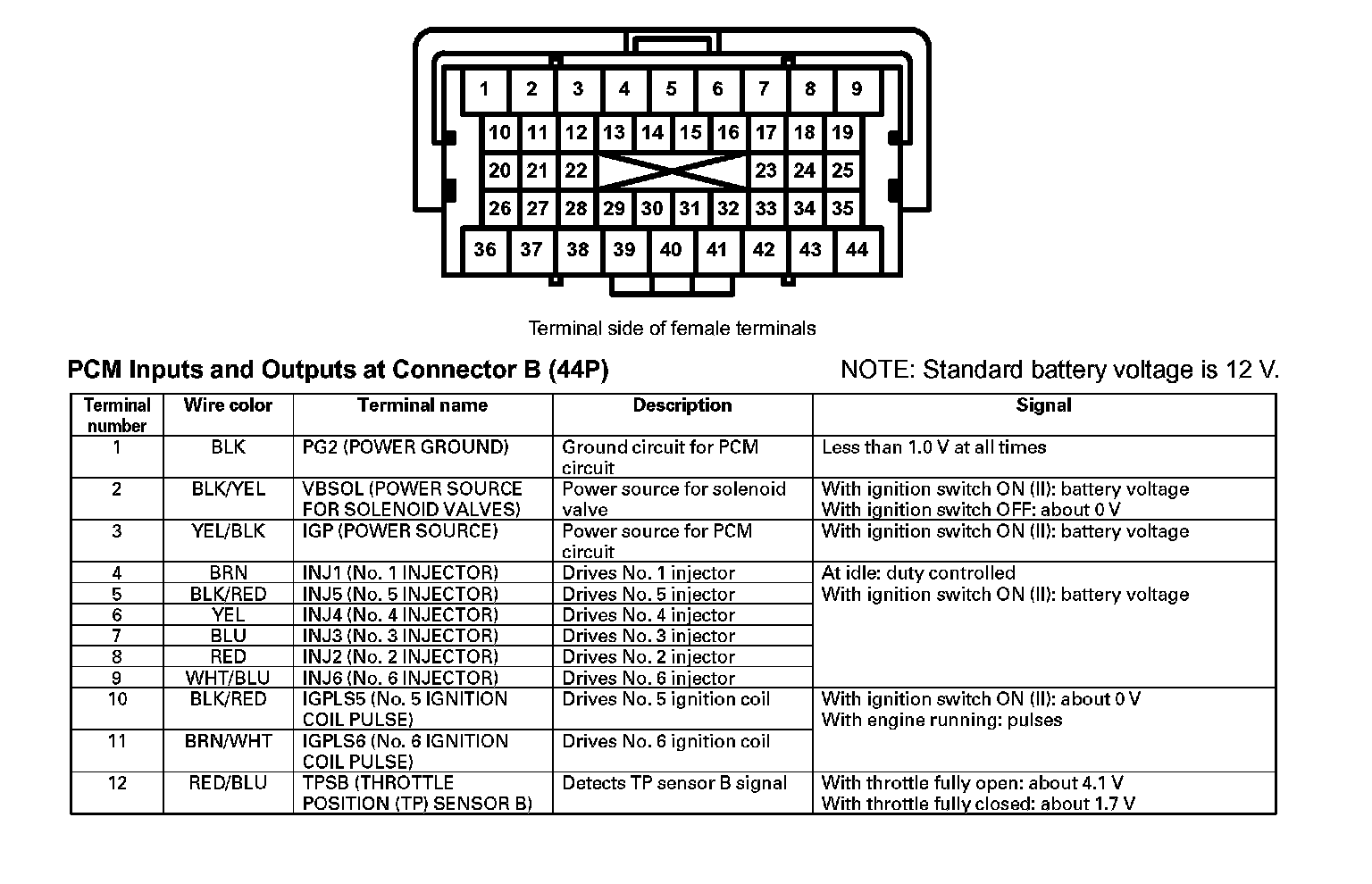

PCM Inputs And Outputs At Connector B (44P) Part 1:

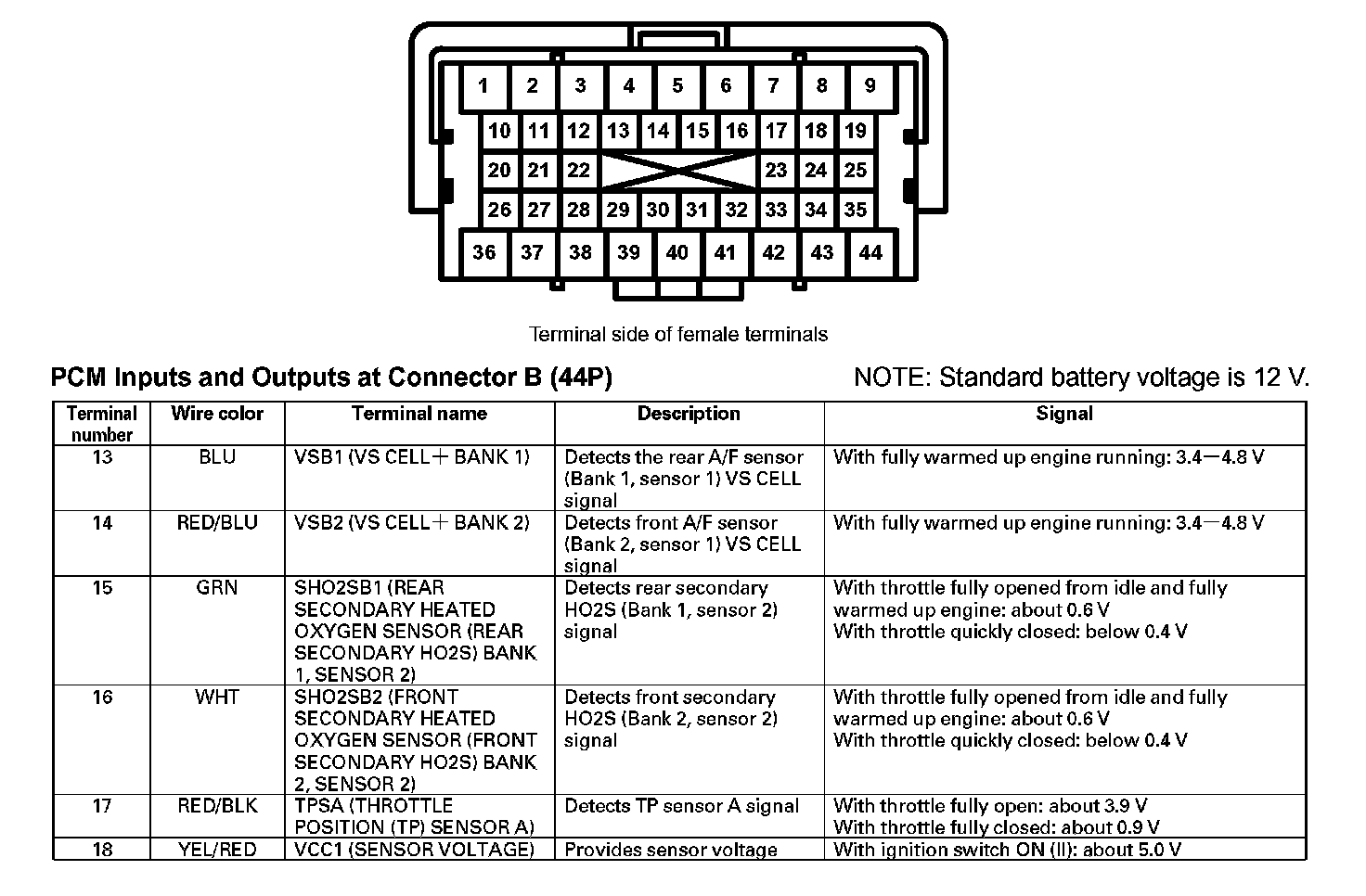

PCM Inputs And Outputs At Connector B (44P) Part 2:

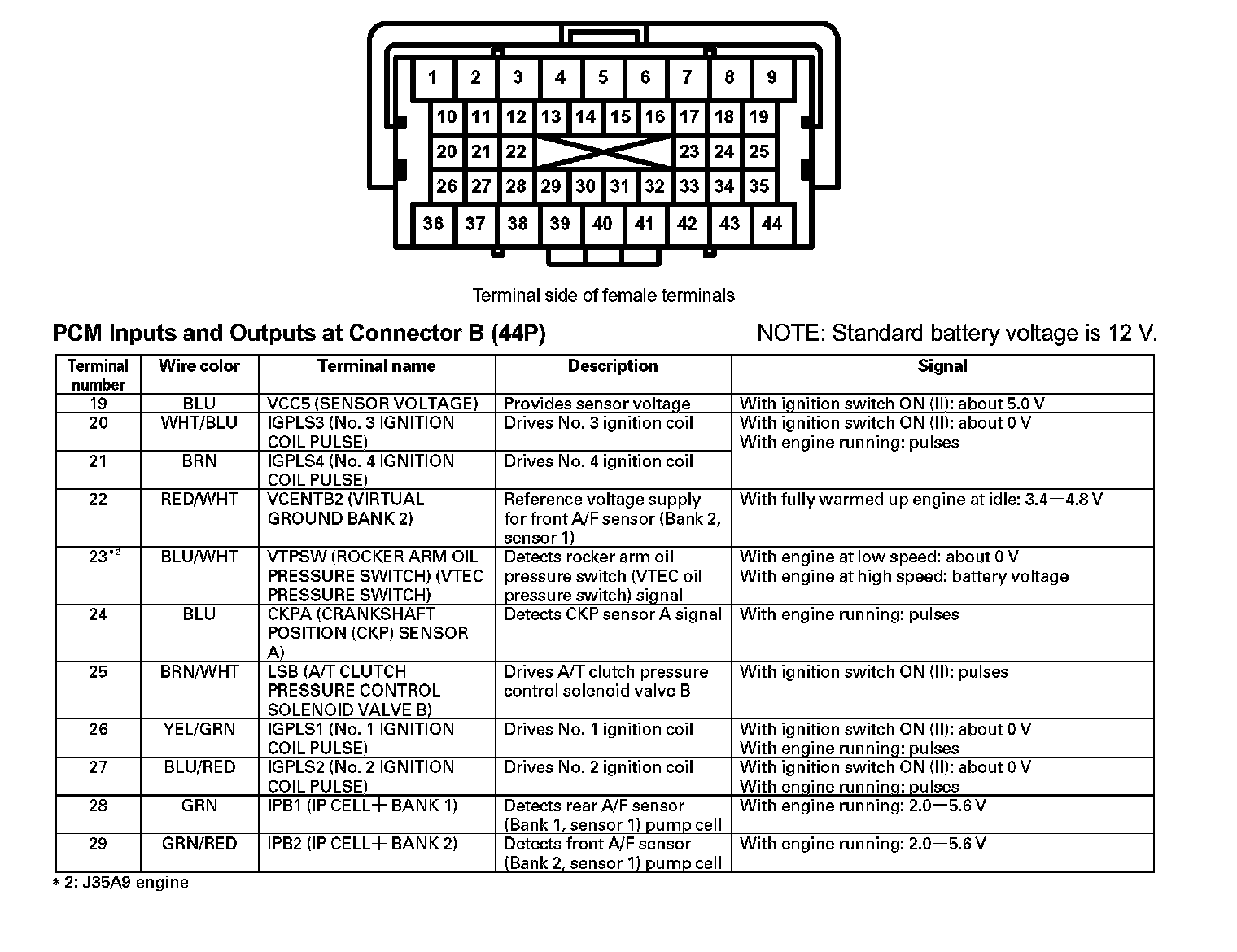

PCM Inputs And Outputs At Connector B (44P) Part 3:

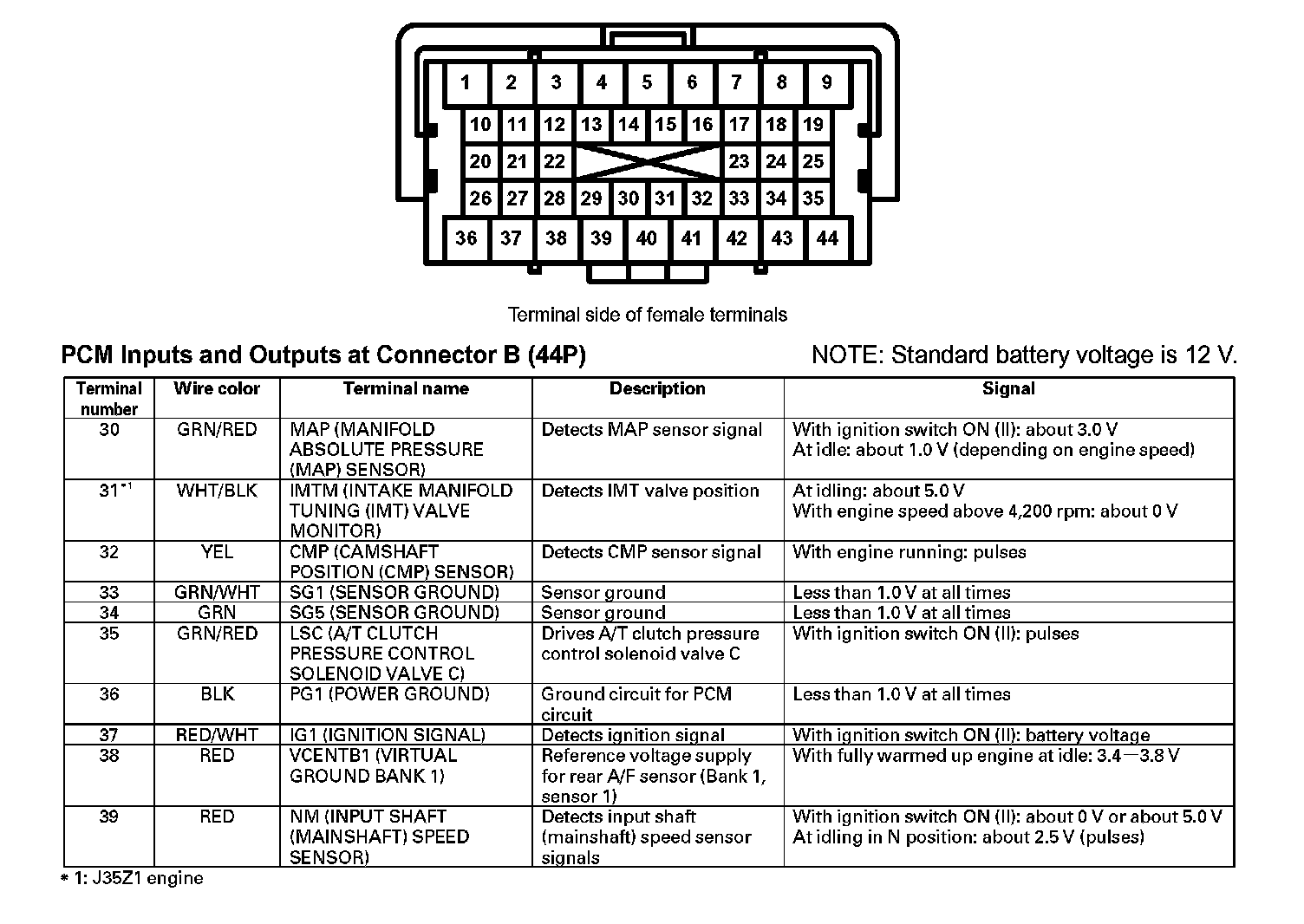

PCM Inputs And Outputs At Connector B (44P) Part 4:

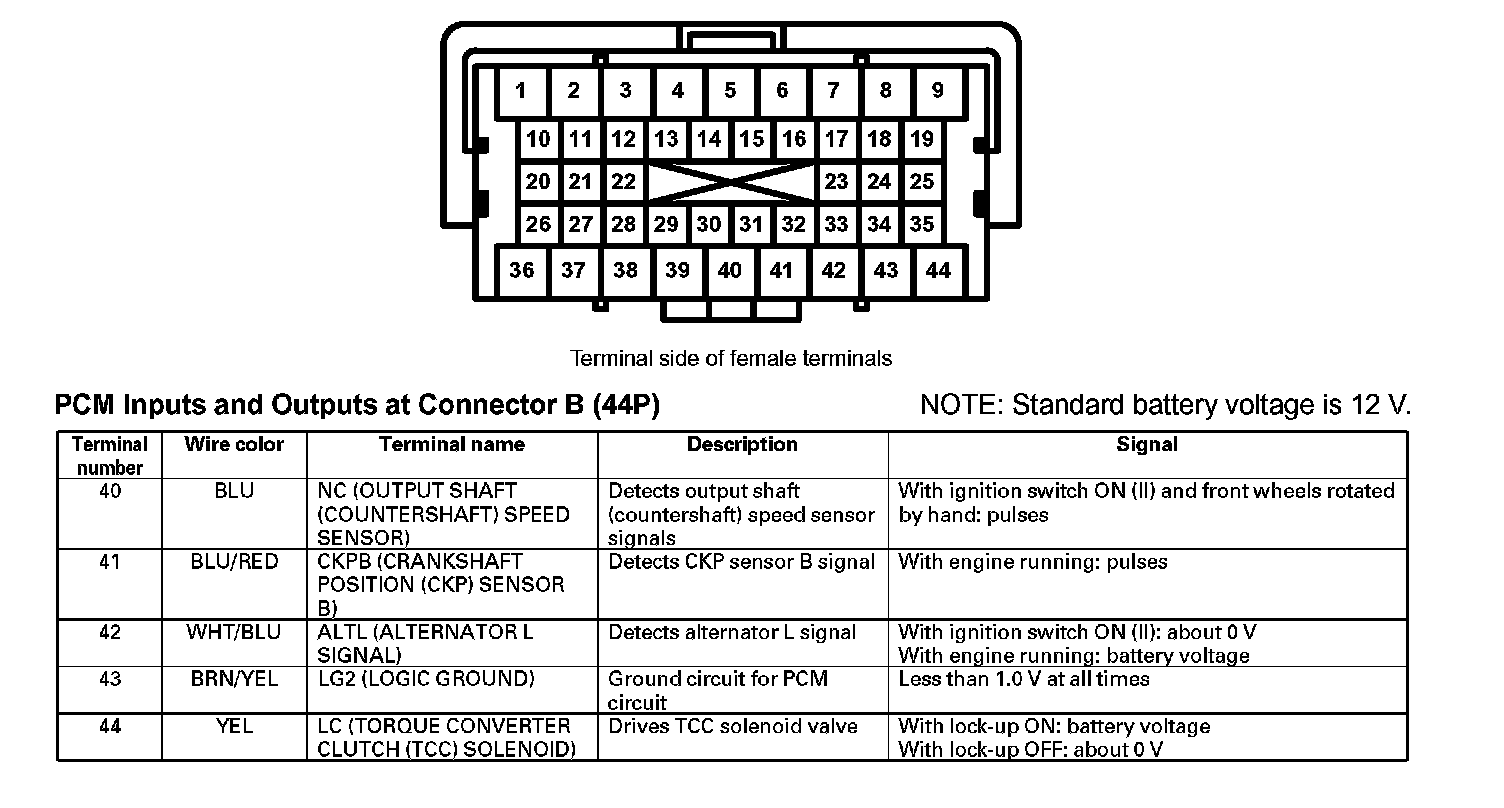

PCM Inputs And Outputs At Connector B (44P) Part 5:

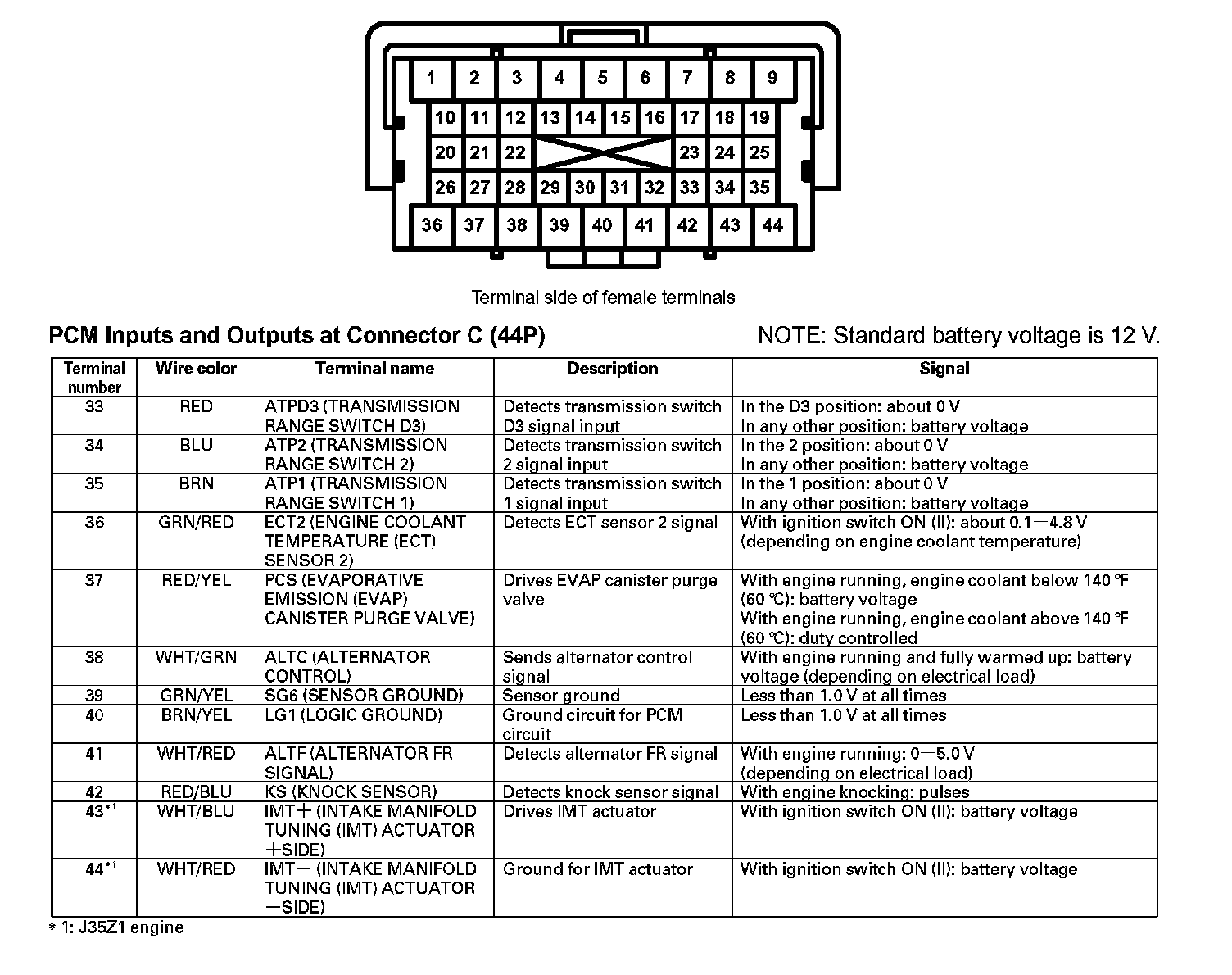

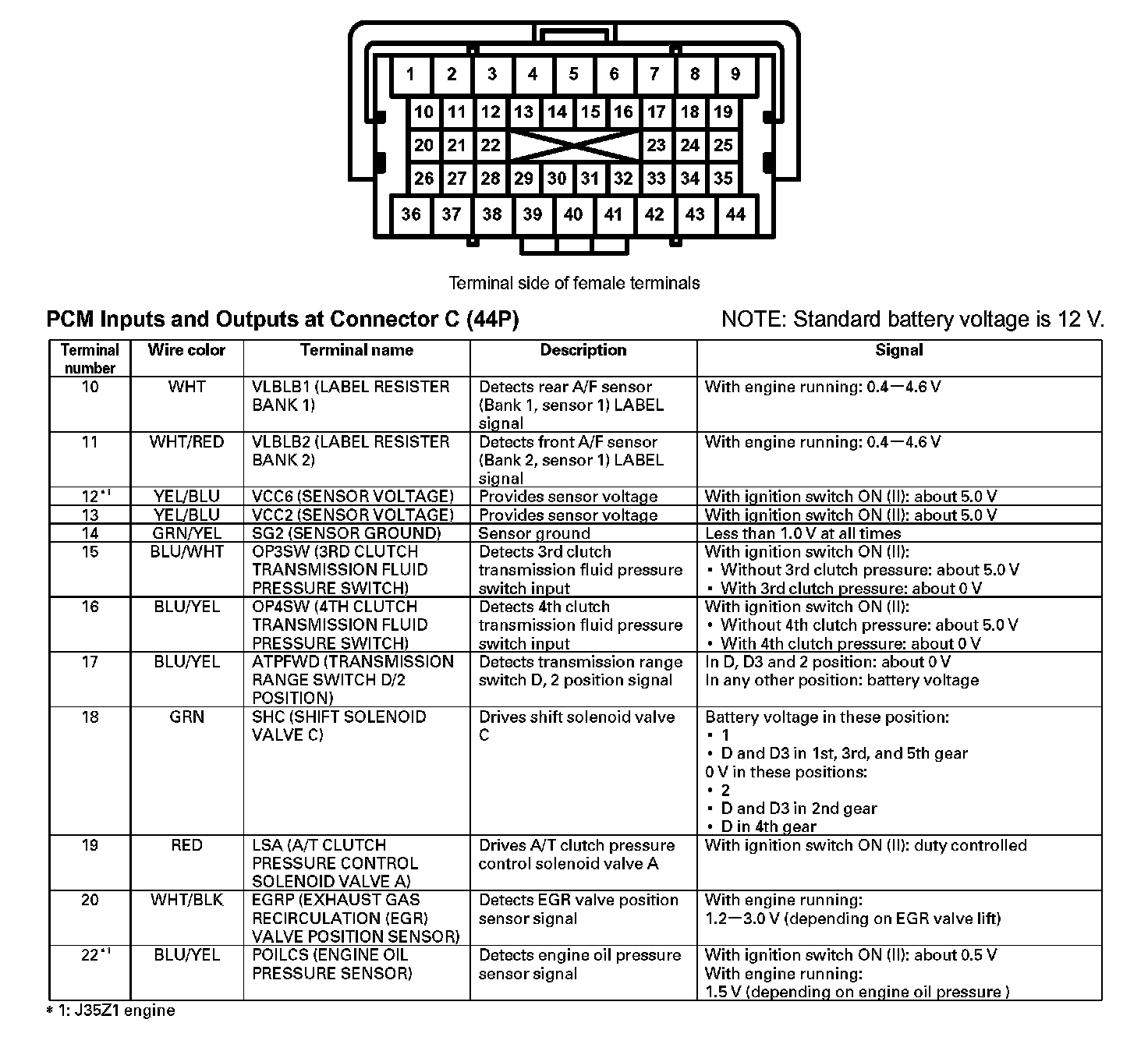

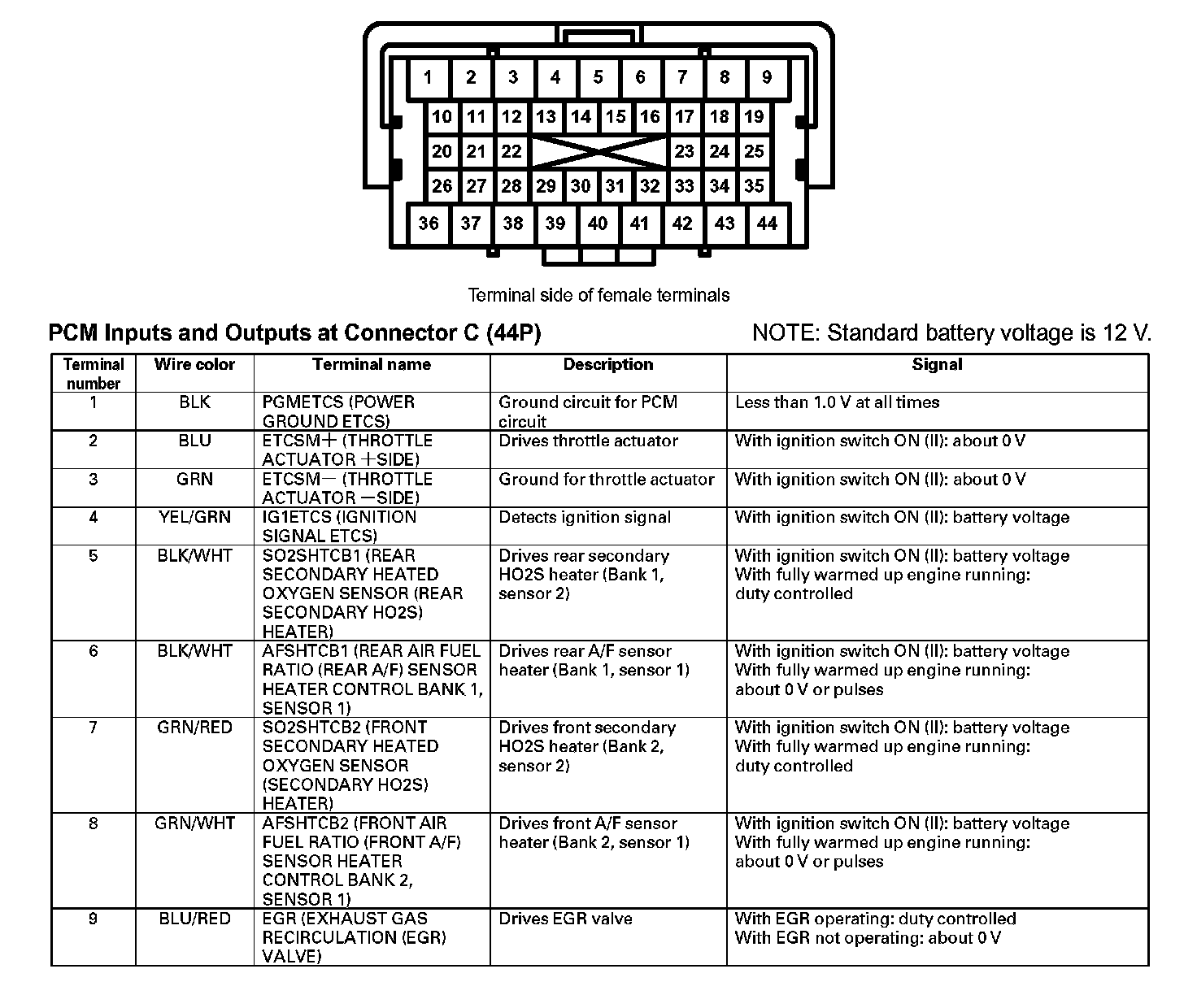

PCM Inputs And Outputs At Connector C (44P) Part 1:

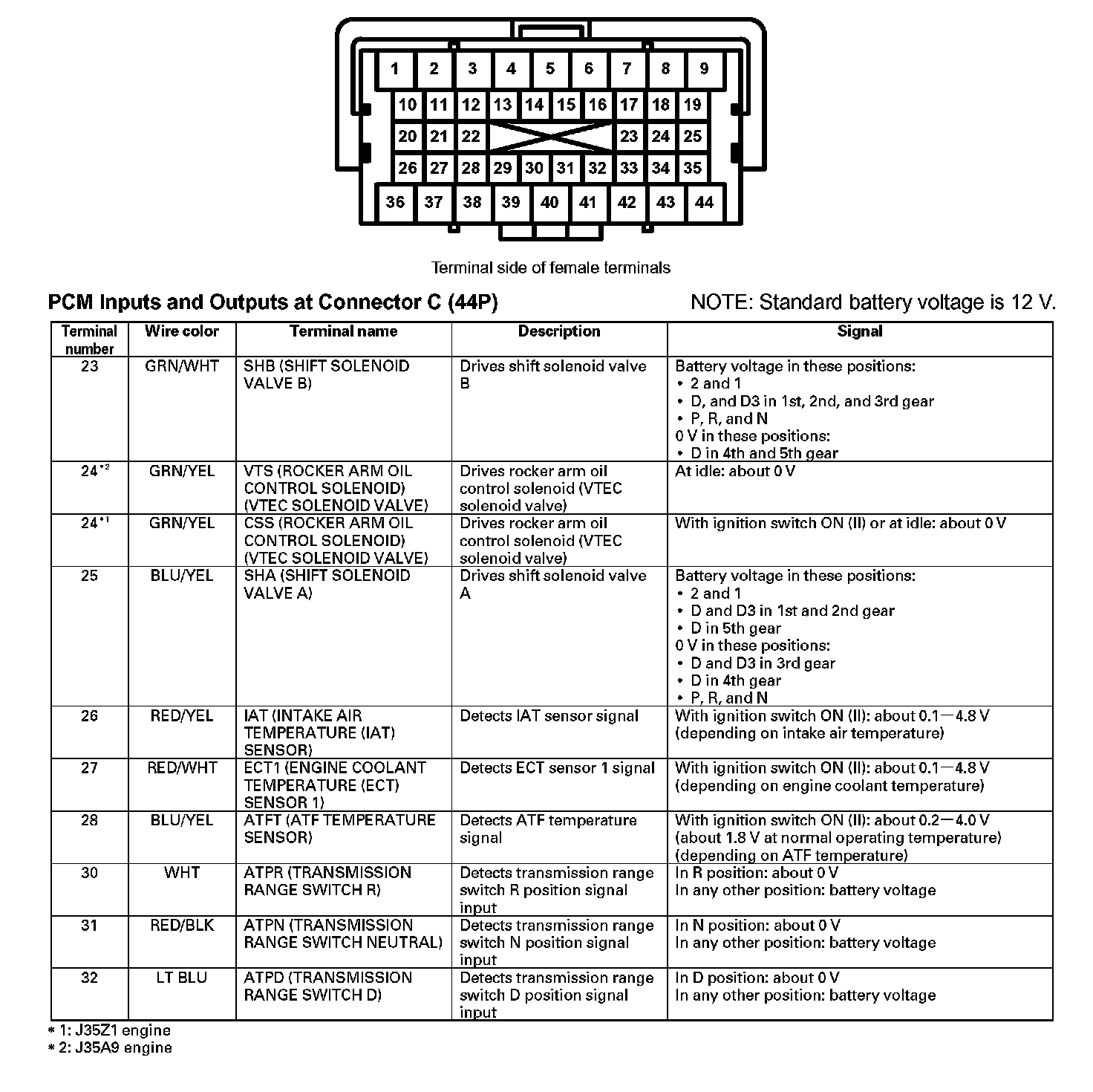

PCM Inputs And Outputs At Connector C (44P) Part 2:



PCM Inputs And Outputs At Connector C (44P) Part 3:



PCM Inputs And Outputs At Connector C (44P) Part 4:
