Immobilizer Control Unit-Receiver Replacement

WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driver's dashboard lower cover (see DRIVER'S DASHBOARD LOWER COVER REMOVAL/INSTALLATION ).
  2. Remove the steering column covers (see STEERING COLUMN REMOVAL AND INSTALLATION ).
  3. Disconnect the 7P connector (A) from the immobilizer control unit-receiver (B).

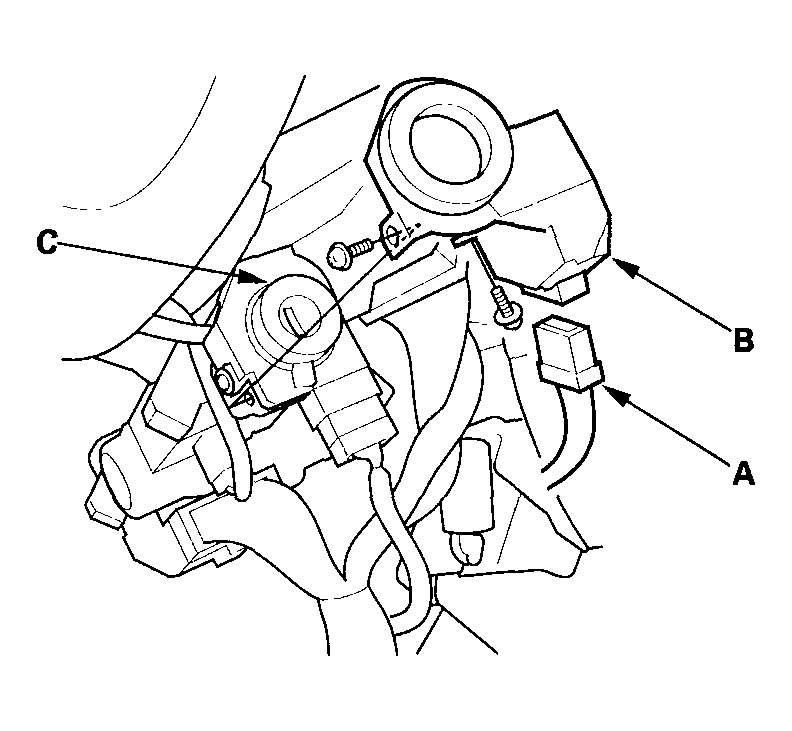

    Fig 1: Disconnecting 7P Connector From Immobilizer Control Unit-Receiver
    G04247303Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the two screws and the immobilizer control unit-receiver from the ignition key cylinder
  5. Install the immobilizer control unit-receiver in the reverse order of removal.
  6. After replacement, rewrite the unit with the HDS, then check the immobilizer system.
    NOTE: You must have all of the customer's keys.
