FTP Sensor Replacement

  1. Disconnect the FTP sensor connector (A).

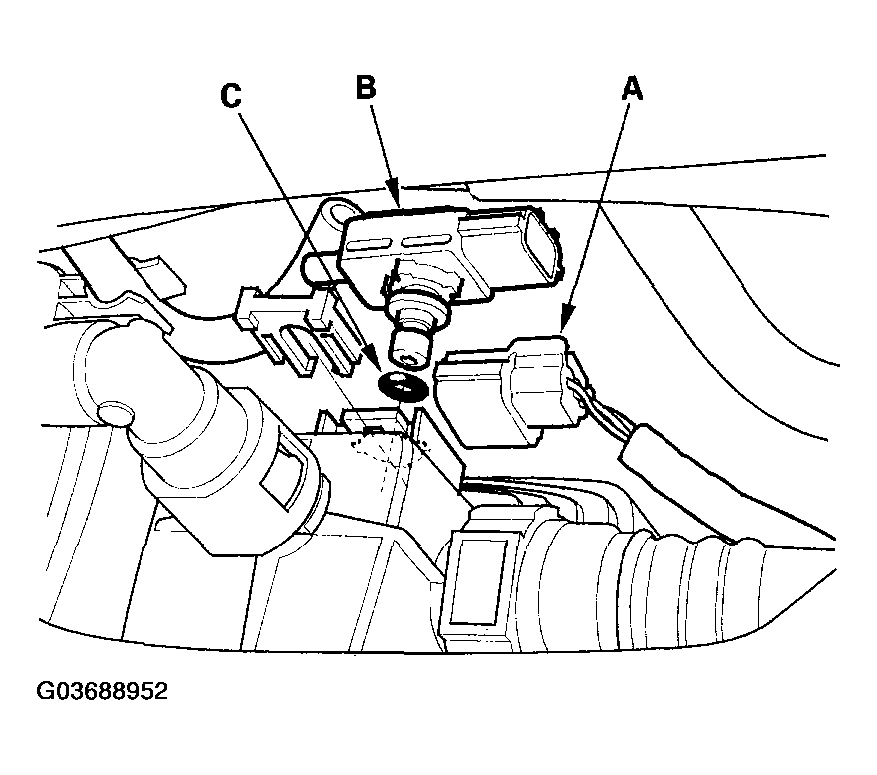

    Fig 1: Disconnecting FTP Sensor Connector With Torque Specifications
    G03688952Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the FTP sensor (B).
  3. Install the sensor in the reverse order of removal with a new O-ring (C).
