Air Intake Duct Removal/ Installation

  1. Remove the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION  ).
  2. Remove air intake duct B (A).
    Fig 1: Removing Air Intake Duct (1 Of 2)
    G03688879Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove air intake duct A (A).

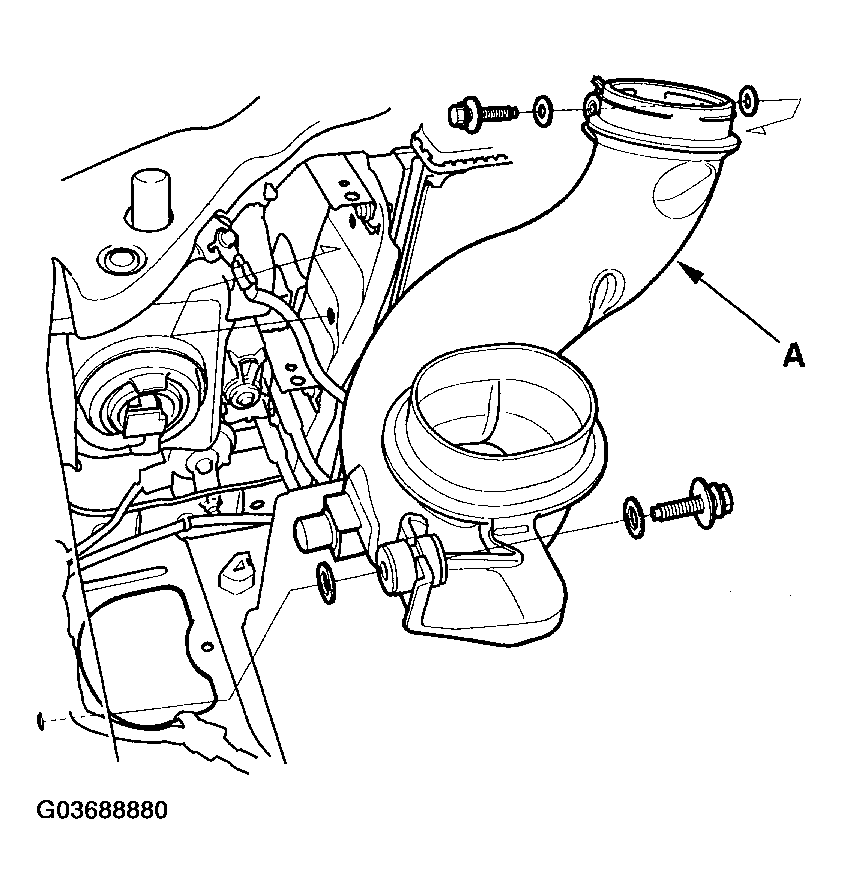

    Fig 2: Removing Air Intake Duct (2 Of 2)
    G03688880Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the parts in the reverse order of removal.
