Alarm Module: Locations

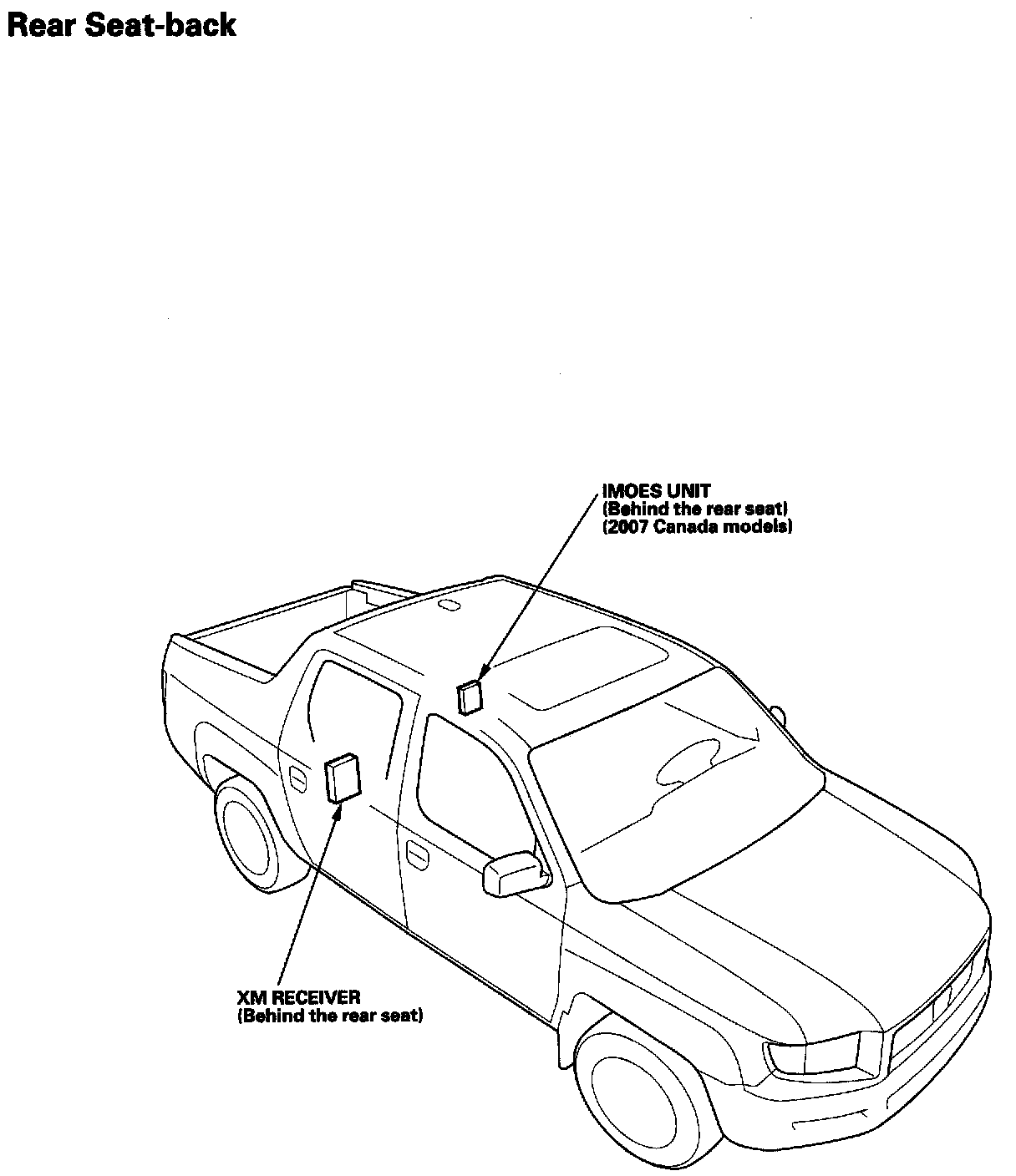

Relay And Control Unit Locations Rear Seat-back:

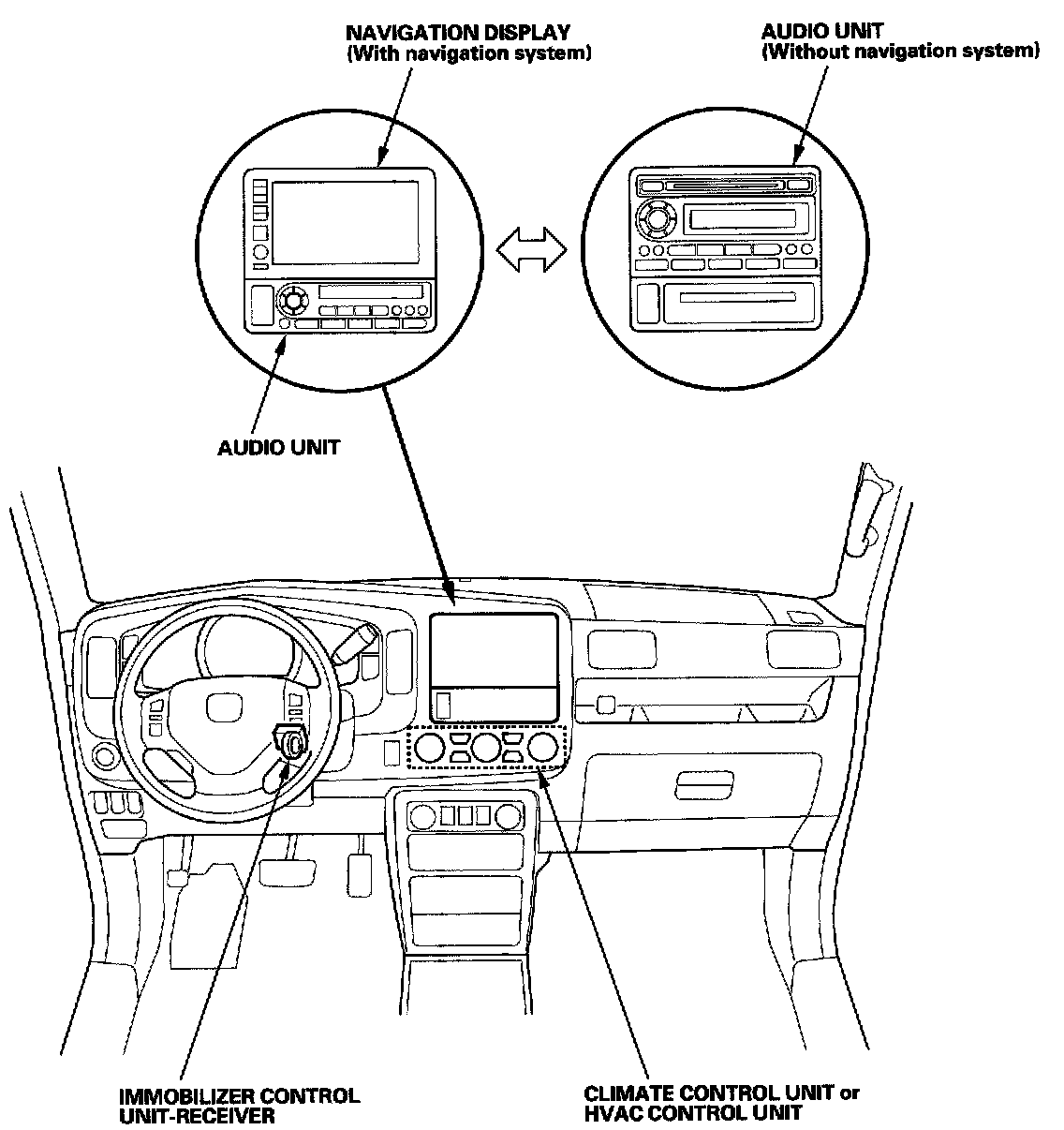

Relay And Control Unit Locations Dashboard:

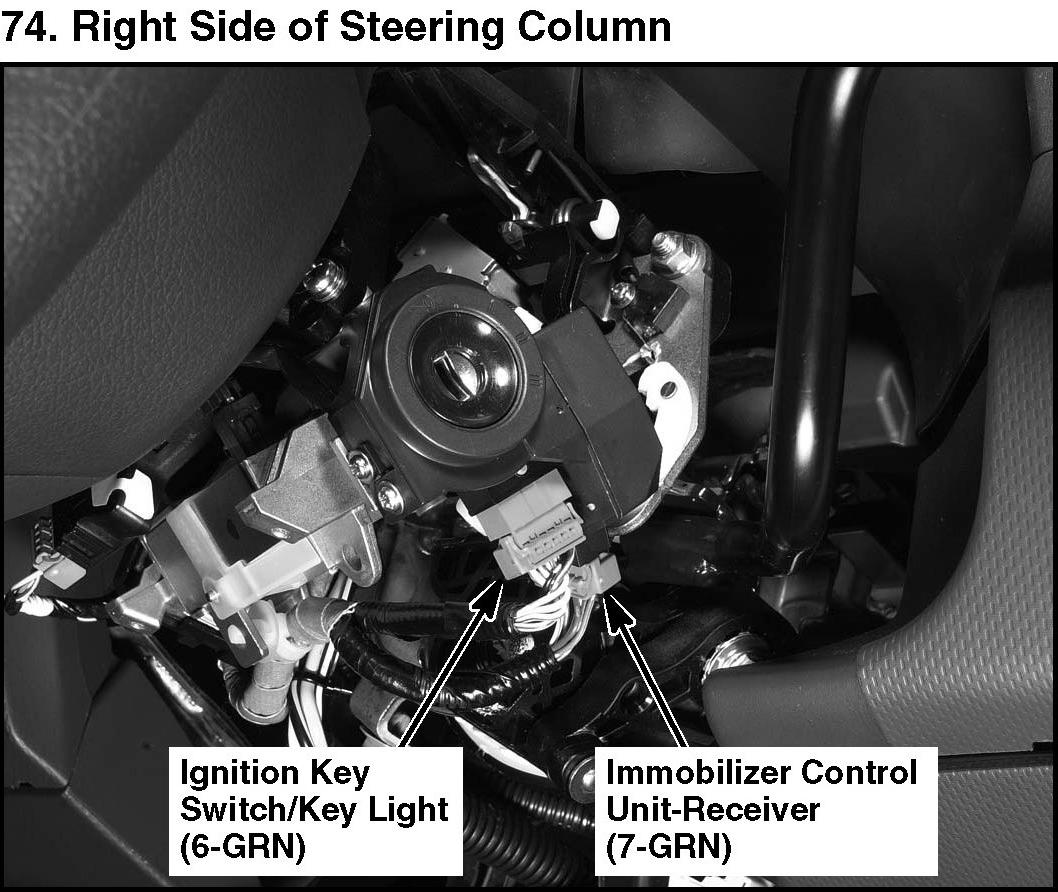

74. Right Side Of Steering Column:

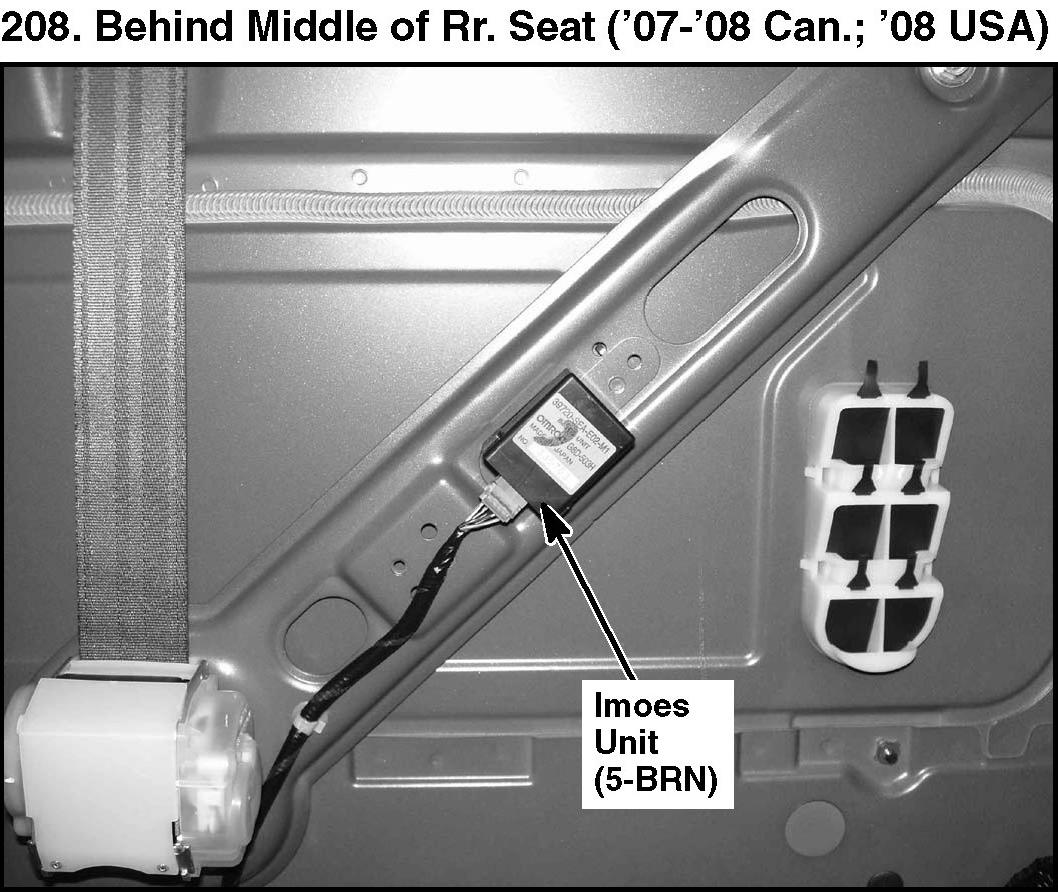

208. Behind Middle Of Rr. Seat ('07'-08 Can.; '08 USA):
