Multiple Junction Connector

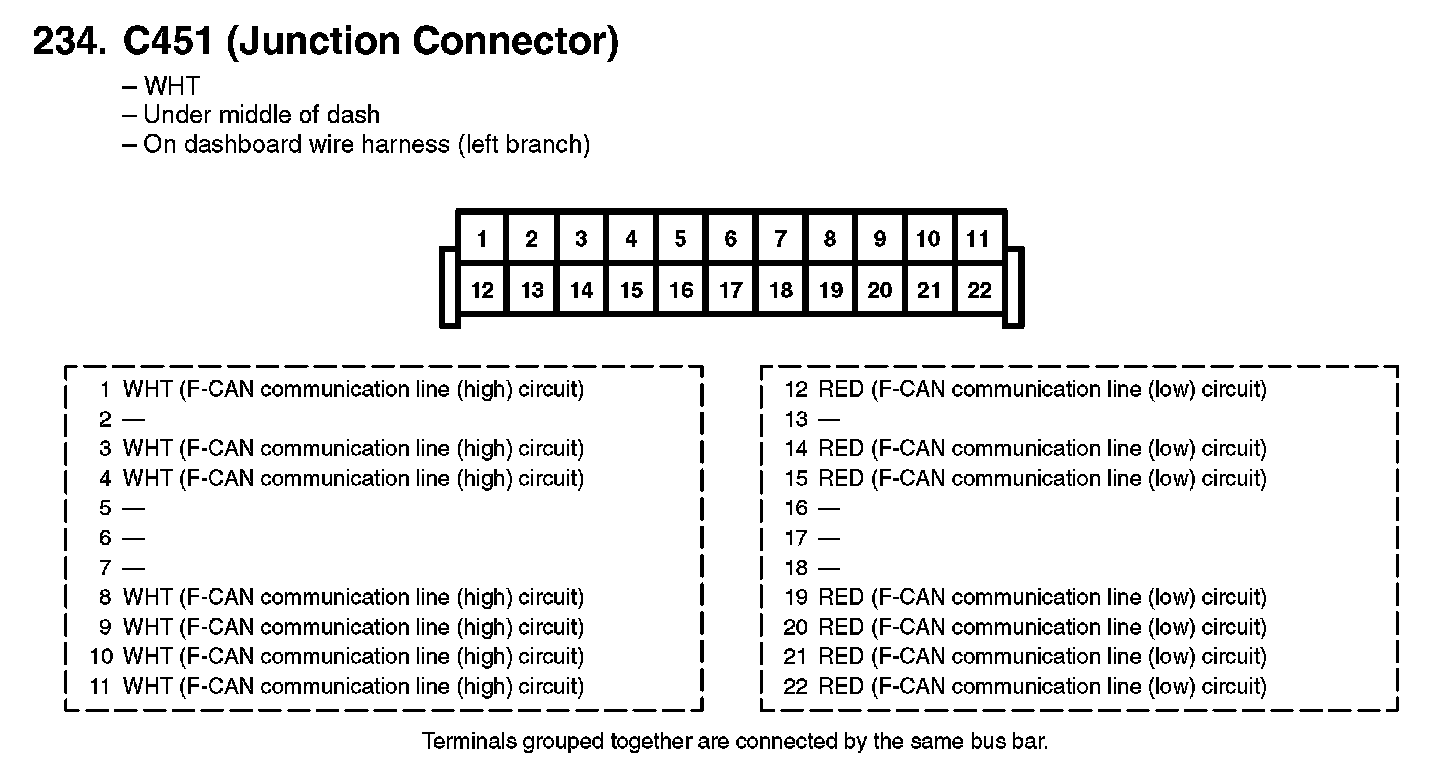

234. C451 (Junction Connector):

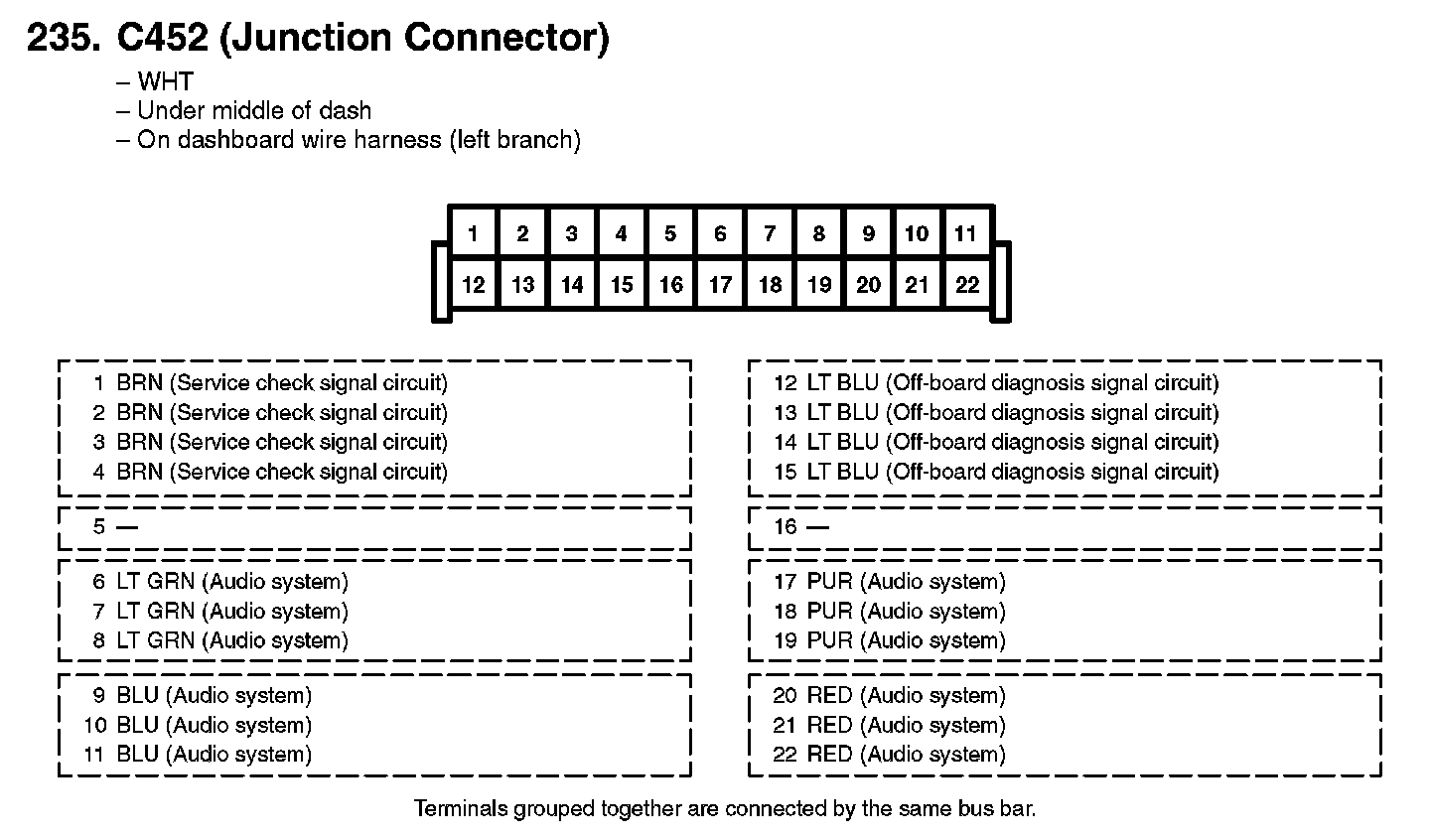

235. C452 (Junction Connector):

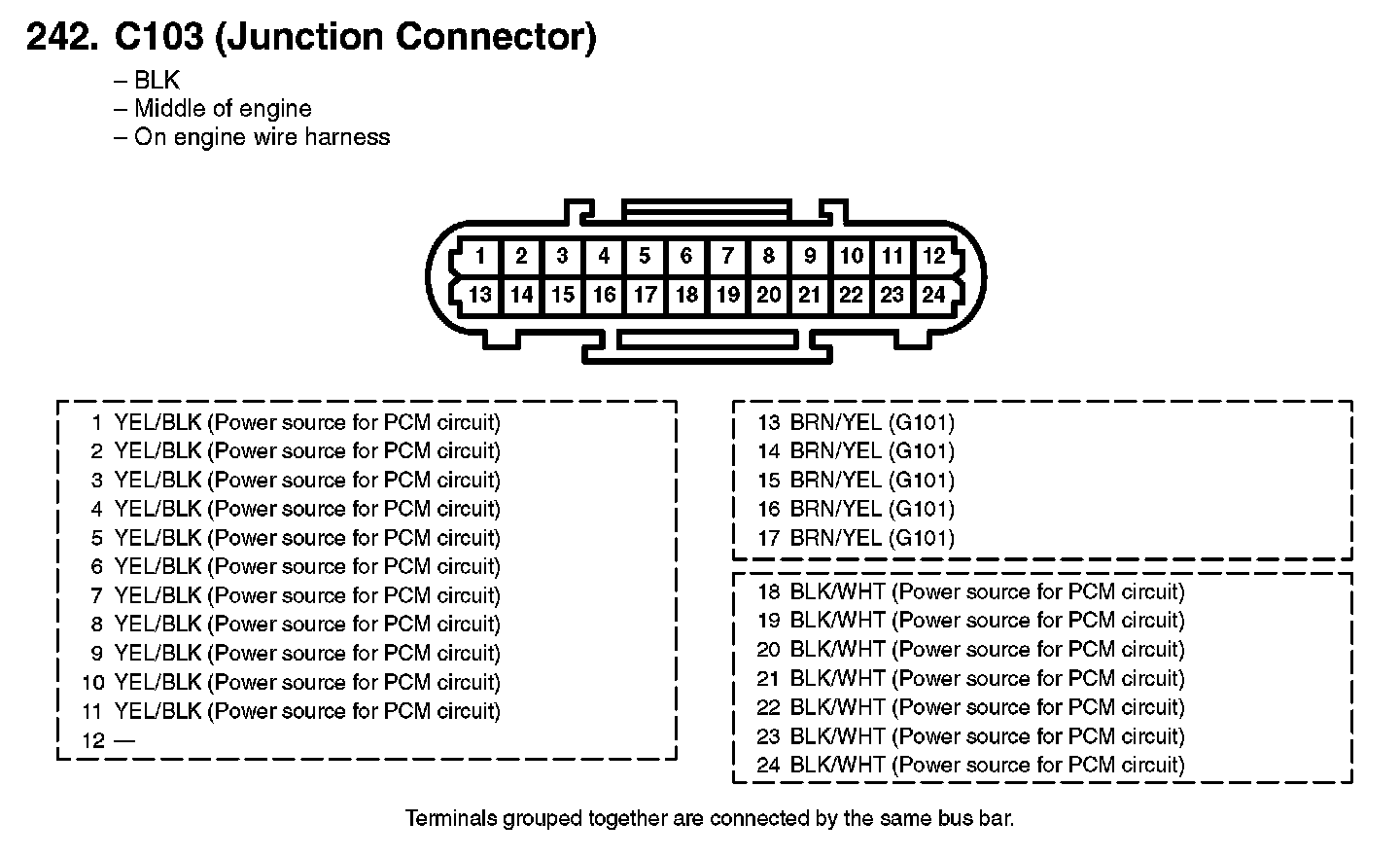

242. C103 (Junction Connector):

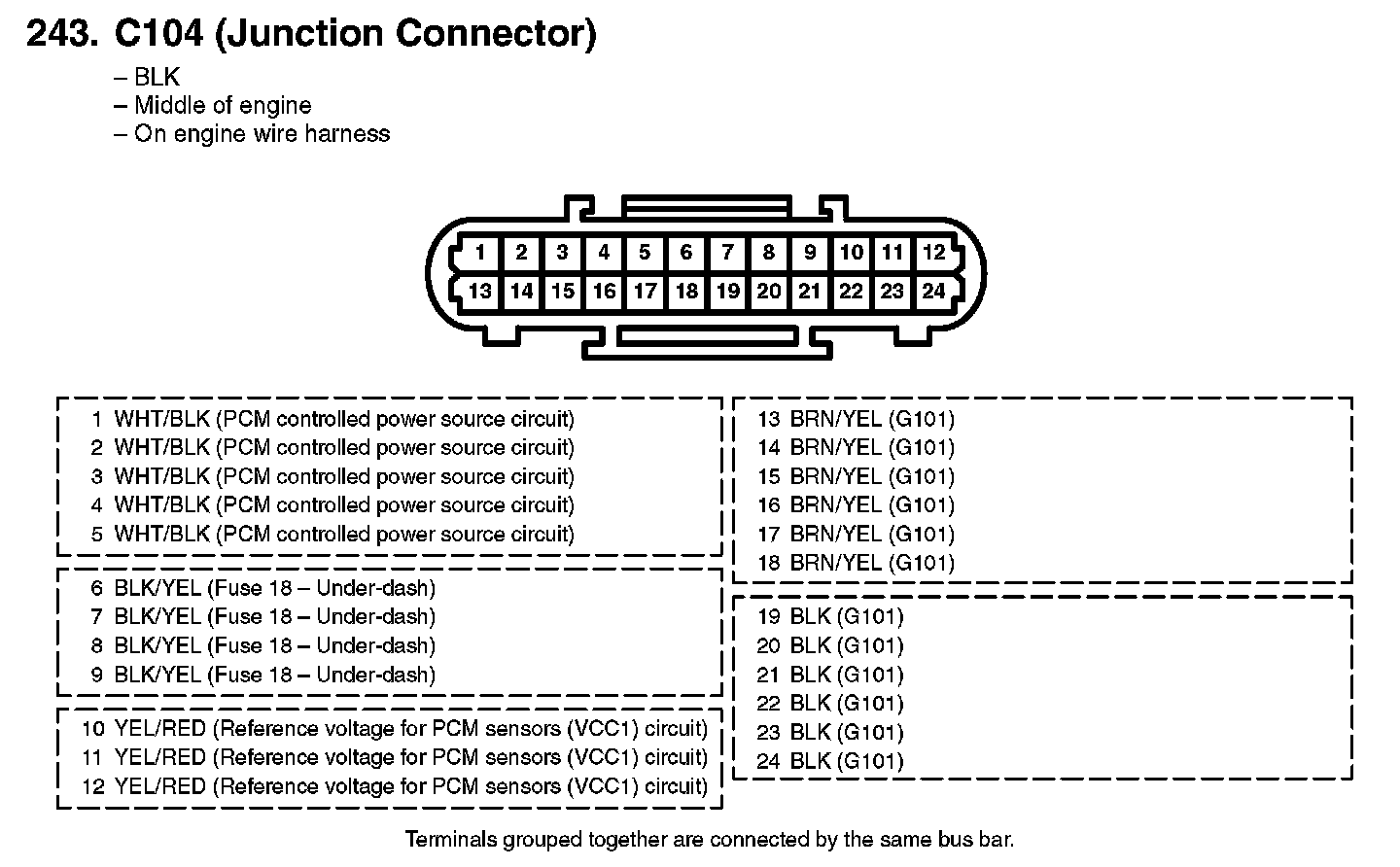

243. C104 (Junction Connector):

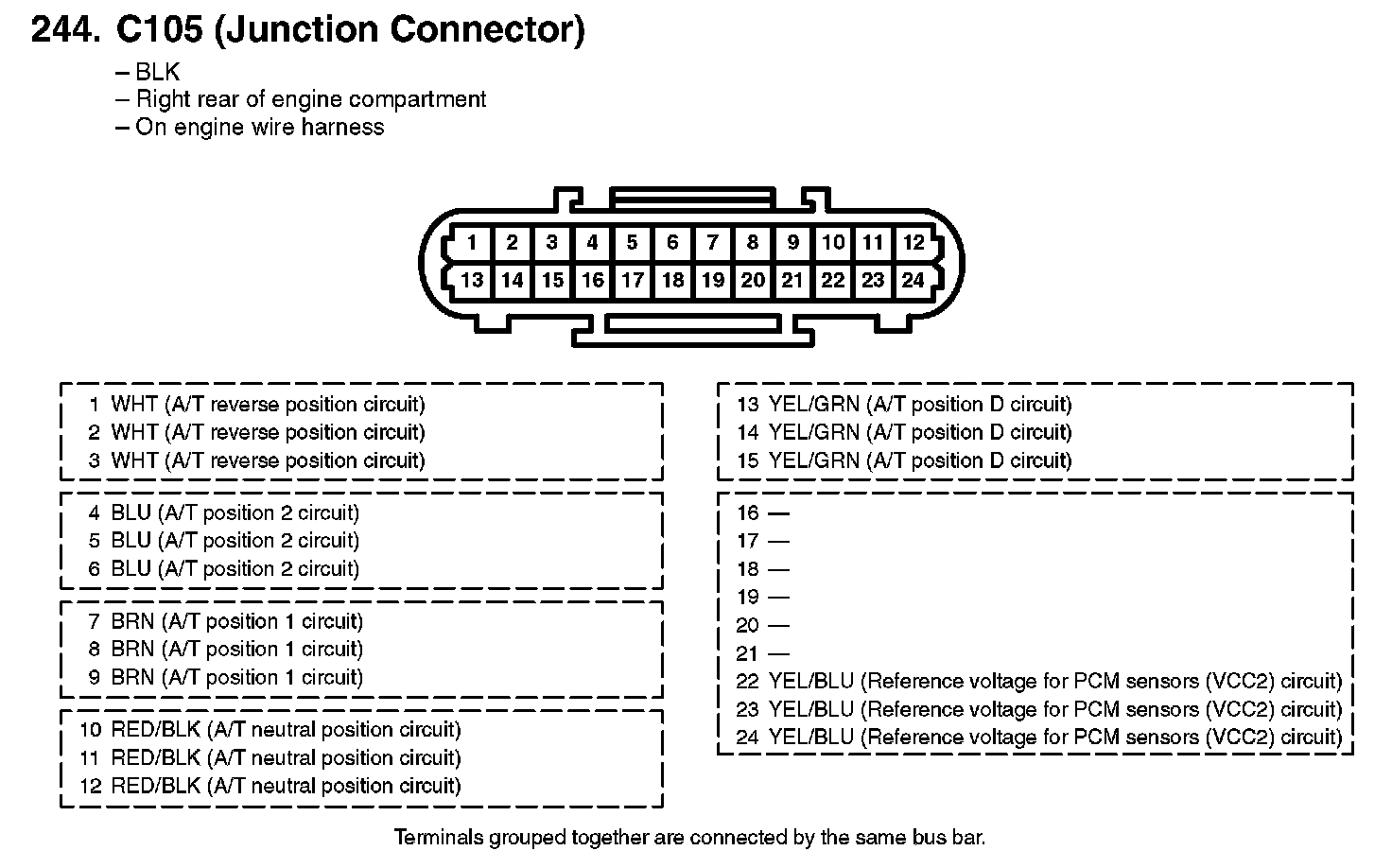

244. C105 (Junction Connector):

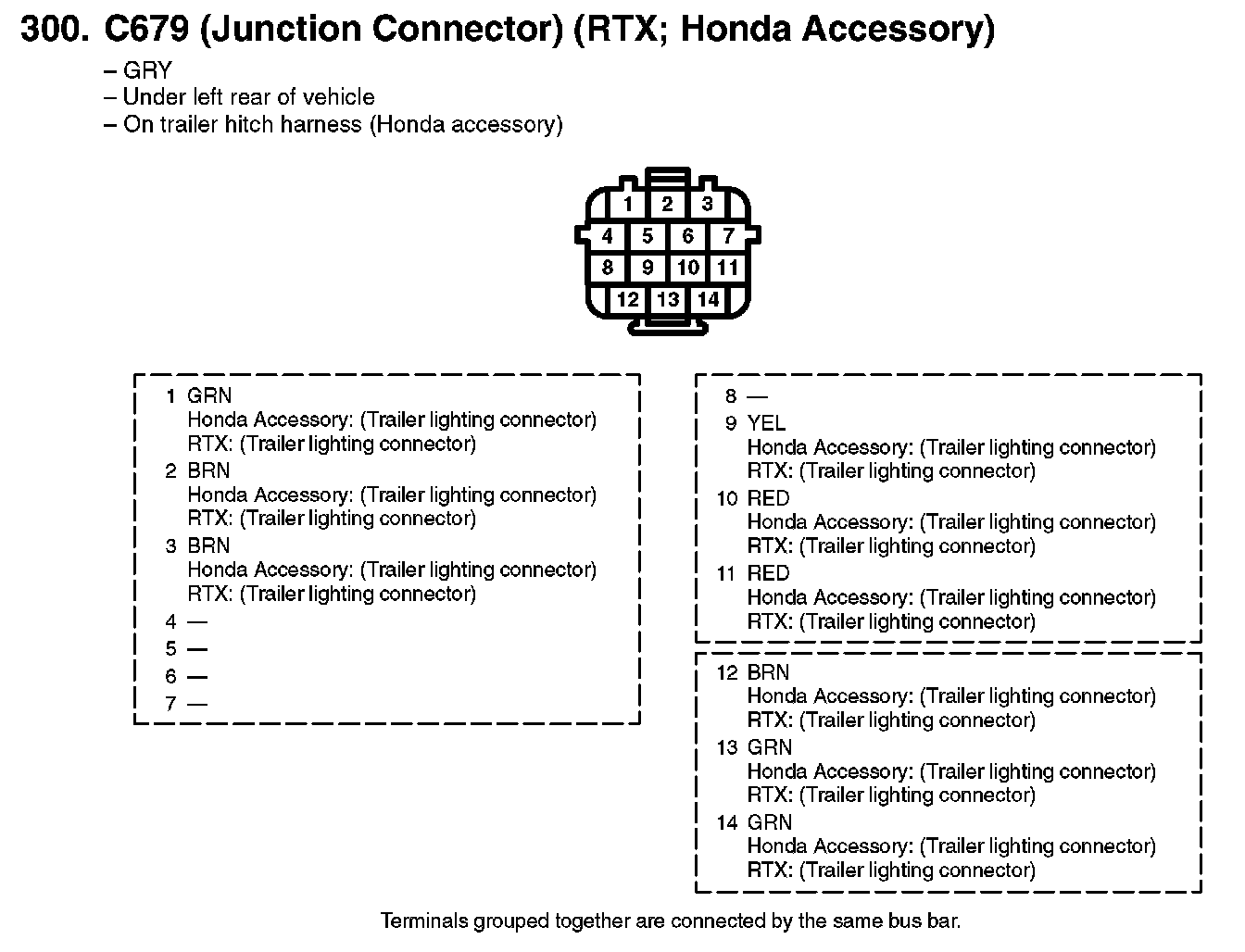

300. C679 (Junction Connector) (RTX; Honda Accessory):
