Keyless Entry: Locations

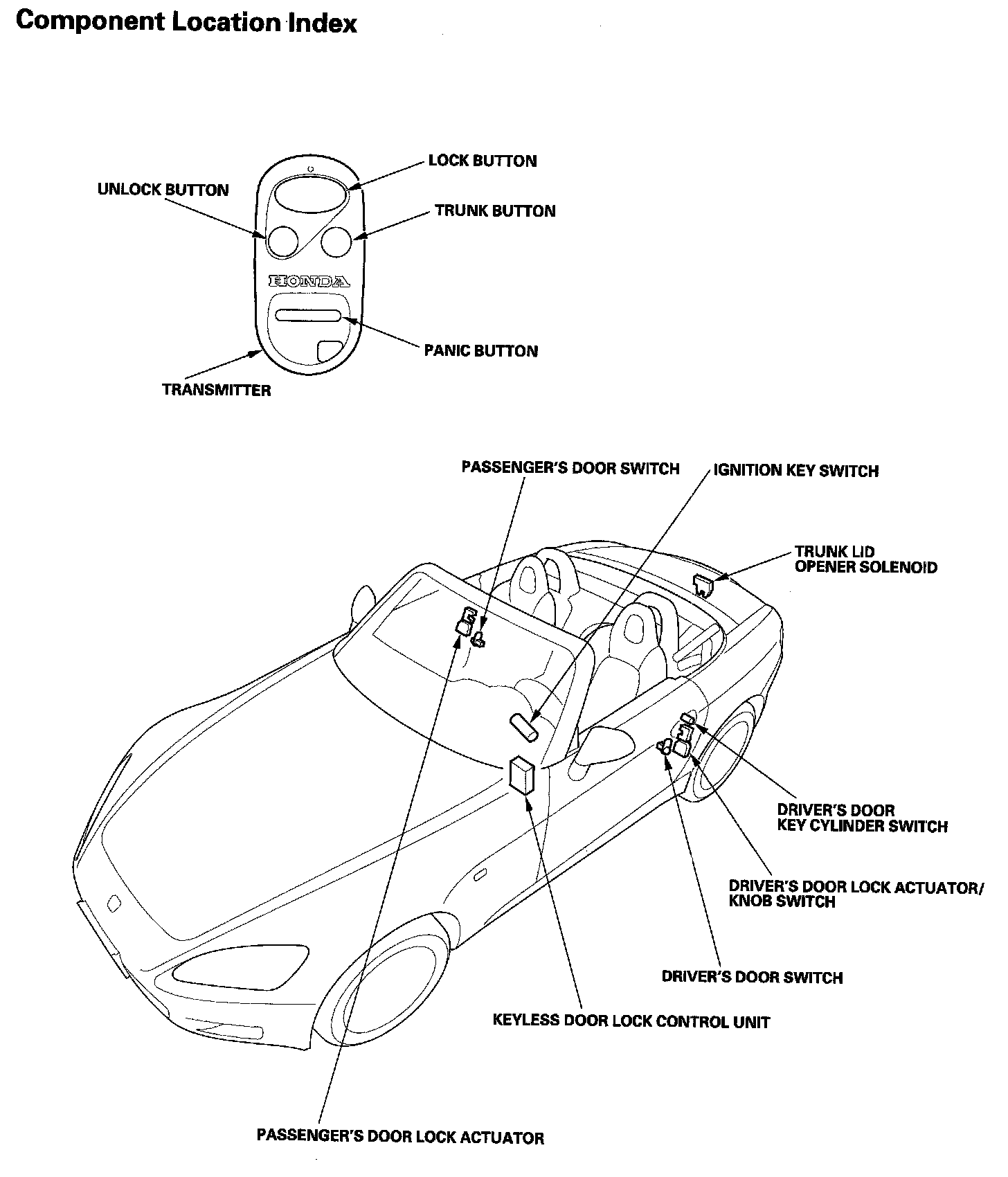

Keyless/Power Door Lock System Component Location Index:

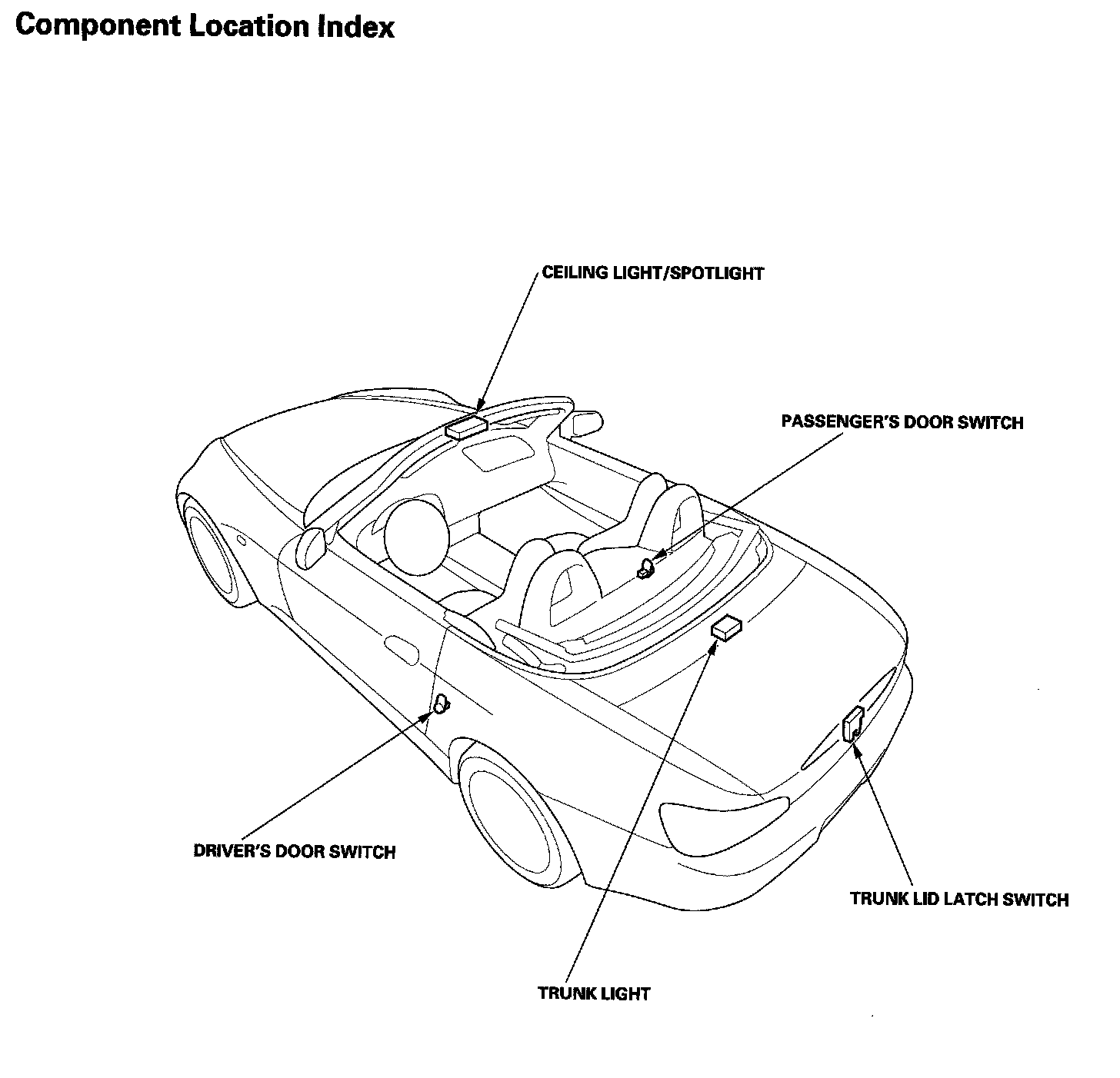

Interior Lights Component Location Index:

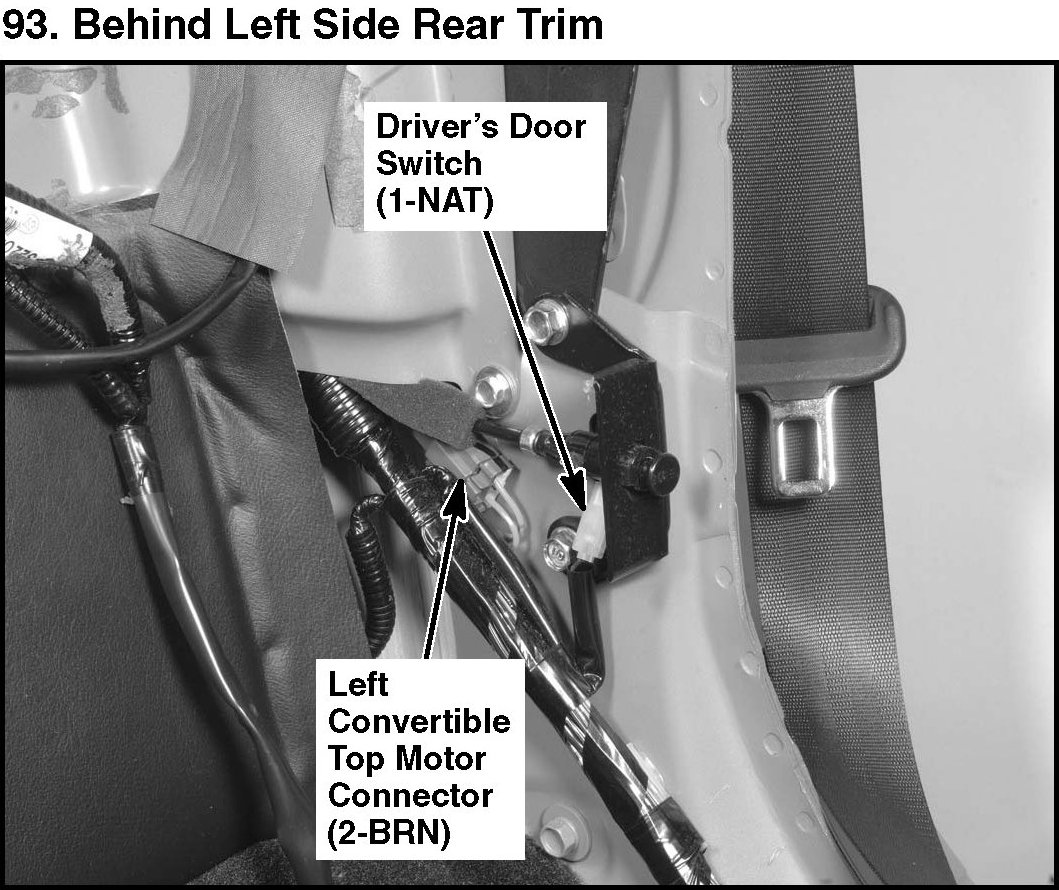

93. Behind Left Side Rear Trim:

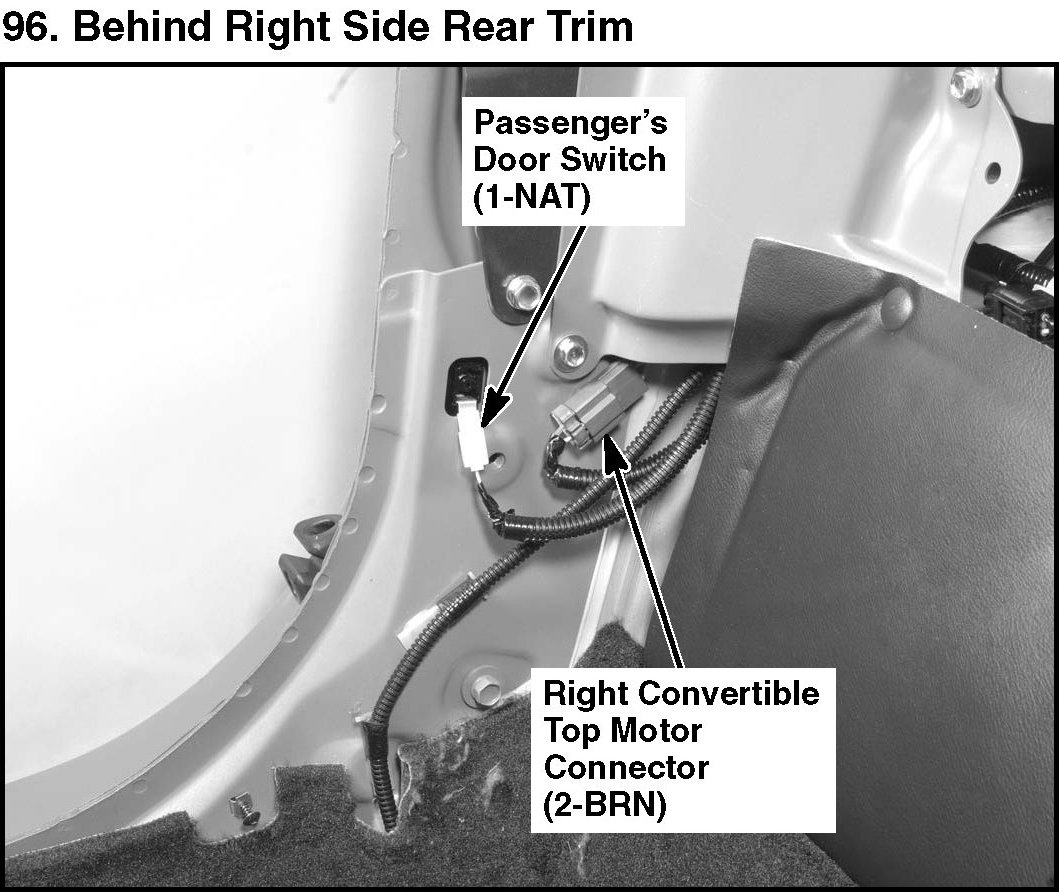

96. Behind Right Side Rear Trim:
