View 1-25: 7

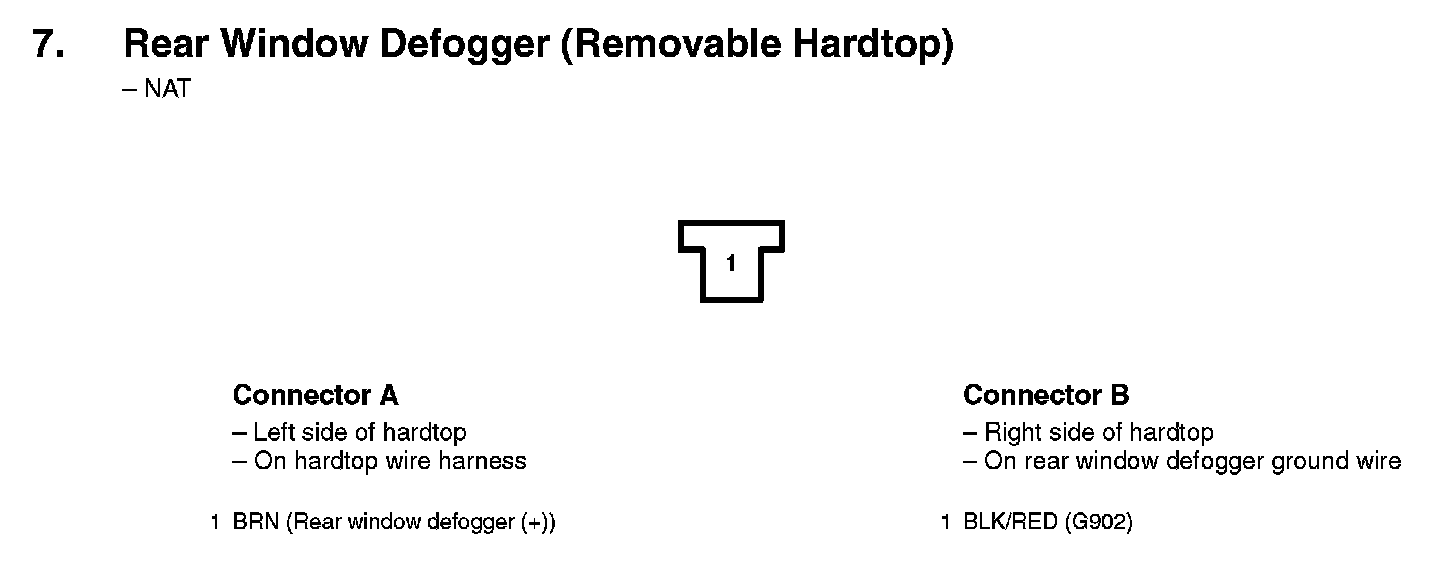

7. Rear Window Defogger (Removable Hardtop):

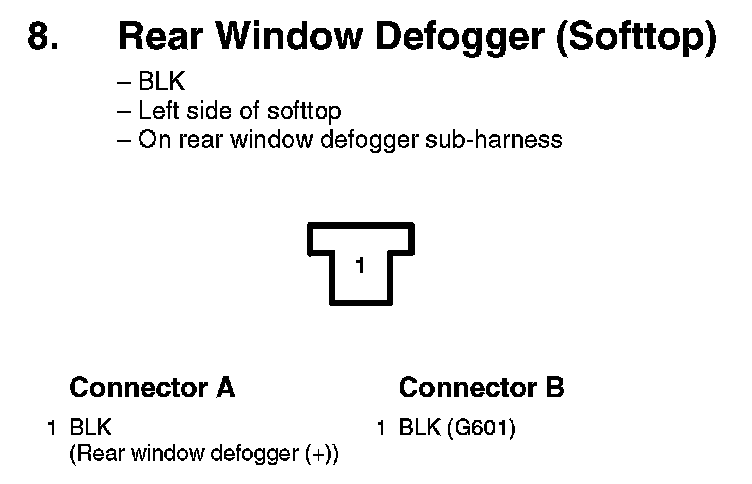

8. Rear Window Defogger (Softtop):

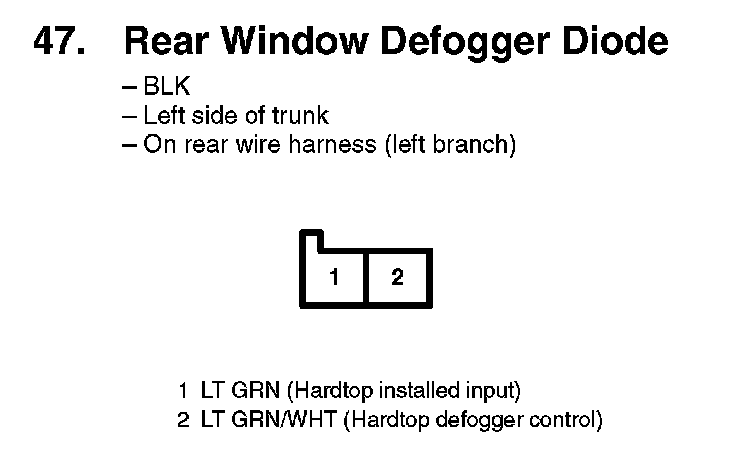

47. Rear Window Defogger Diode:
