Relay Box

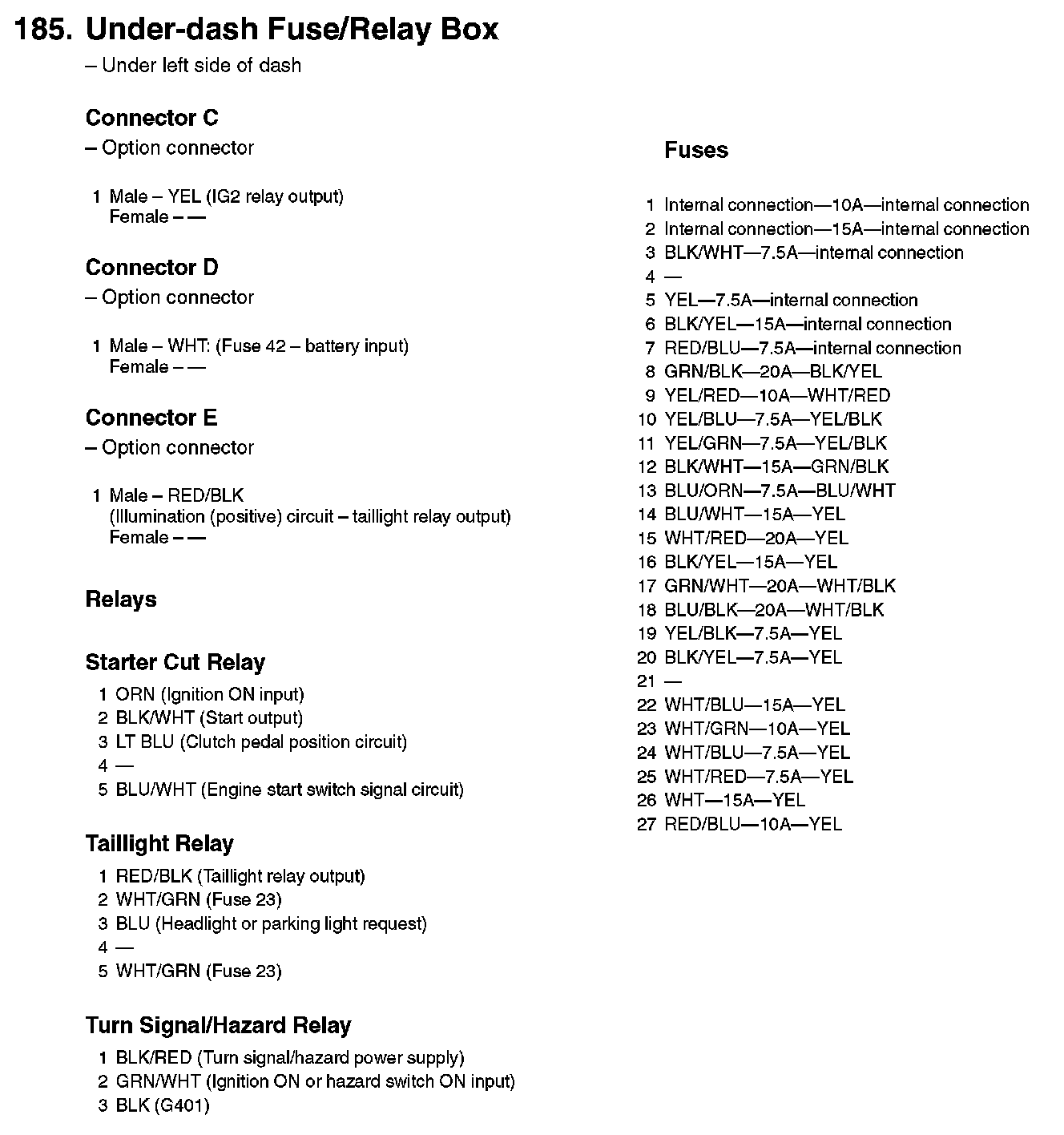

185. Under-dash Fuse/Relay Box:

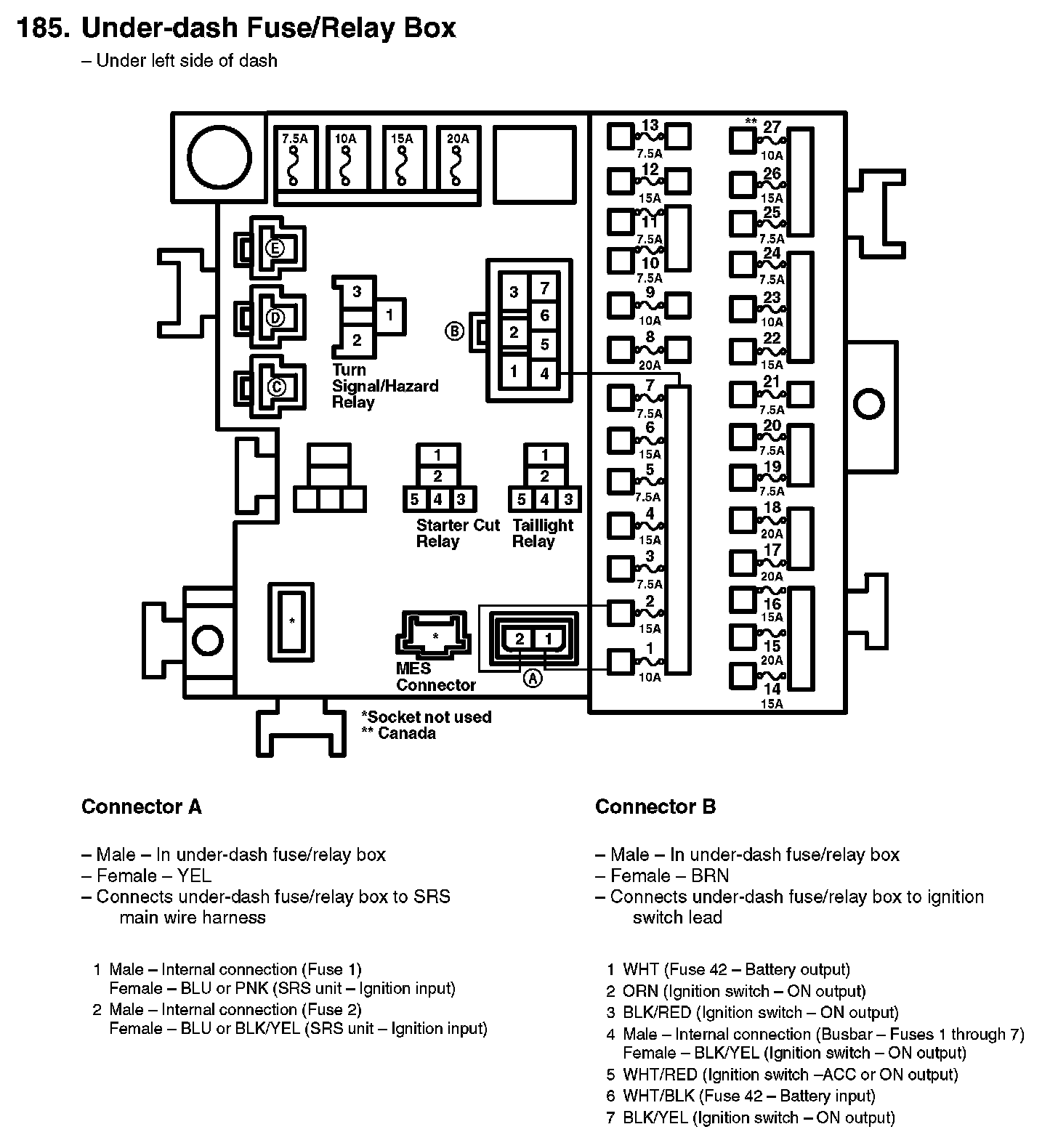

185. Under-dash Fuse/Relay Box:

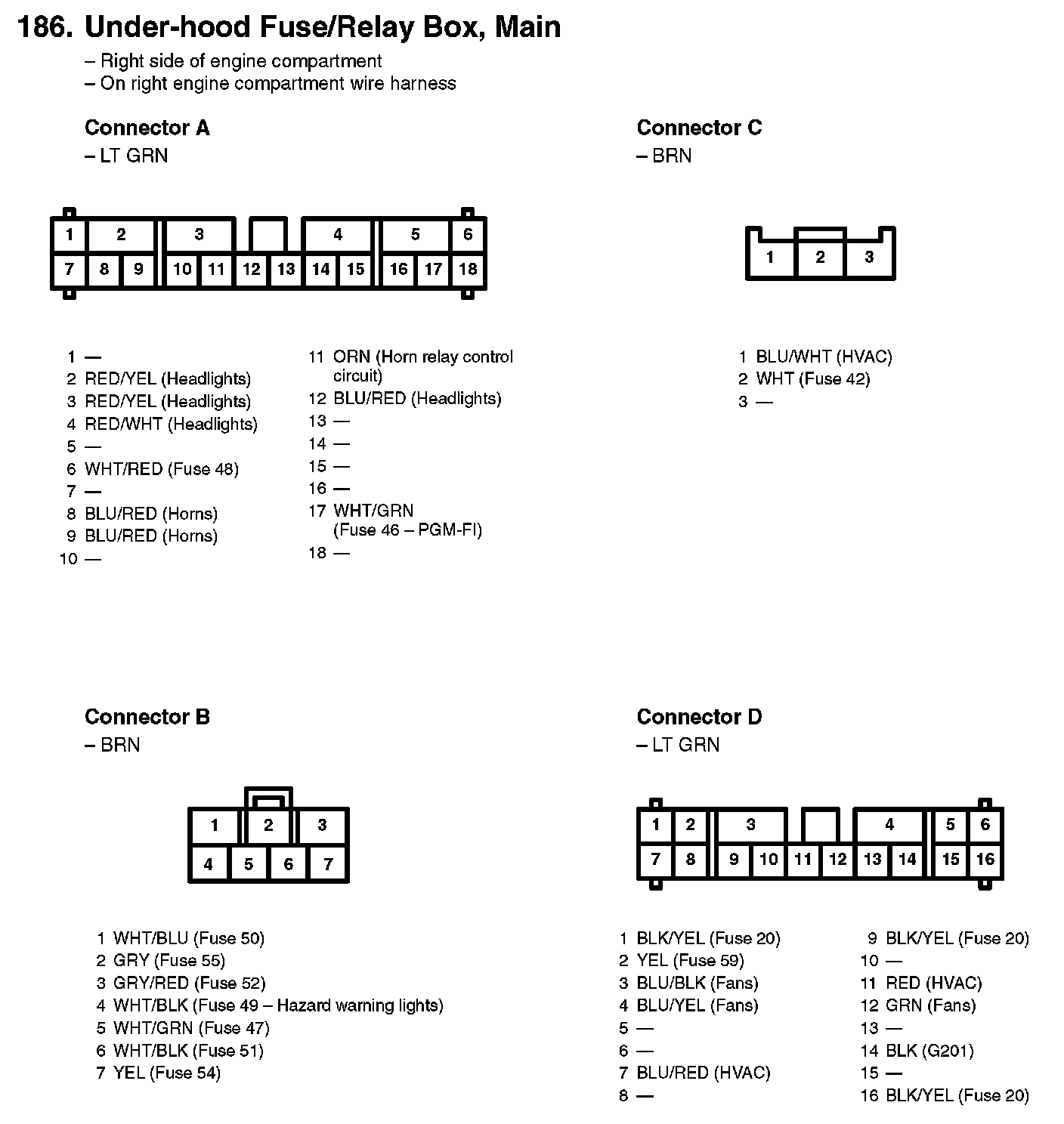

186. Under-hood Fuse/Relay Box, Main:
