CKP Sensor Sub-Harness

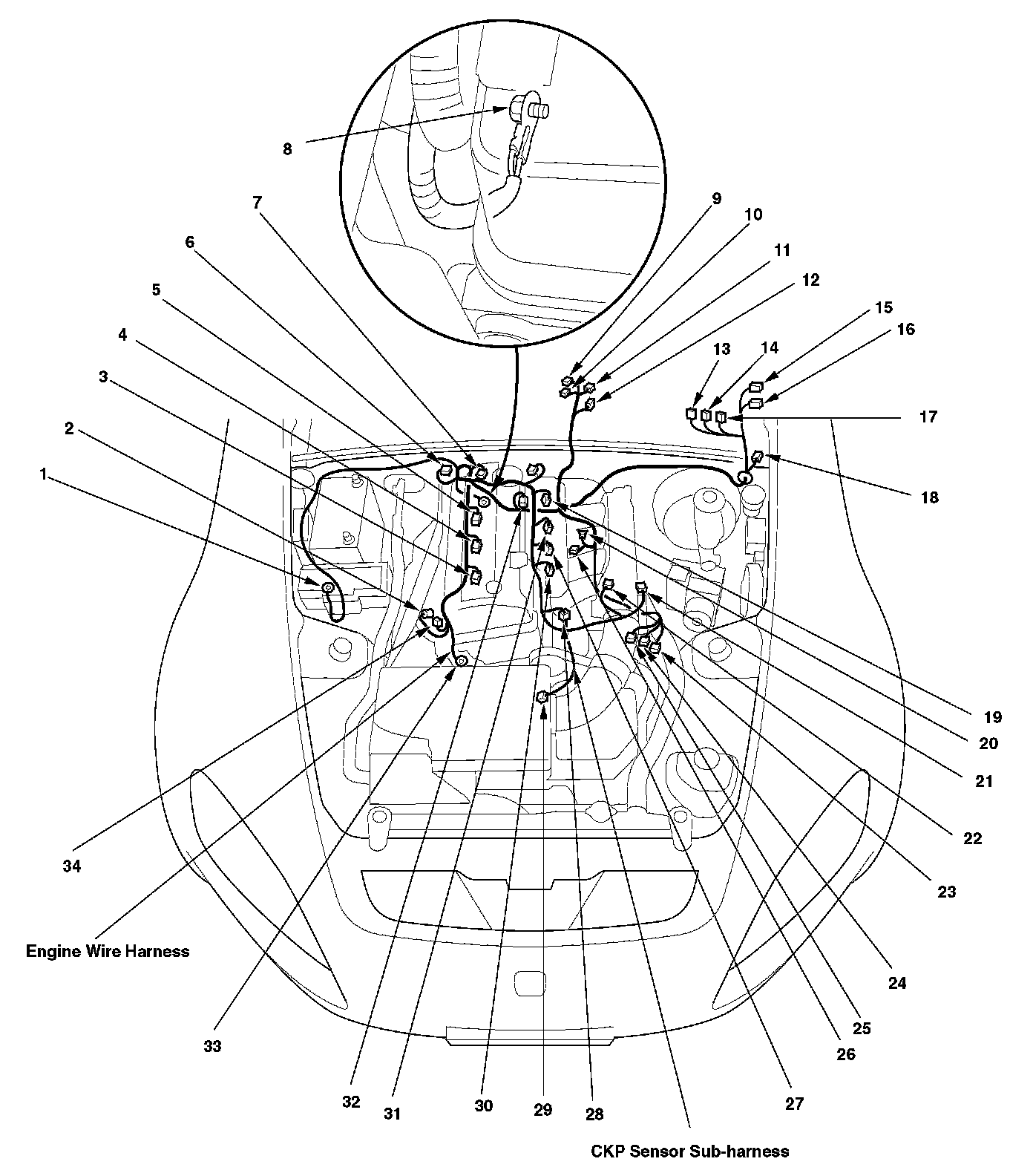

Harness Location View:

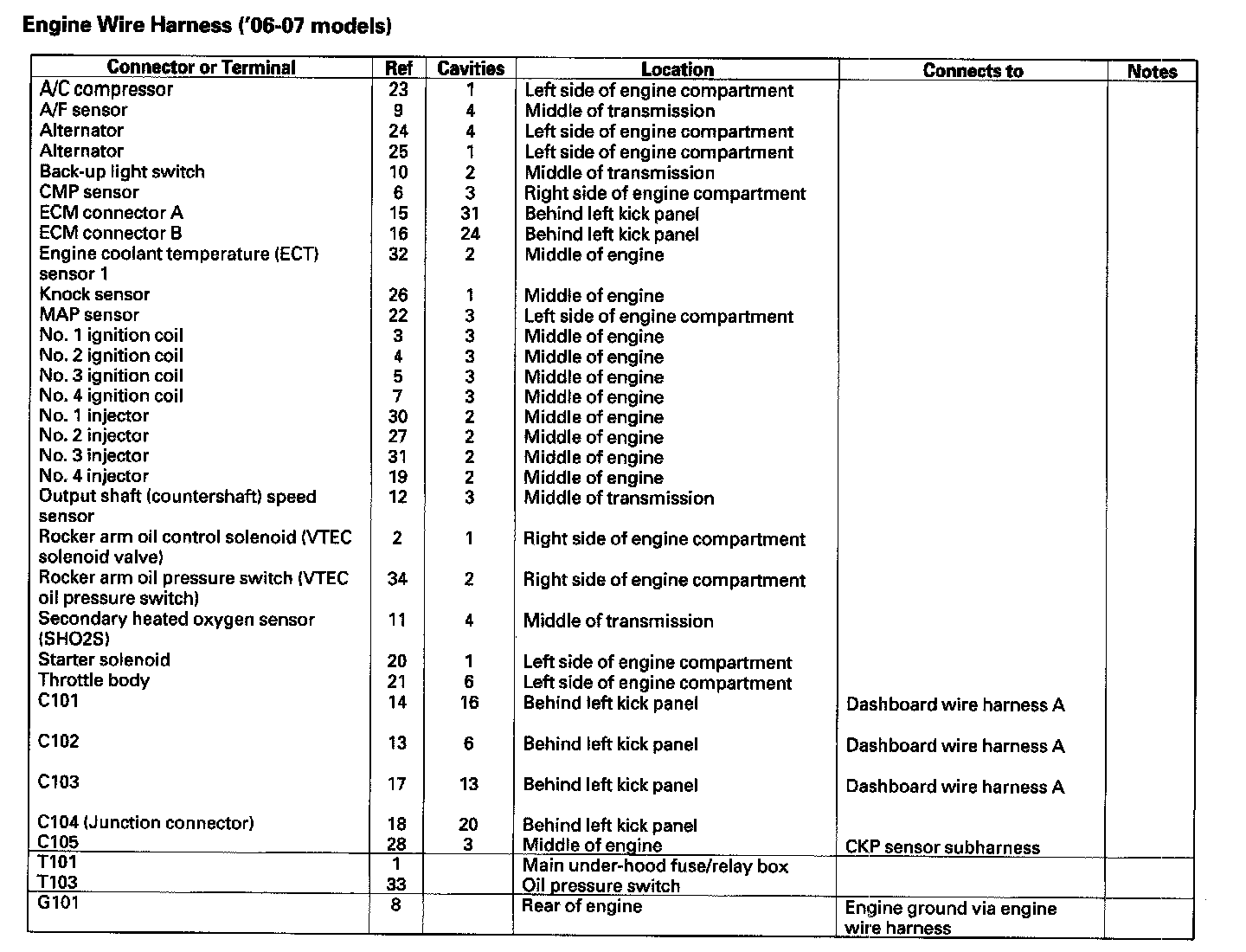

Engine Wire Harness:



Harness Location View:

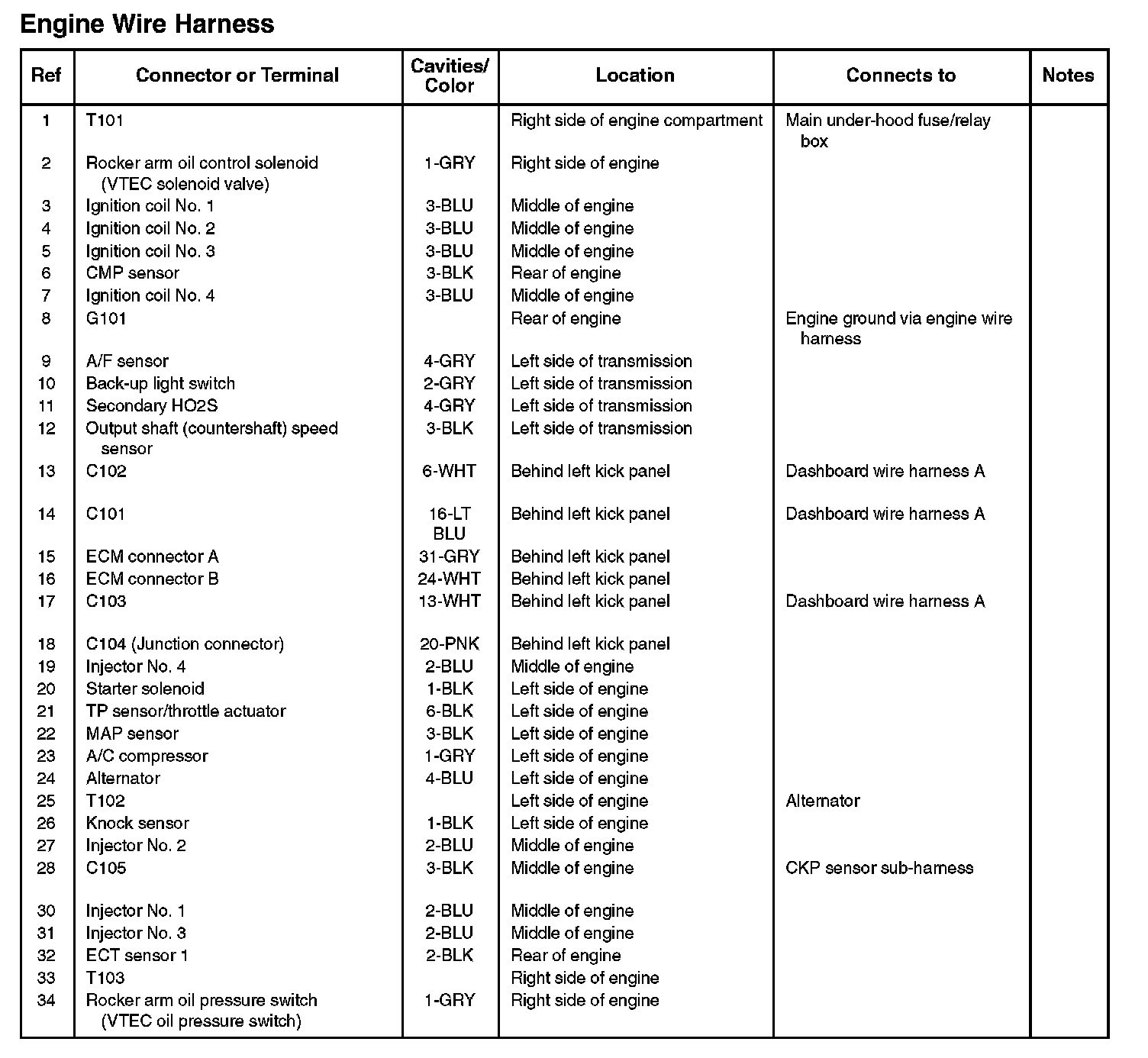

Engine Wire Harness:
