ECT Sensor 2

ECT Sensor 2 Replacement

1. Drain the engine coolant.
2. Remove the splash shield.

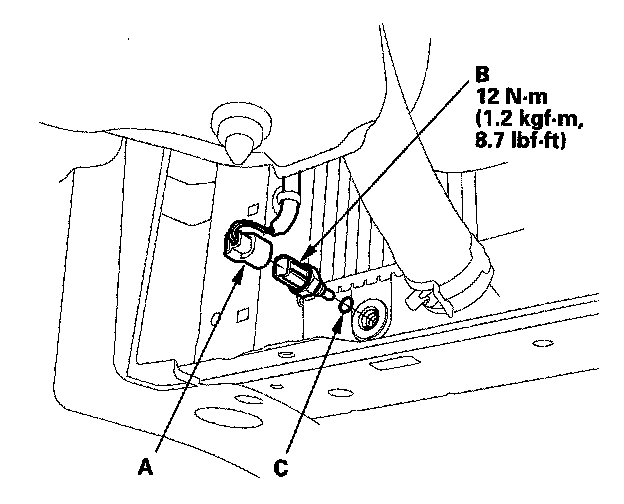

3. Disconnect the ECT sensor 2 connector (A), then remove ECT sensor 2 (B).
4. Install ECT sensor 2 with a new O-ring (C).
5. Install the splash shield.
6. Refill the radiator with engine coolant.
