ECM Inputs and Outputs

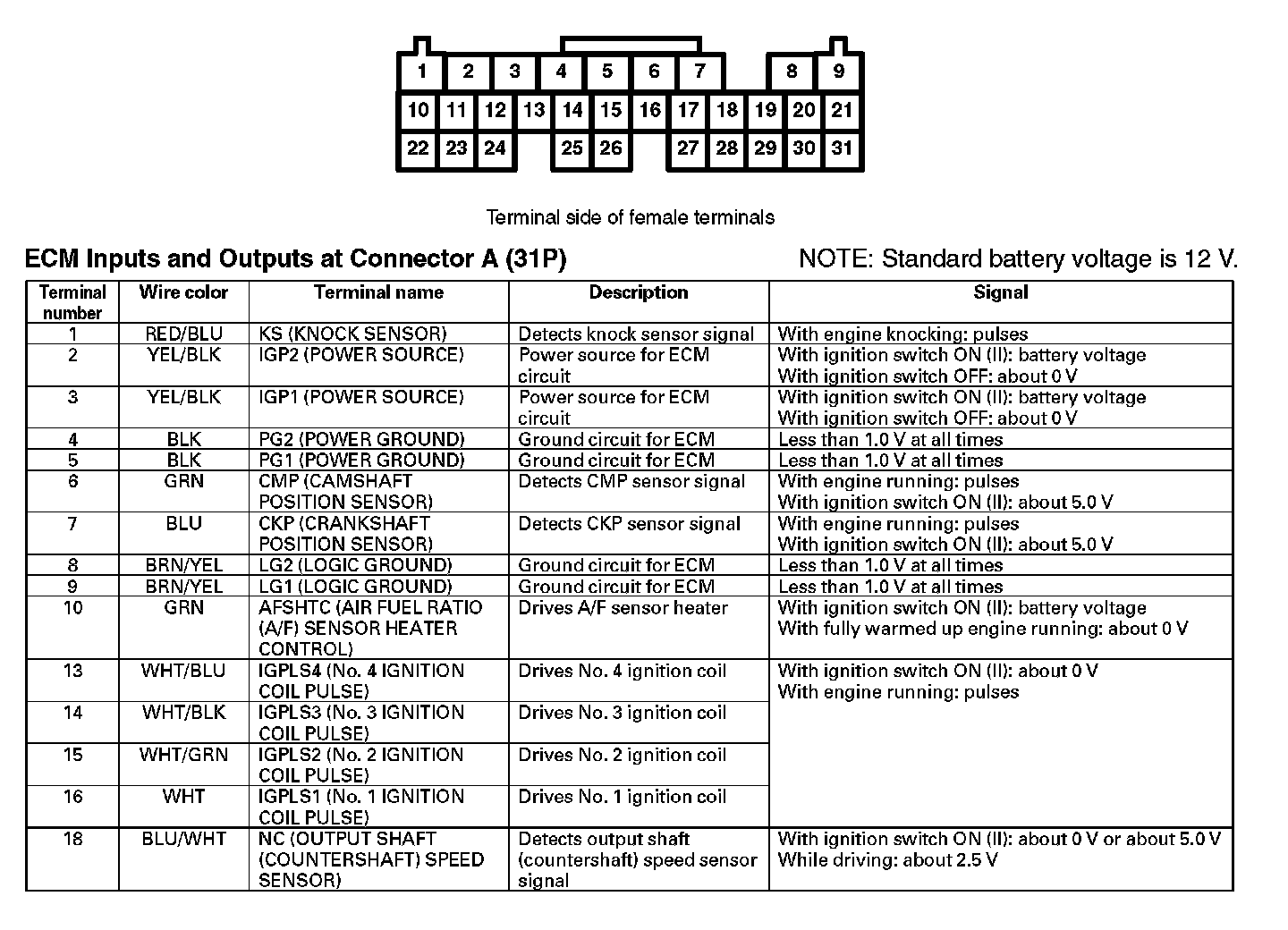

ECM Inputs And Outputs At Connector A (31P) Part 1:

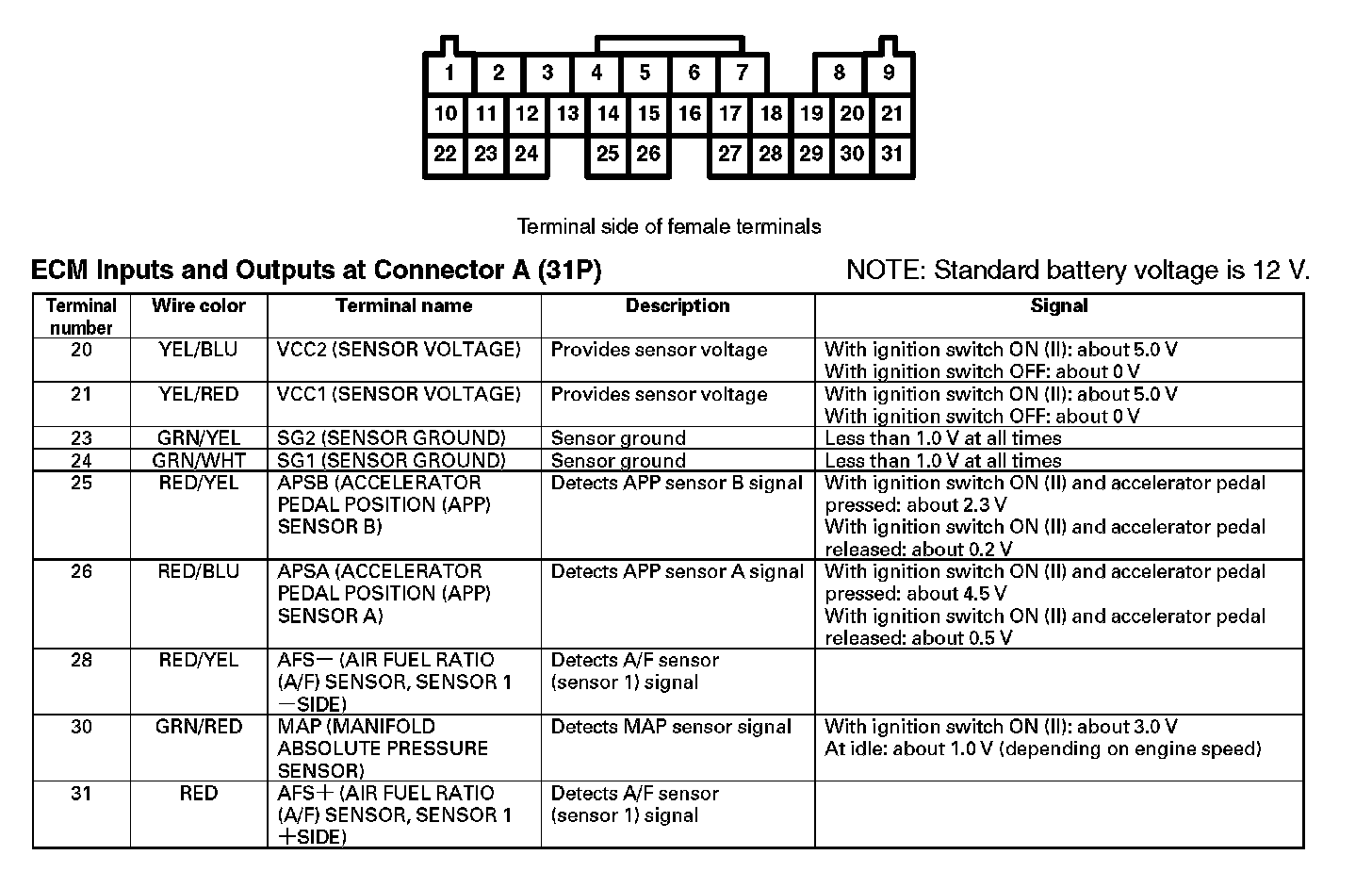

ECM Inputs And Outputs At Connector A (31P) Part 2:

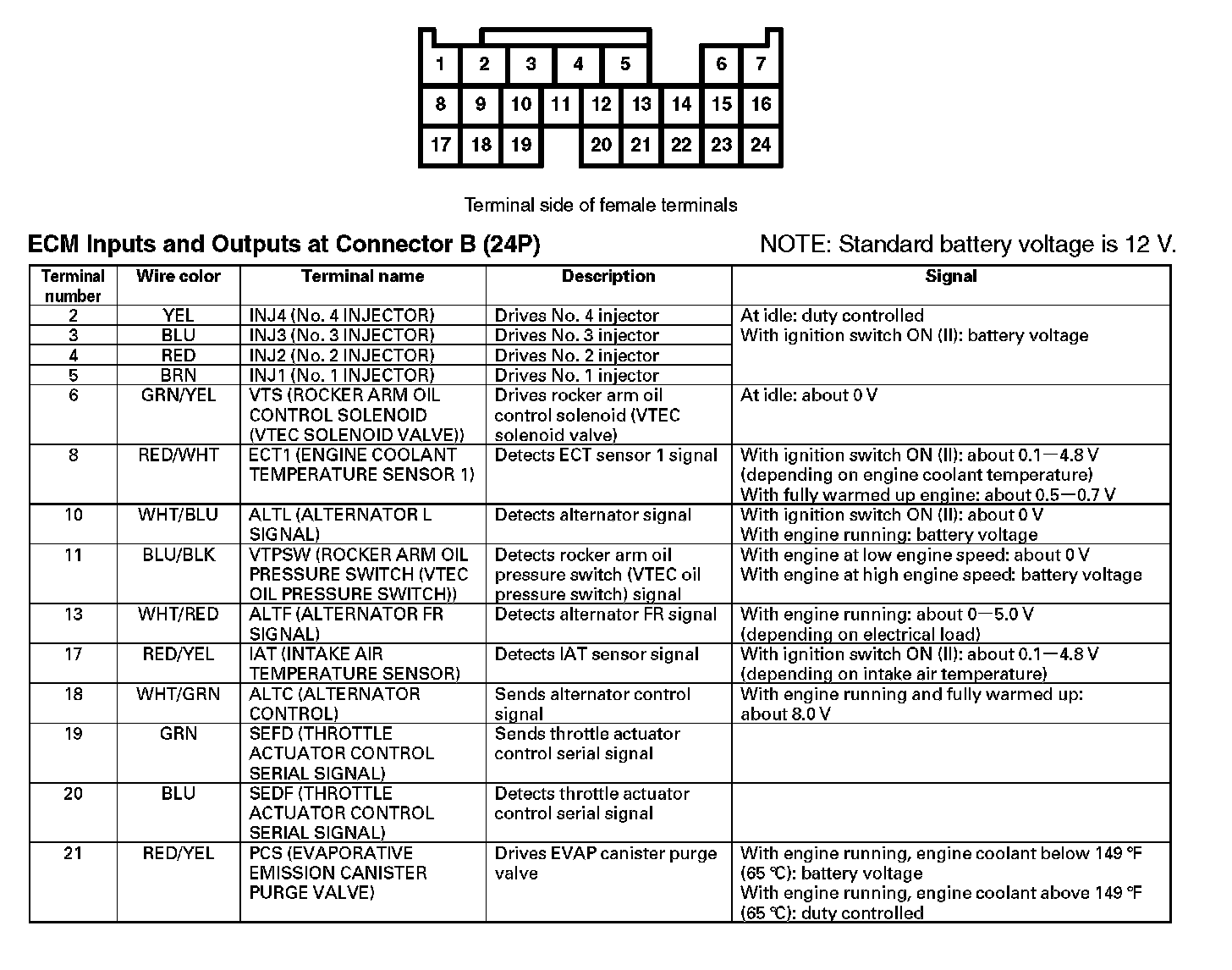

ECM Inputs And Outputs At Connector B (24P):

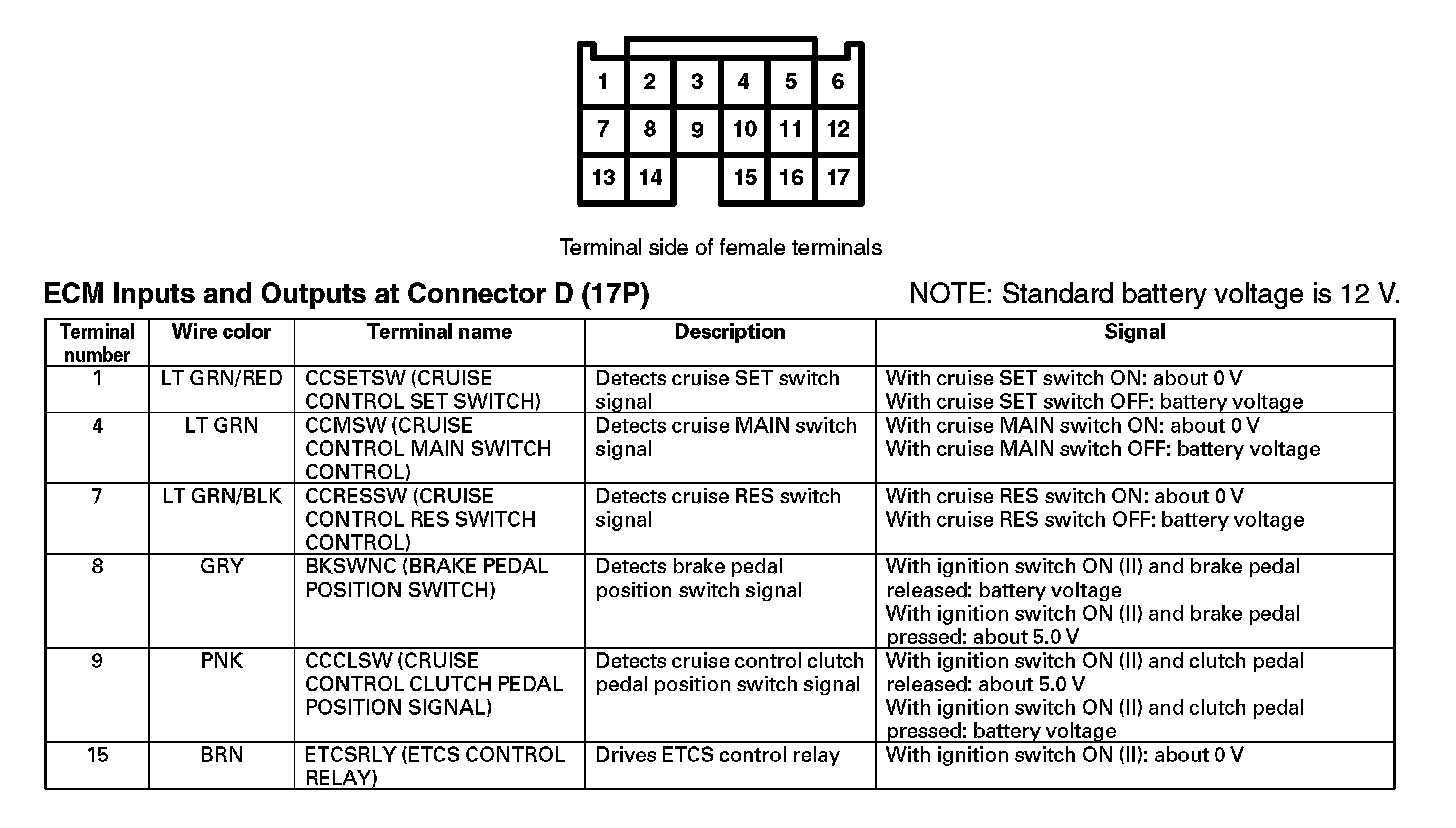

ECM Inputs And Outputs At Connector D (17P):
