Fuel Tank Pressure Sensor: Service and Repair

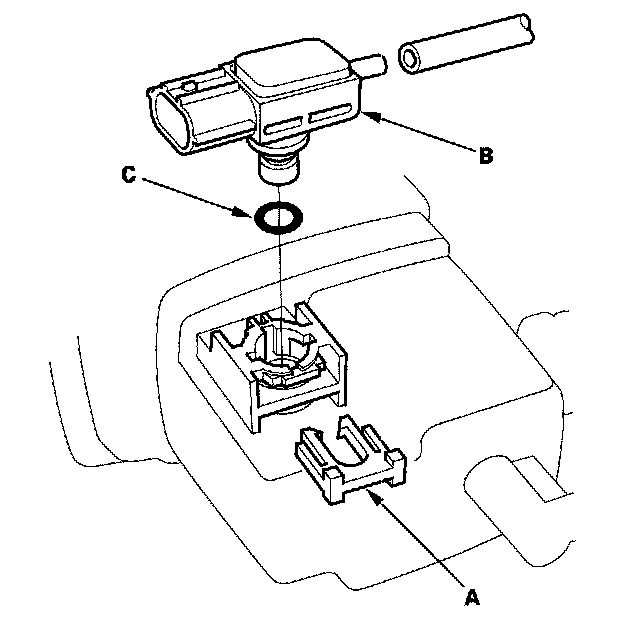

FTP Sensor Replacement

1. Remove the EVAP canister.




2. Remove the retaining clip (A).
3. Remove the FTP sensor (B).
4. Install the parts in the reverse order of removal with a new O-ring (C).
