Main Bearing Cap

Main bearing cap bolts





Tighten the bearing cap bolts is sequence to 29 Nm (3.0 kgf-m, 22 ft. lbs.).

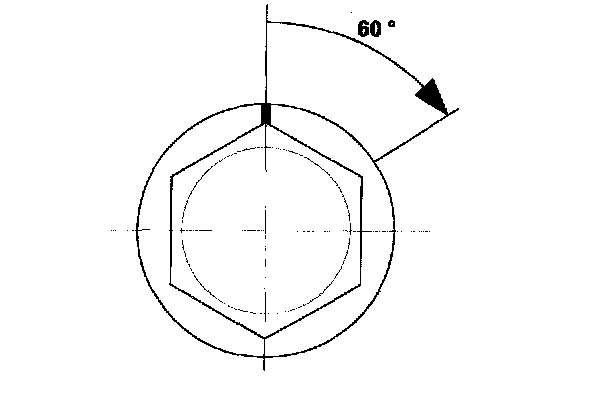

Tighten the bearing cap bolts an additional 60°.





Tighten the 8 mm bolts in sequence to 22 Nm (2.2 kgf-m, 16 ft. lbs.).
