Ignition Switch: Testing and Inspection

Test

SRS components are located in this area. Review the SRS component locations, and precautions, and procedures before performing repairs or service.

1. Make sure you have the anti-theft code for the radio, then write down the frequencies for the radio's preset buttons.
2. Disconnect the battery negative cable.

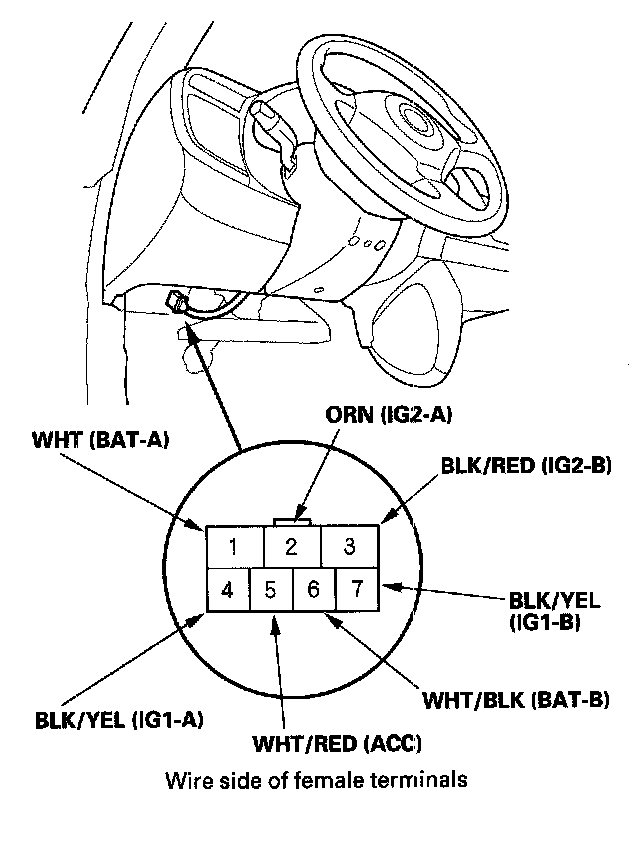

3. Disconnect the 7P connector from the under-dash fuse/relay box.

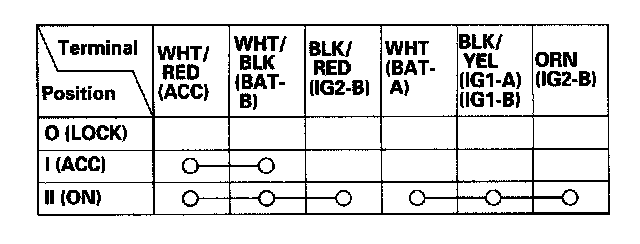

4. Check for continuity between the terminals in each switch position according to the table.
5. If the continuity checks do not agree with the table, replace the electrical switch.
6. After reconnecting the battery, enter the anti-theft code for the radio, then enter the customer's radio station presets.
