Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component |
Location |

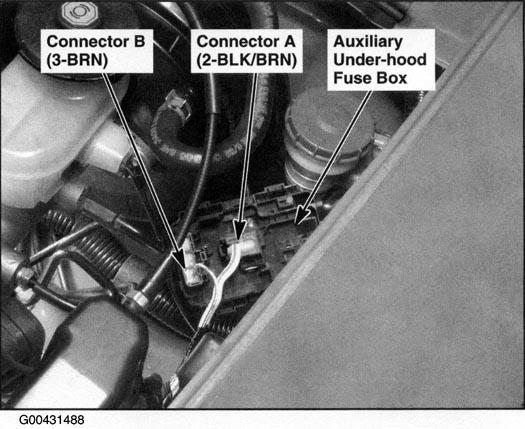

| Auxiliary Under-Hood Fuse Box |
At rear left of engine compartment. See Figure. |

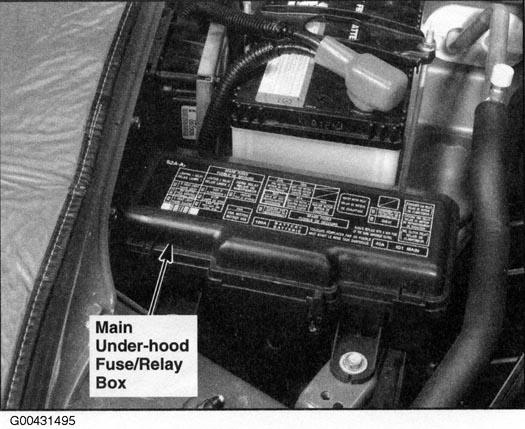

| Main Under-Hood Fuse/Relay Box |
At right rear of engine compartment. See Figure. |

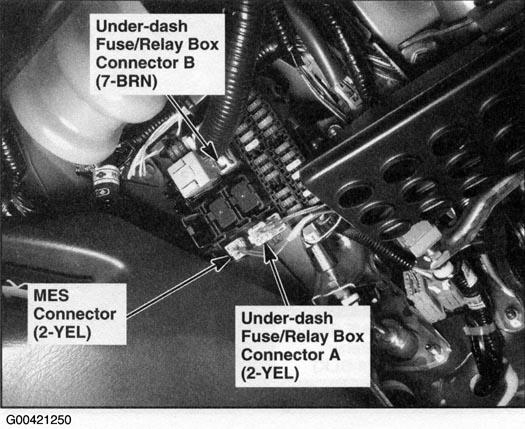

| Under-Dash Fuse/Relay Box Connector A & B |
Under left side of dash. See Figure. |
