Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Main Under-Hood Fuse/Relay Box

G00292121

Courtesy of AMERICAN HONDA MOTOR CO., INC.

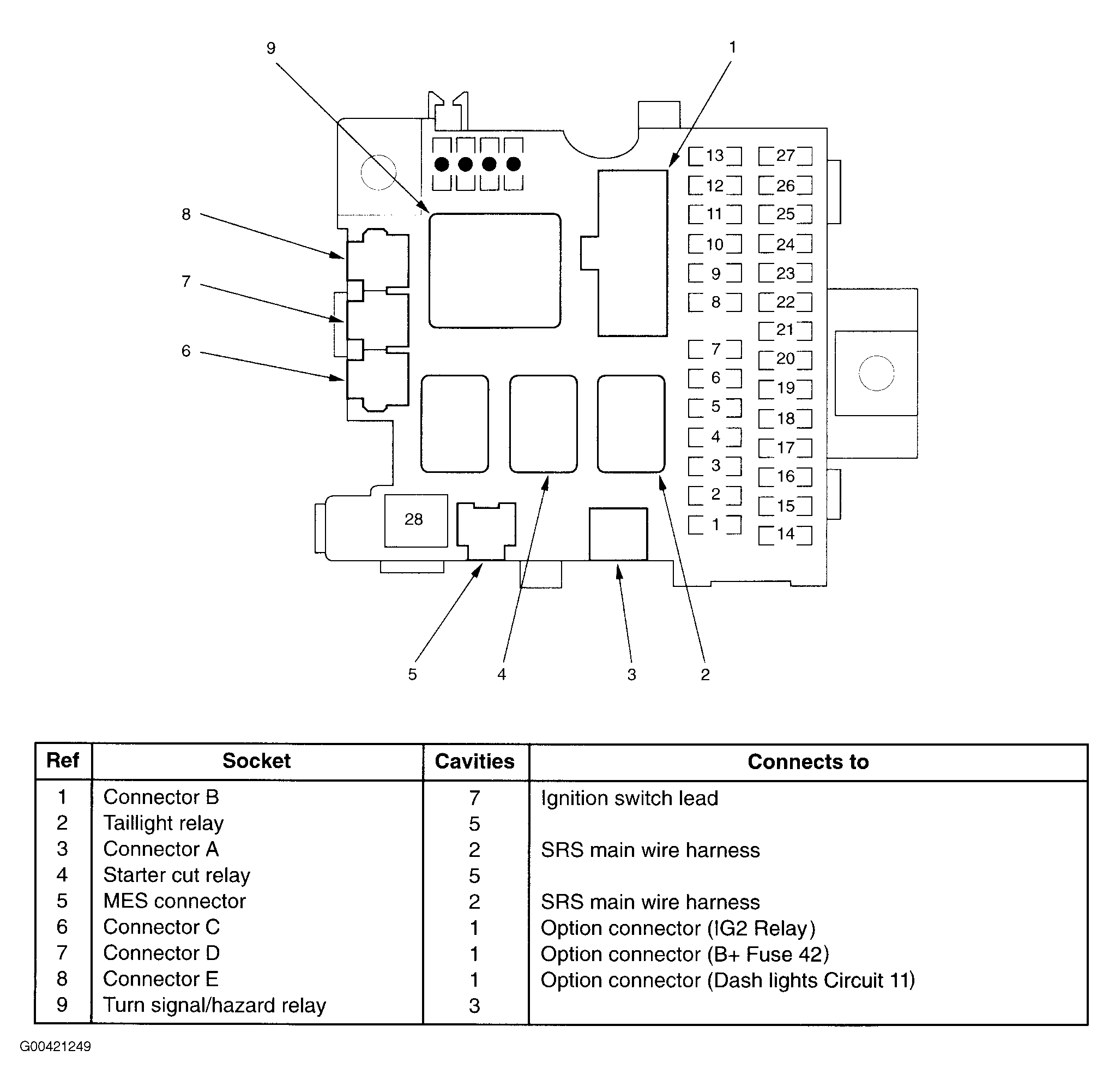

Fig 2: Under-Dash Fuse/Relay Box

G00421249

Courtesy of AMERICAN HONDA MOTOR CO., INC.

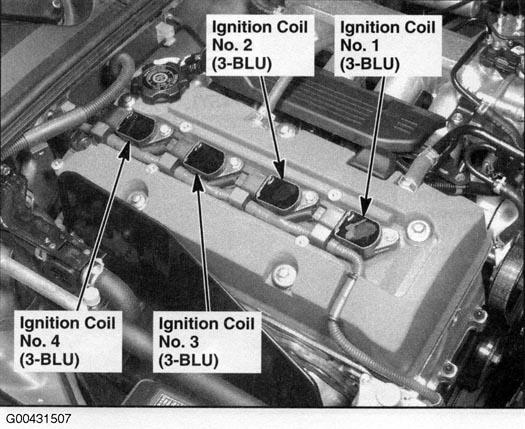

Fig 3: Top Of Engine

G00431507

Courtesy of AMERICAN HONDA MOTOR CO., INC.

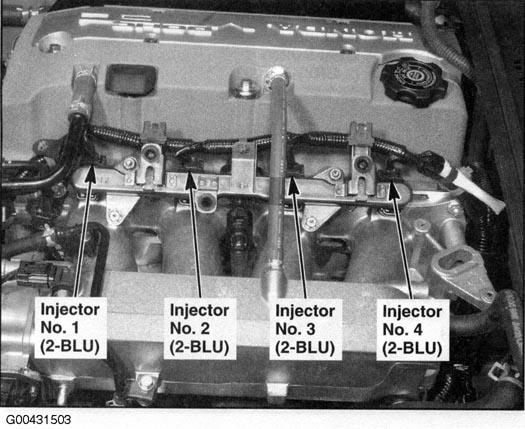

Fig 4: Top Of Engine

G00431503

Courtesy of AMERICAN HONDA MOTOR CO., INC.

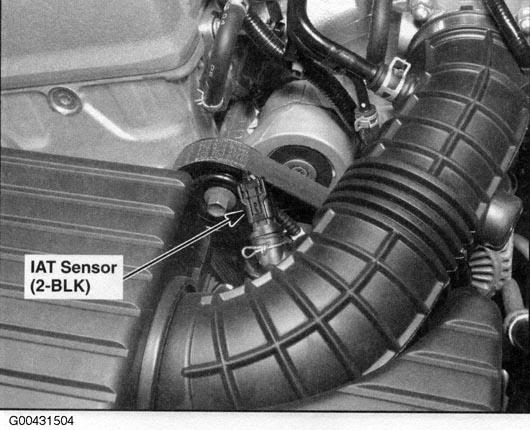

Fig 5: Left Rear Of Engine

G00431504

Courtesy of AMERICAN HONDA MOTOR CO., INC.

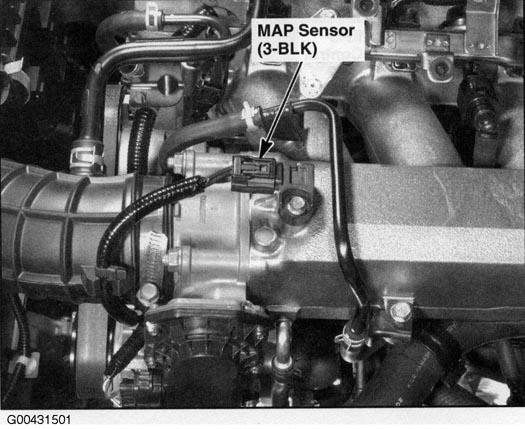

Fig 6: Left Front Of Engine

G00431501

Courtesy of AMERICAN HONDA MOTOR CO., INC.

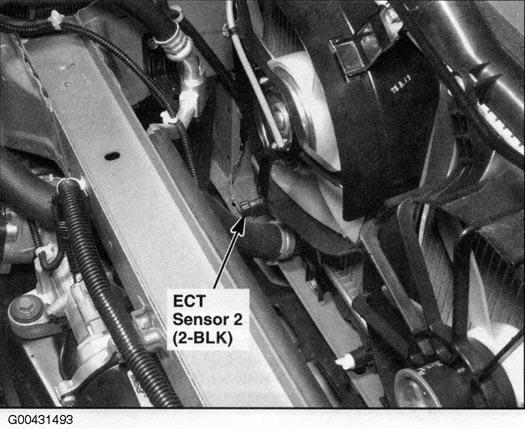

Fig 7: Left Front Of Engine Compartment

G00431493

Courtesy of AMERICAN HONDA MOTOR CO., INC.

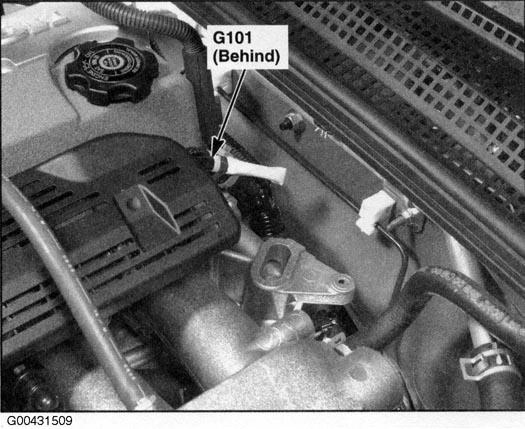

Fig 8: Rear Side Of Engine

G00431509

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 9: Right Side Of Engine Compartment

G00431510

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 10: Right Rear Of Engine Compartment

G00291856

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 11: Right Rear Of Engine Compartment

G00291857

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 12: Right Rear Of Engine Compartment

G00431495

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 13: Right Rear Of Engine Compartment

G00291860

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 14: Engine Compartment (Below Front Beam)

G00291862

Courtesy of AMERICAN HONDA MOTOR CO., INC.

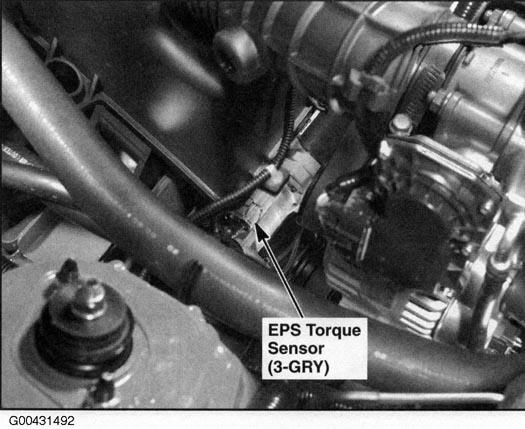

Fig 15: Lower Left Side Of Engine Compartment

G00431492

Courtesy of AMERICAN HONDA MOTOR CO., INC.

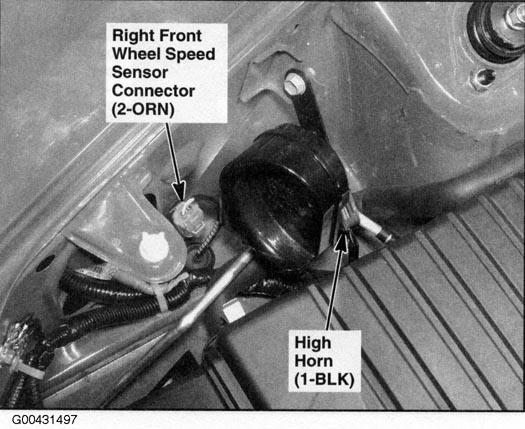

Fig 16: Right Front Of Engine Compartment

G00431497

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 17: Left Front Of Engine Compartment

G00291866

Courtesy of AMERICAN HONDA MOTOR CO., INC.

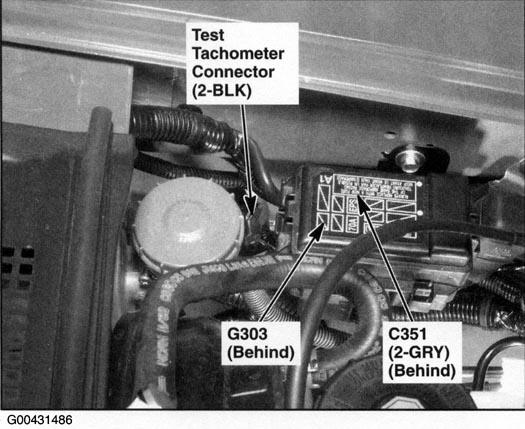

Fig 18: Left Rear Of Engine Compartment

G00431486

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 19: Left Rear Of Engine Compartment

G00431488

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 20: Left Rear Of Engine Compartment

G00431489

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 21: Left Rear Of Engine Compartment

G00291873

Courtesy of AMERICAN HONDA MOTOR CO., INC.

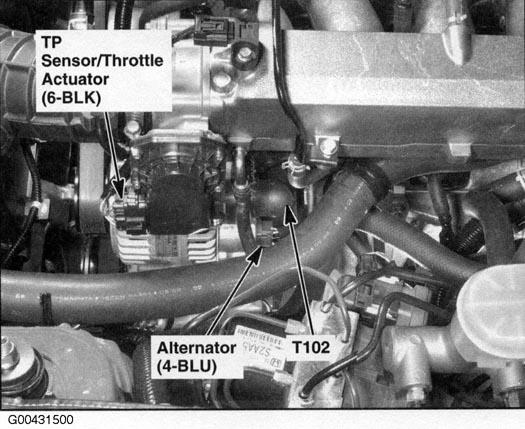

Fig 22: Left Front Of Engine

G00431500

Courtesy of AMERICAN HONDA MOTOR CO., INC.

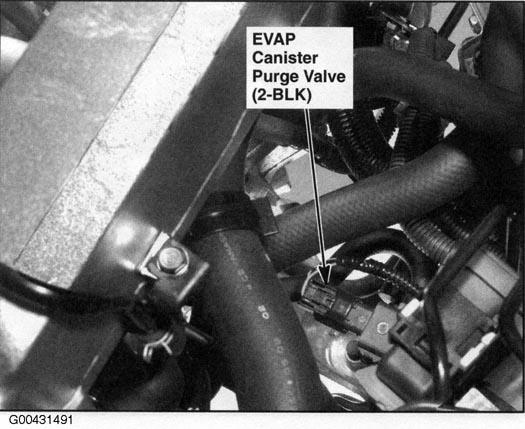

Fig 23: Left Rear Of Engine Compartment

G00431491

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 24: Lower Left Side Of Engine

G00291876

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 25: Lower Left Side Of Engine

G00291877

Courtesy of AMERICAN HONDA MOTOR CO., INC.

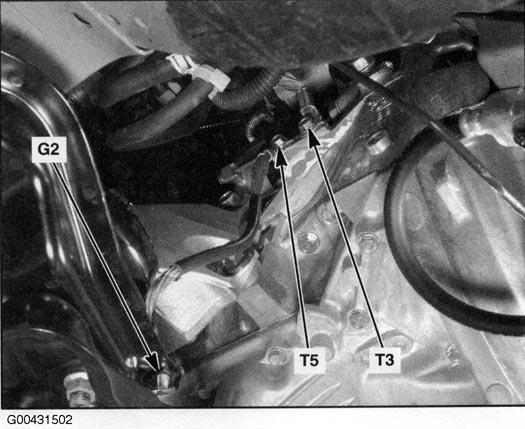

Fig 26: Lower Left Side Of Engine

G00431502

Courtesy of AMERICAN HONDA MOTOR CO., INC.

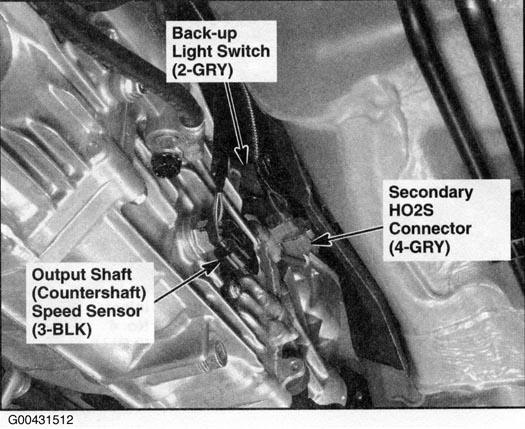

Fig 27: Left Side Of Transmission

G00431512

Courtesy of AMERICAN HONDA MOTOR CO., INC.

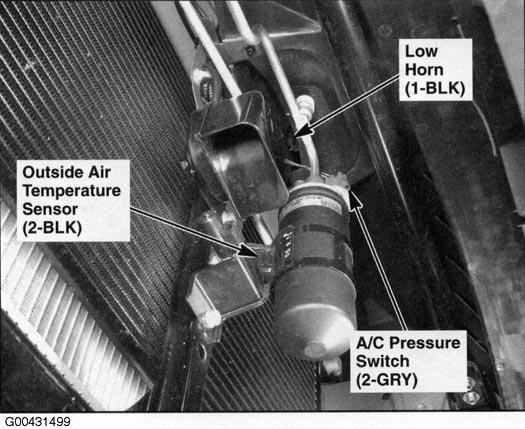

Fig 28: Behind Center Of Front Bumper

G00431499

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 29: Behind Right Front Wheelwell

G00291890

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 30: Below Cowl Cover

G00291891

Courtesy of AMERICAN HONDA MOTOR CO., INC.

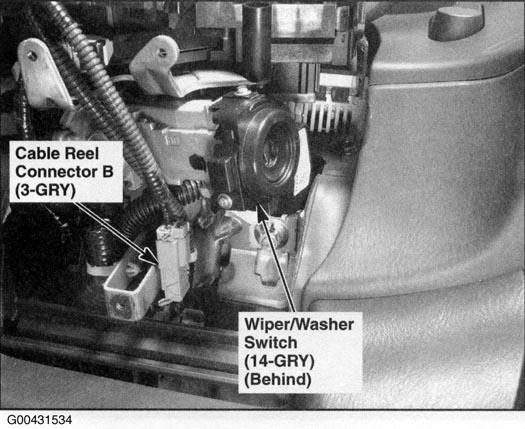

Fig 31: Under Steering Column Cover

G00431534

Courtesy of AMERICAN HONDA MOTOR CO., INC.

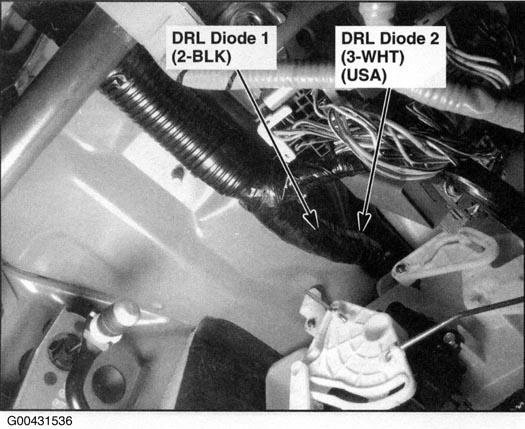

Fig 32: Behind Lower Center Of Dash

G00291901

Courtesy of AMERICAN HONDA MOTOR CO., INC.

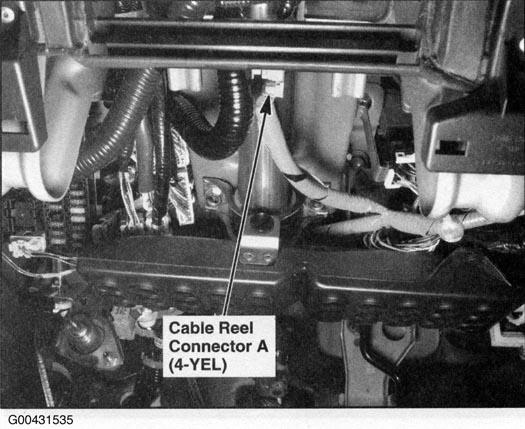

Fig 33: Under Steering Column Cover

G00431535

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 34: Right Side Of Steering Column

G00431533

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 35: Under Left Side Of Dash

G00291904

Courtesy of AMERICAN HONDA MOTOR CO., INC.

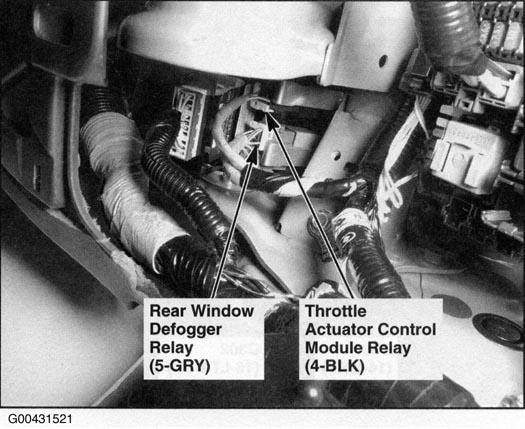

Fig 36: Under Left Side Of Dash

G00431521

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 37: Behind Left Kick Panel

G00291909

Courtesy of AMERICAN HONDA MOTOR CO., INC.

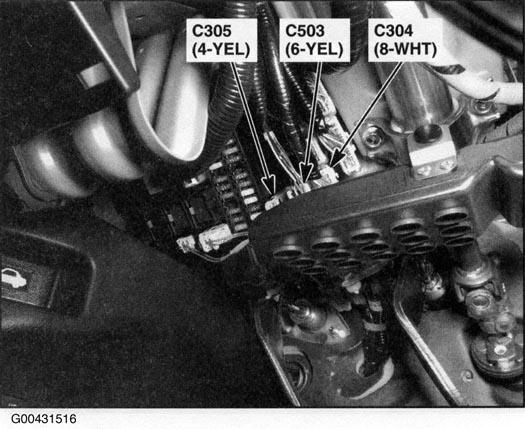

Fig 38: Under Left Side Of Dash

G00431516

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 39: Behind Left Kick Panel

G00431528

Courtesy of AMERICAN HONDA MOTOR CO., INC.

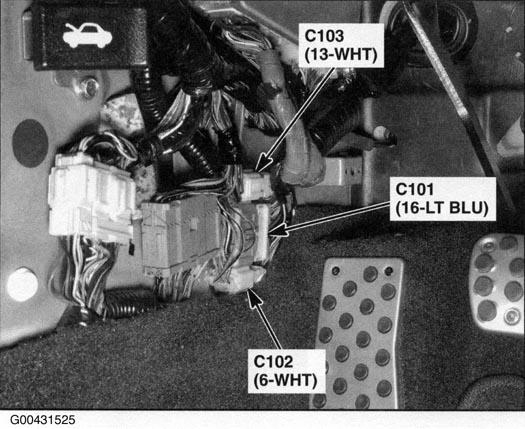

Fig 40: Behind Left Kick Panel

G00431525

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 41: Under Left Side Of Dash

G00431514

Courtesy of AMERICAN HONDA MOTOR CO., INC.

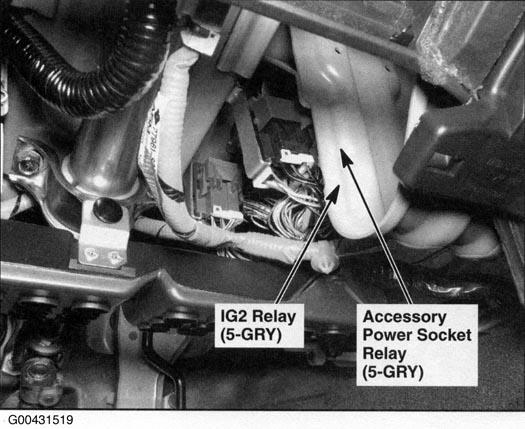

Fig 42: Right Side Of Steering Column

G00431519

Courtesy of AMERICAN HONDA MOTOR CO., INC.

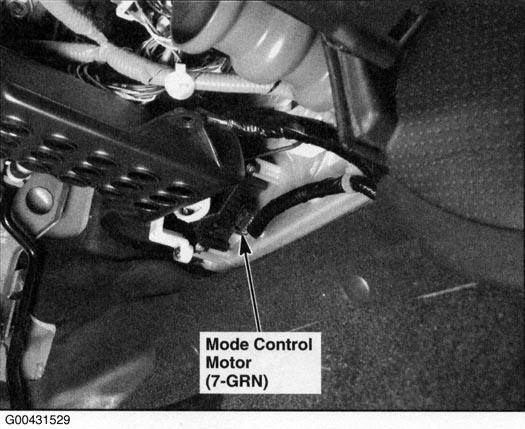

Fig 43: Under Left Side Of Dash

G00431529

Courtesy of AMERICAN HONDA MOTOR CO., INC.

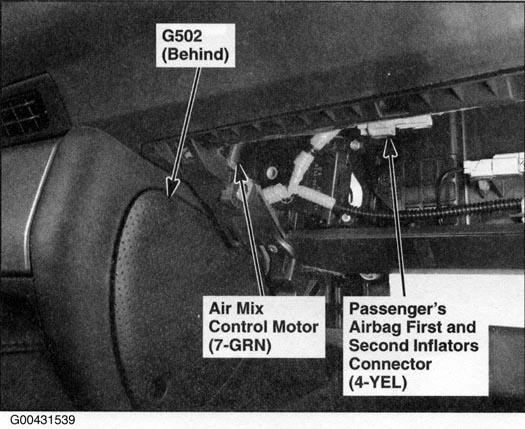

Fig 44: Under Right Side Of Dash

G00431539

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 45: Under Right Side Of Dash

G00291919

Courtesy of AMERICAN HONDA MOTOR CO., INC.

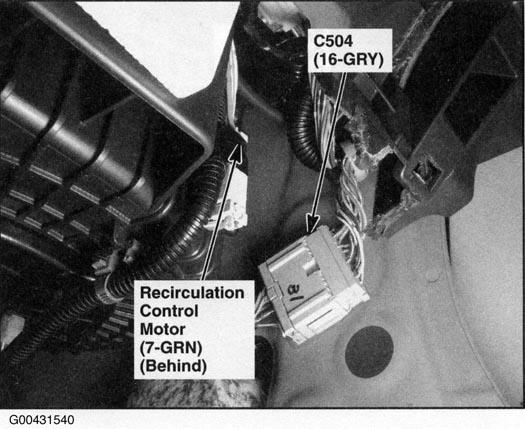

Fig 46: Under Right Side Of Dash

G00431540

Courtesy of AMERICAN HONDA MOTOR CO., INC.

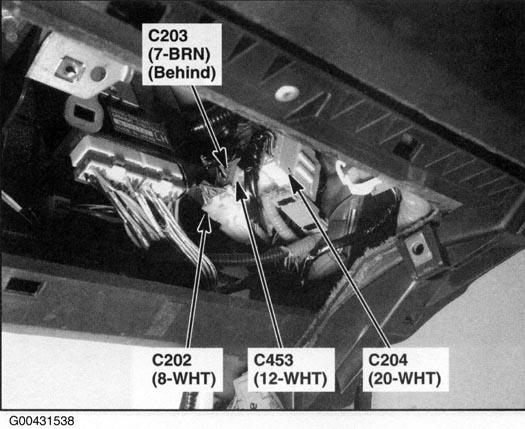

Fig 47: Under Right Side Of Dash

G00431538

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 48: Under Right Side Of Dash

G00291922

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 49: Under Right Side Of Dash

G00291923

Courtesy of AMERICAN HONDA MOTOR CO., INC.

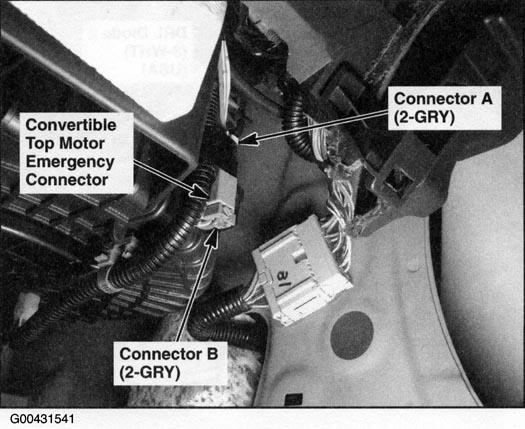

Fig 50: Under Right Side Of Dash

G00431541

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 51: Below Left & Right Side Roll Bar Upper Trim

G00291936

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 52: Top Of Fuel Tank

G00291937

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 53: Driver's & Passenger's Door

G00291939

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 54: Driver's & Passenger's Door

G00291940

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 55: Passenger's Door

G00291943

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 56: Left Front Of Trunk

G00291944

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 57: Left Rear Of Trunk

G00291945

Courtesy of AMERICAN HONDA MOTOR CO., INC.

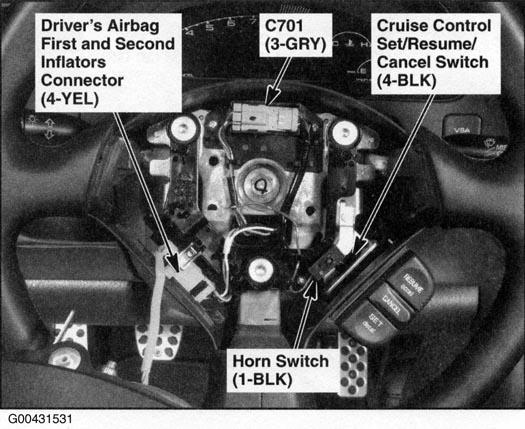

Fig 58: Inside Steering Wheel

G00431531

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 59: Left Side Of Trunk

G00291956

Courtesy of AMERICAN HONDA MOTOR CO., INC.

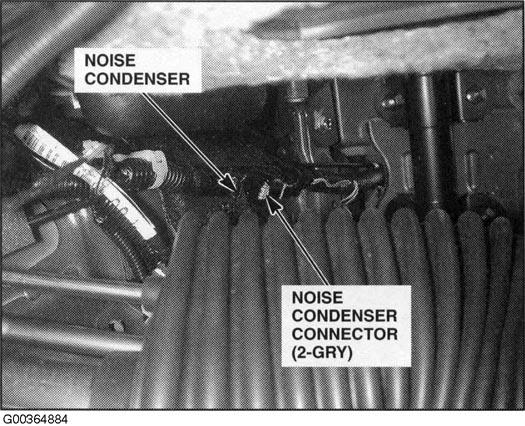

Fig 60: Left Side Of Trunk

G00364884

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 61: Below Center Console

G00291962

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 62: Left Side Of Trunk

G00291963

Courtesy of AMERICAN HONDA MOTOR CO., INC.

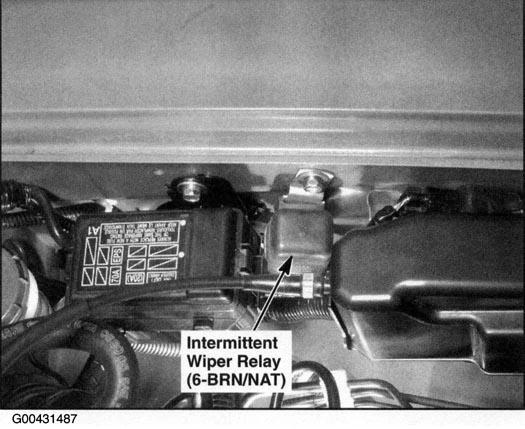

Fig 63: Left Side Of Engine Compartment

G00431487

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 64: Left Rear Of Engine Compartment

G00431490

Courtesy of AMERICAN HONDA MOTOR CO., INC.

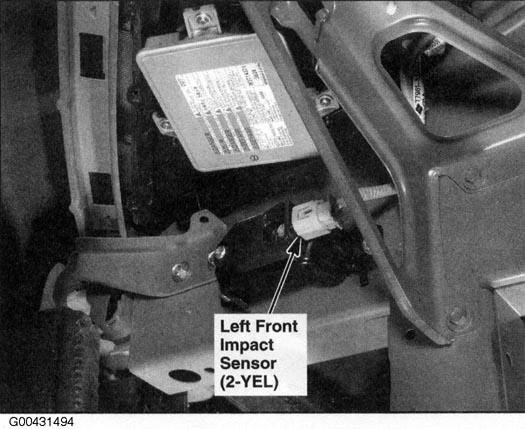

Fig 65: Left & Right Side Of Engine Compartment

G00431494

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 66: Right Side Of Engine Compartment

G00431496

Courtesy of AMERICAN HONDA MOTOR CO., INC.

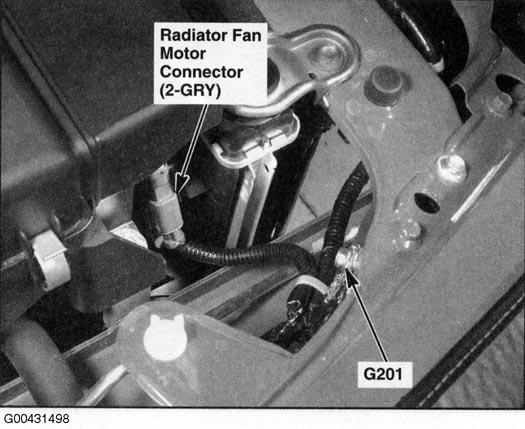

Fig 67: Right Front Of Engine Compartment

G00431498

Courtesy of AMERICAN HONDA MOTOR CO., INC.

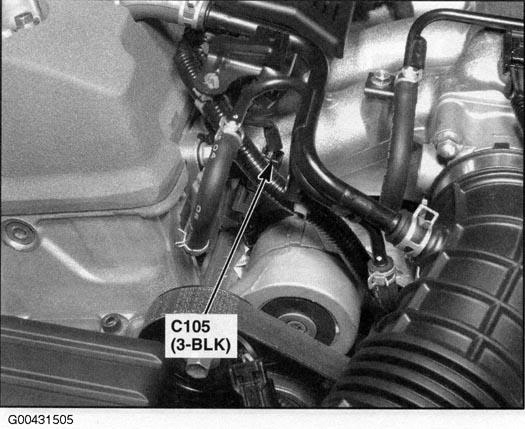

Fig 68: Top Front Of Engine

G00431505

Courtesy of AMERICAN HONDA MOTOR CO., INC.

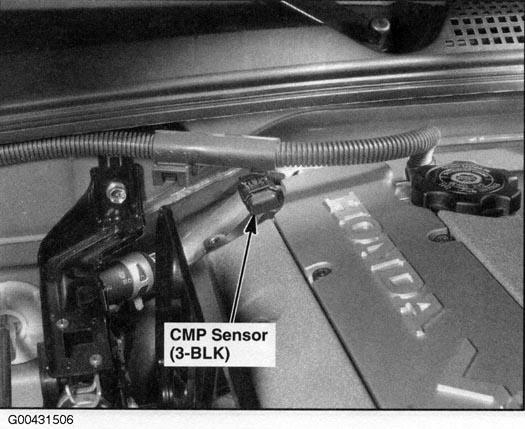

Fig 69: Rear Of Engine

G00431506

Courtesy of AMERICAN HONDA MOTOR CO., INC.

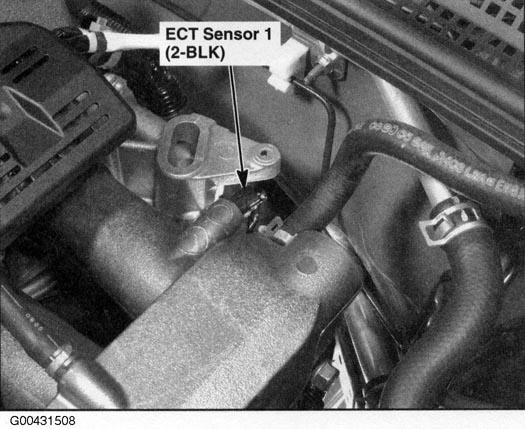

Fig 70: Top Rear Of Engine

G00431508

Courtesy of AMERICAN HONDA MOTOR CO., INC.

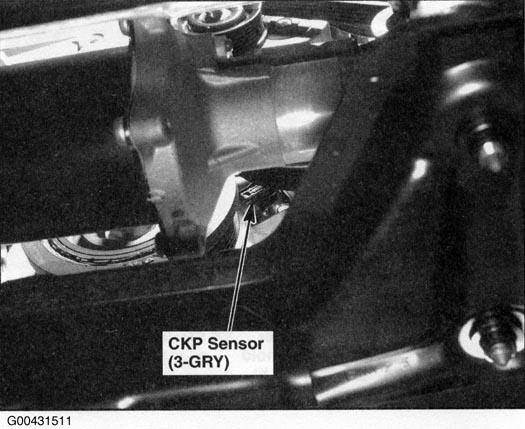

Fig 71: Lower Front Of Engine

G00431511

Courtesy of AMERICAN HONDA MOTOR CO., INC.

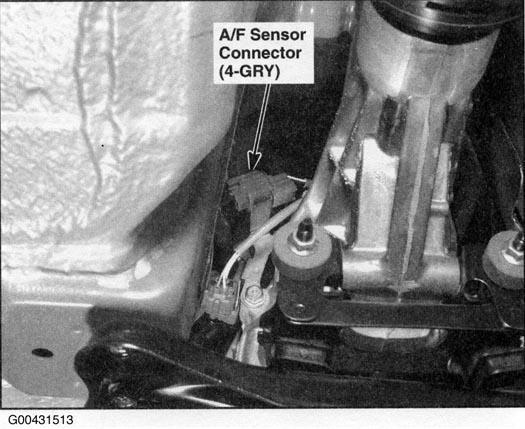

Fig 72: Rear Of Transmission

G00431513

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 73: Under Left Side Of Dash

G00431515

Courtesy of AMERICAN HONDA MOTOR CO., INC.

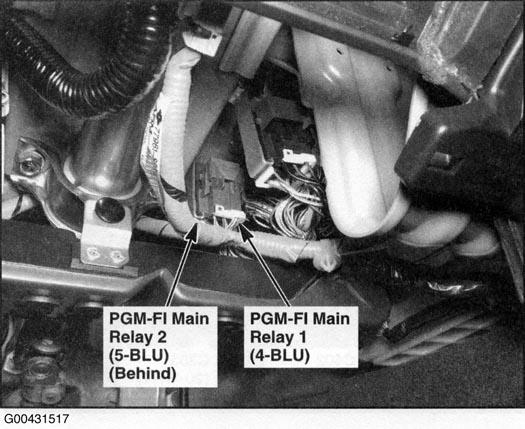

Fig 74: Under Left Side Of Dash

G00431517

Courtesy of AMERICAN HONDA MOTOR CO., INC.

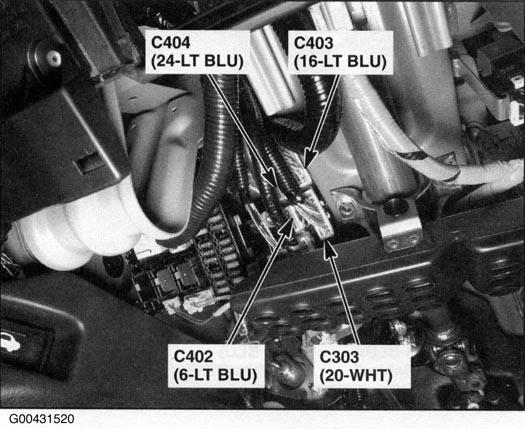

Fig 75: Under Left Side Of Dash

G00431520

Courtesy of AMERICAN HONDA MOTOR CO., INC.

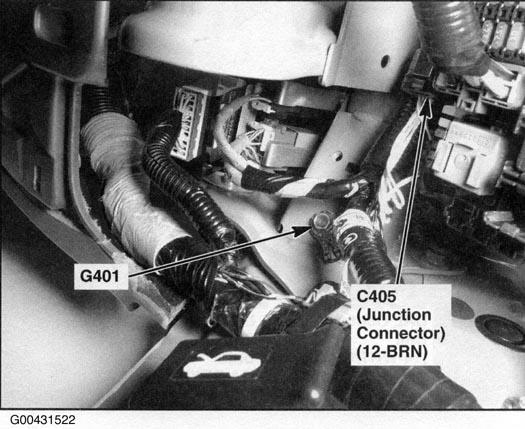

Fig 76: Under Left Side Of Dash

G00431522

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 77: Under Left Side Of Dash

G00431523

Courtesy of AMERICAN HONDA MOTOR CO., INC.

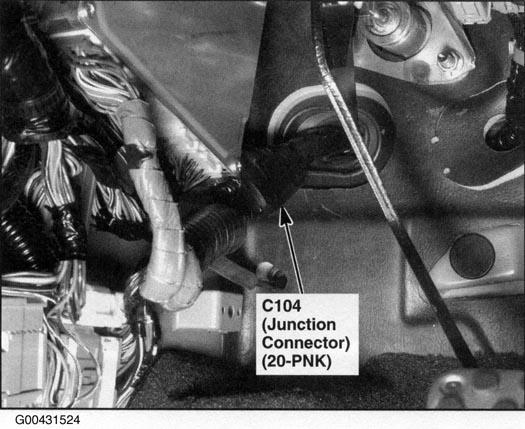

Fig 78: Behind Left Kick Panel

G00431524

Courtesy of AMERICAN HONDA MOTOR CO., INC.

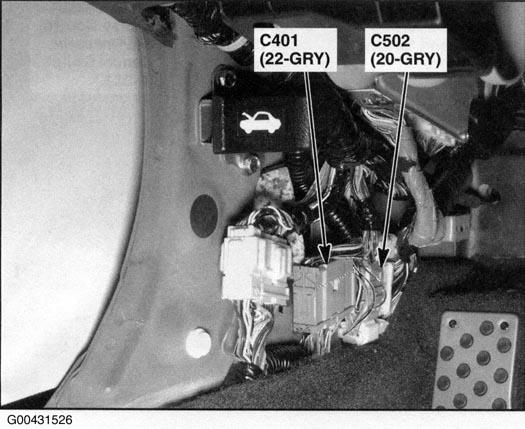

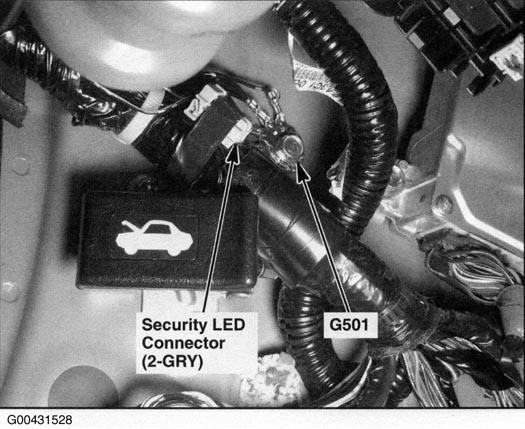

Fig 79: Behind Left Kick Panel

G00431526

Courtesy of AMERICAN HONDA MOTOR CO., INC.

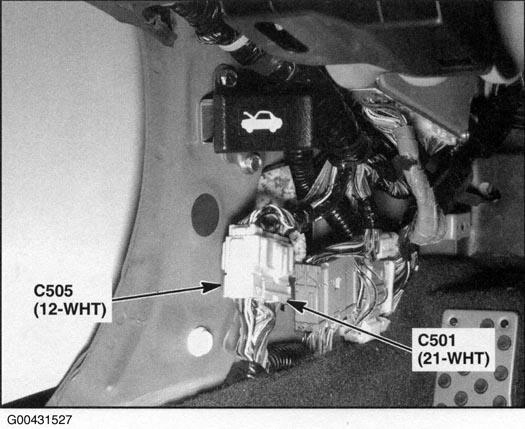

Fig 80: Behind Left Kick Panel

G00431527

Courtesy of AMERICAN HONDA MOTOR CO., INC.

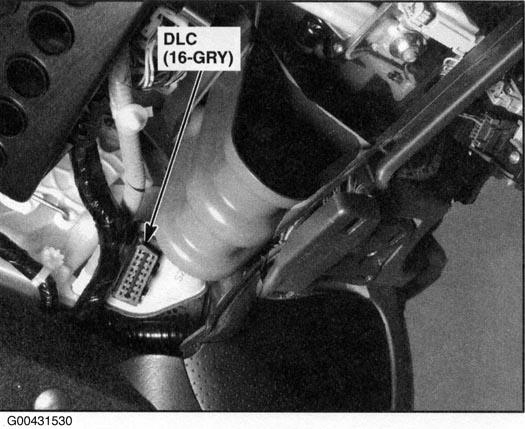

Fig 81: Under Left Side Of Dash

G00431530

Courtesy of AMERICAN HONDA MOTOR CO., INC.

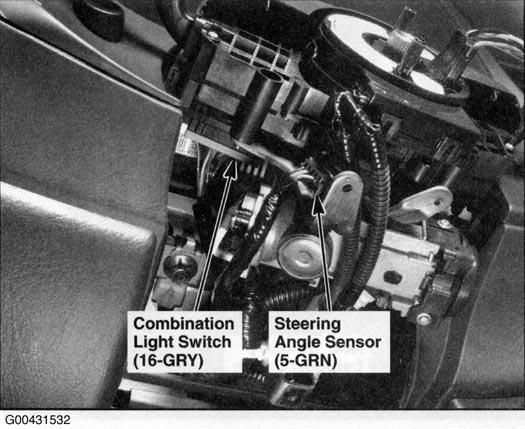

Fig 82: Under Steering Column Cover

G00431532

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 83: Under Middle Of Dash

G00431536

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 84: Under Right Side Of Dash

G00431537

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 85: Under Right Side Of Dash

G00421233

Courtesy of AMERICAN HONDA MOTOR CO., INC.

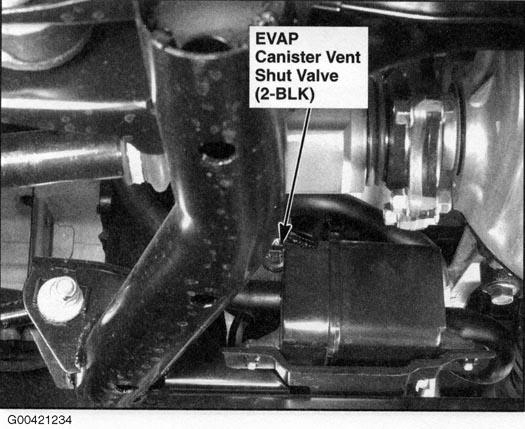

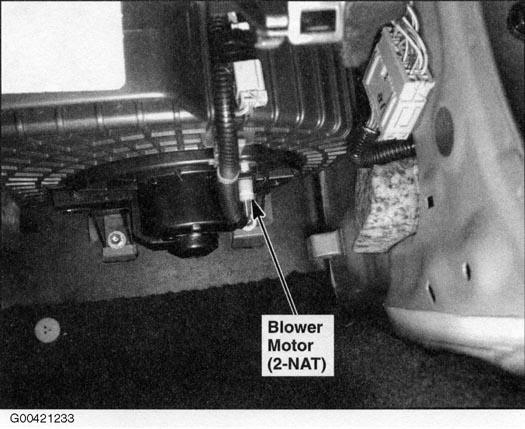

Fig 86: Under Left Side Of Vehicle

G00421234

Courtesy of AMERICAN HONDA MOTOR CO., INC.

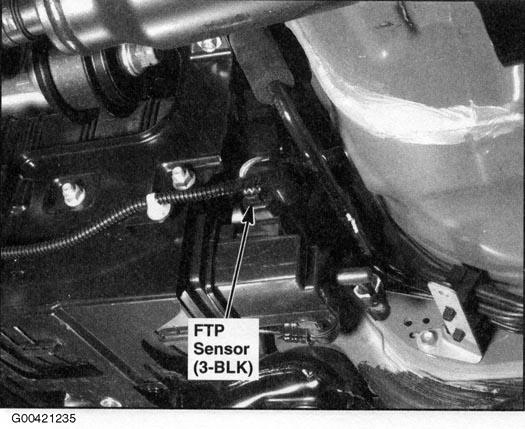

Fig 87: Under Left Side Of Vehicle

G00421235

Courtesy of AMERICAN HONDA MOTOR CO., INC.

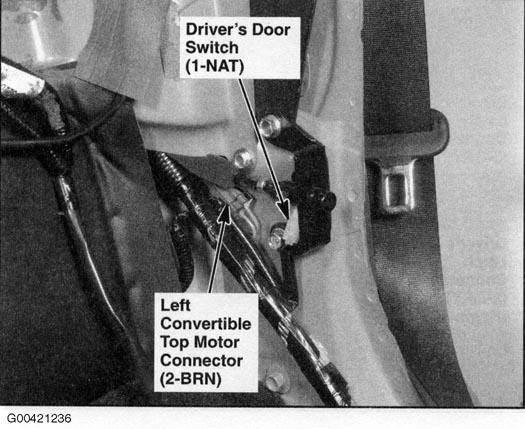

Fig 88: Left "C" Pillar

G00421236

Courtesy of AMERICAN HONDA MOTOR CO., INC.

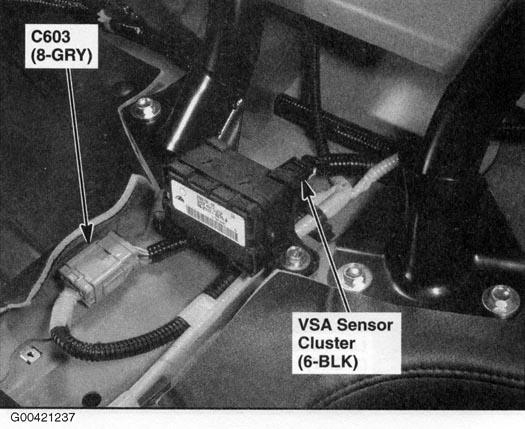

Fig 89: Under Rear Of Center Console

G00421237

Courtesy of AMERICAN HONDA MOTOR CO., INC.

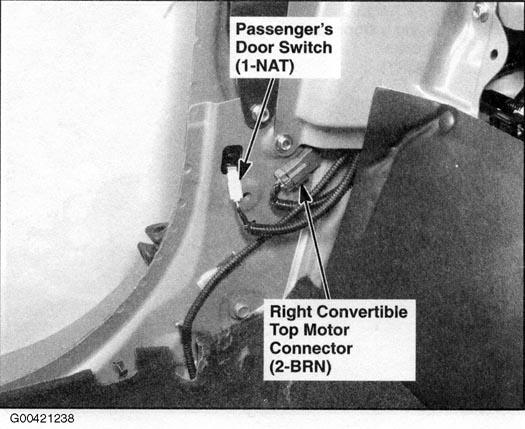

Fig 90: Right "C " Pillar

G00421238

Courtesy of AMERICAN HONDA MOTOR CO., INC.

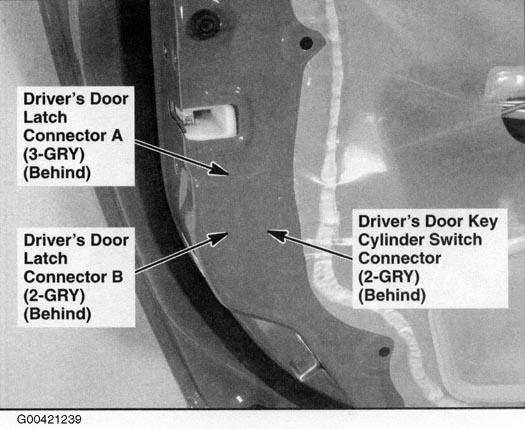

Fig 91: Driver's Door

G00421239

Courtesy of AMERICAN HONDA MOTOR CO., INC.

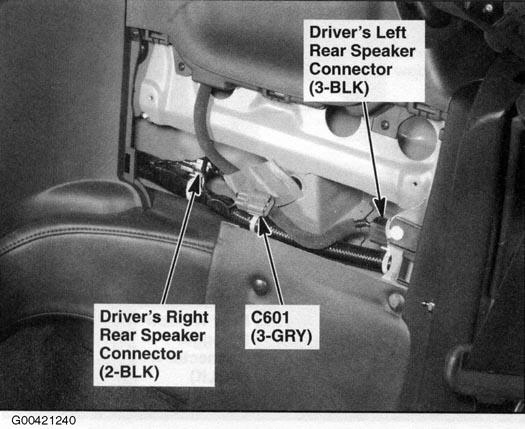

Fig 92: Driver's Roll Bar

G00421240

Courtesy of AMERICAN HONDA MOTOR CO., INC.

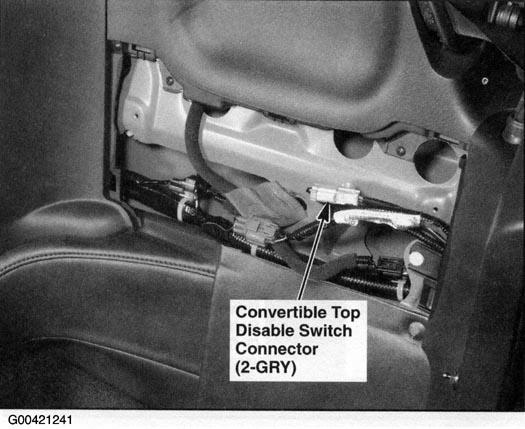

Fig 93: Driver's Roll Bar

G00421241

Courtesy of AMERICAN HONDA MOTOR CO., INC.

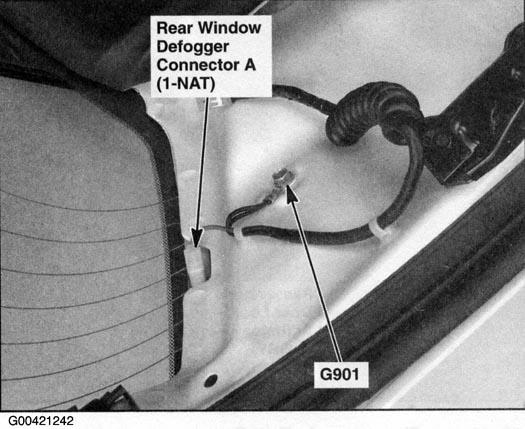

Fig 94: Left Side Of Removable Hardtop

G00421242

Courtesy of AMERICAN HONDA MOTOR CO., INC.

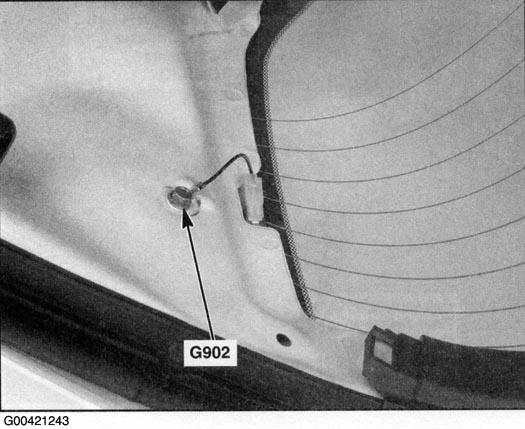

Fig 95: Right Side Of Removable Hardtop

G00421243

Courtesy of AMERICAN HONDA MOTOR CO., INC.

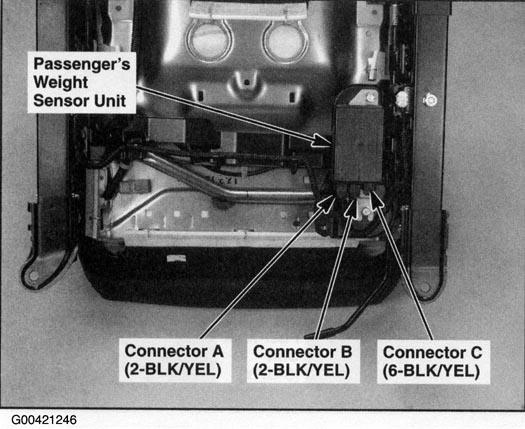

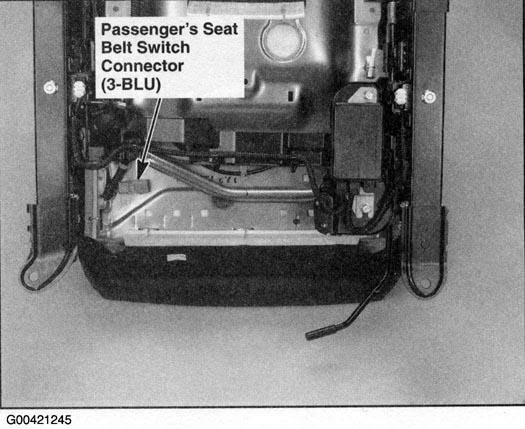

Fig 96: Under Passenger's Seat

G00421245

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 97: Under Passenger's Seat

G00421246

Courtesy of AMERICAN HONDA MOTOR CO., INC.

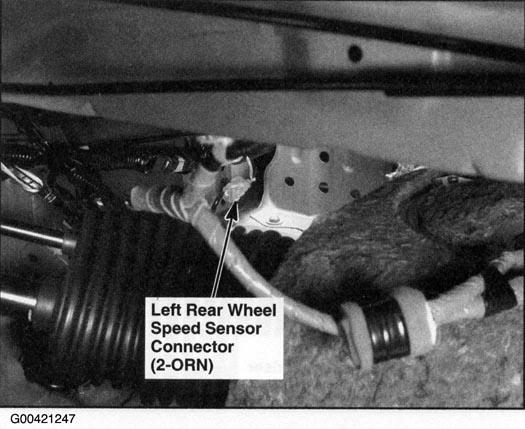

Fig 98: Left & Right Side Of Trunk

G00421247

Courtesy of AMERICAN HONDA MOTOR CO., INC.

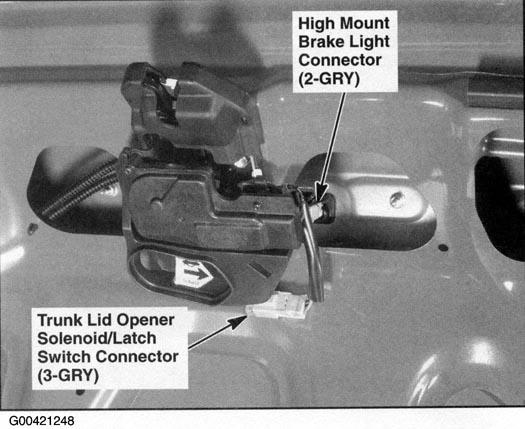

Fig 99: Center Rear Of Trunk Lid

G00421248

Courtesy of AMERICAN HONDA MOTOR CO., INC.

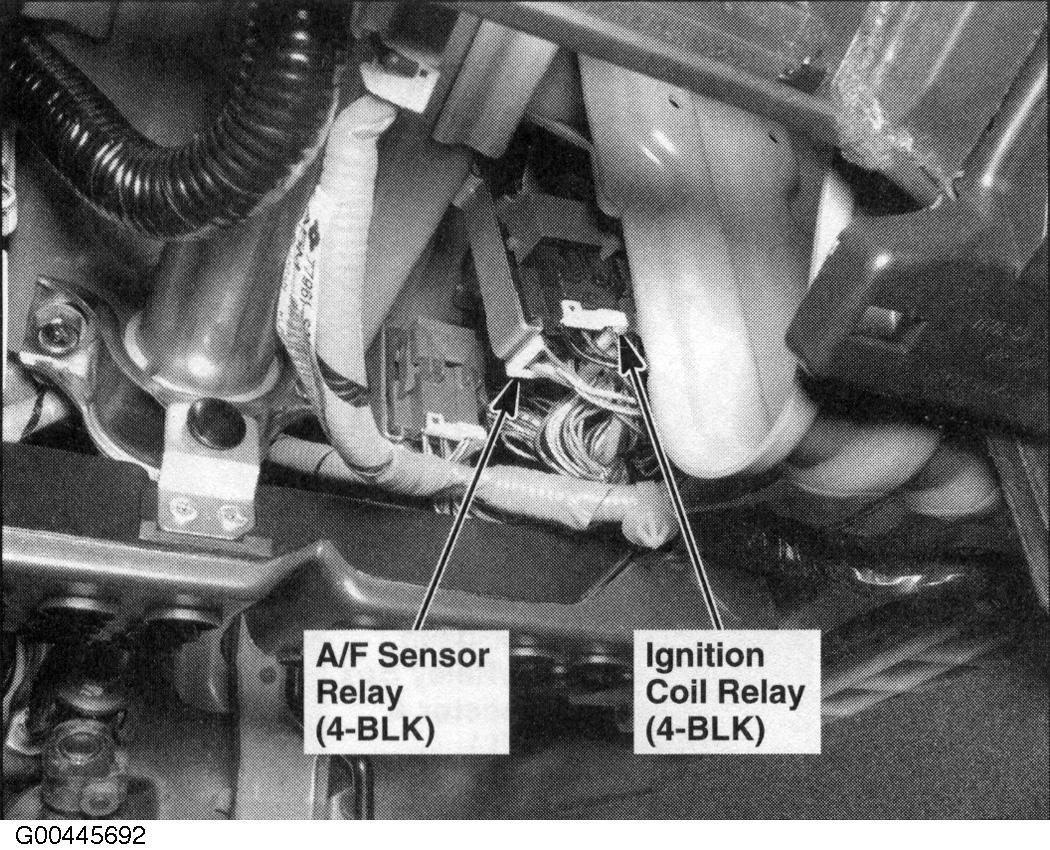

Fig 100: Under Left Side Of Dash

G00421250

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 101: Under Left Side Of Dash

G00445692

Courtesy of AMERICAN HONDA MOTOR CO., INC.

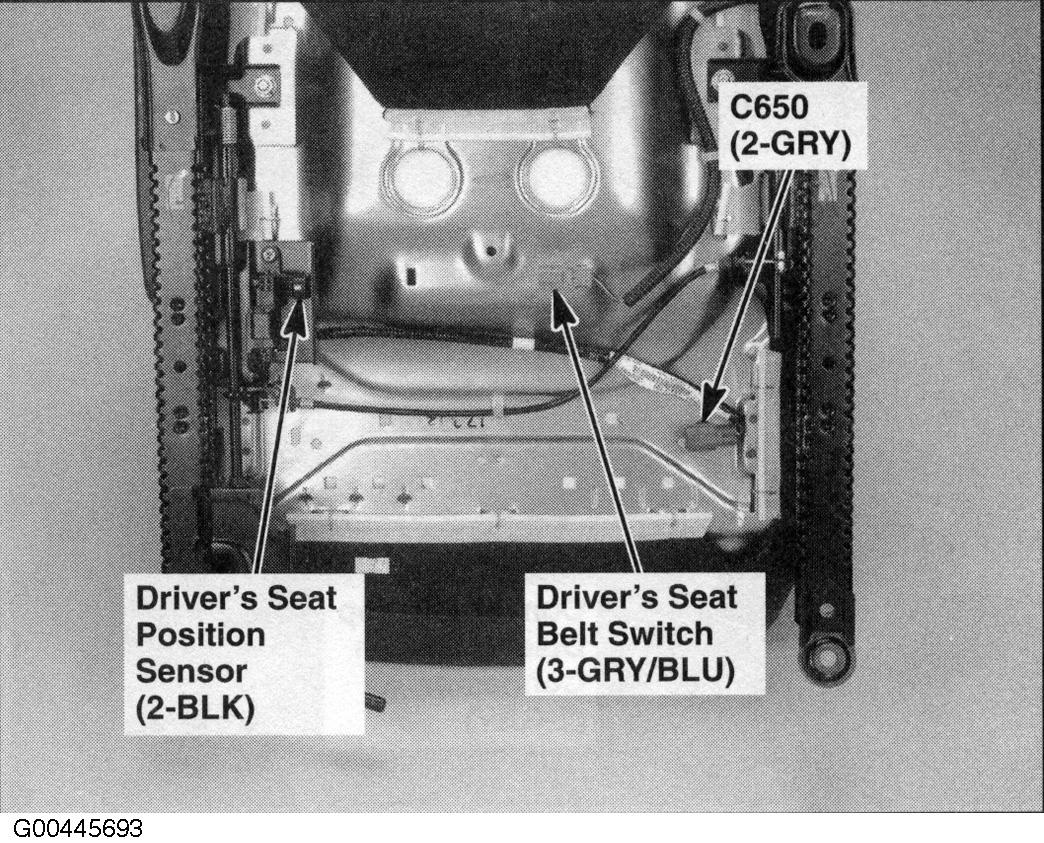

Fig 102: Under Driver's Seat

G00445693

Courtesy of AMERICAN HONDA MOTOR CO., INC.

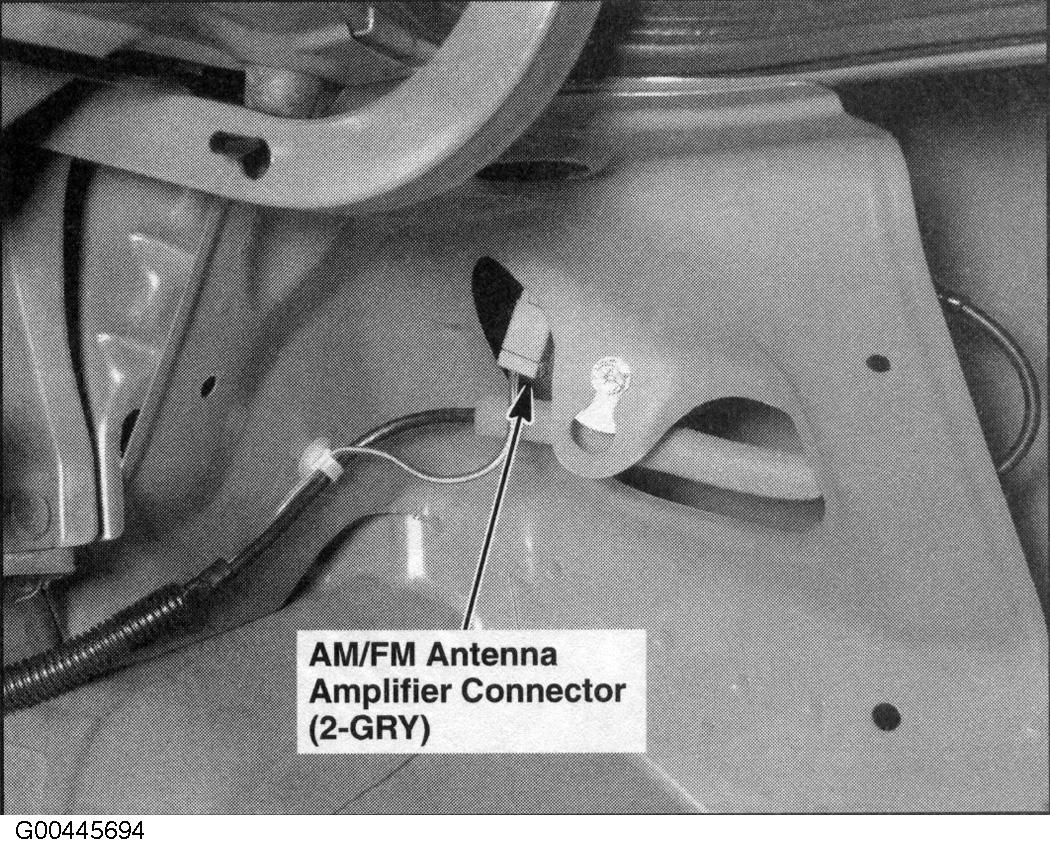

Fig 103: At Right Front Of Trunk

G00445694
