A/F Sensor Replacement

A/F Sensor Replacement

Special Tools Required
02 sensor socket wrench. Snap-on YA8875, SP Tools 93750, or equivalent, commercially available

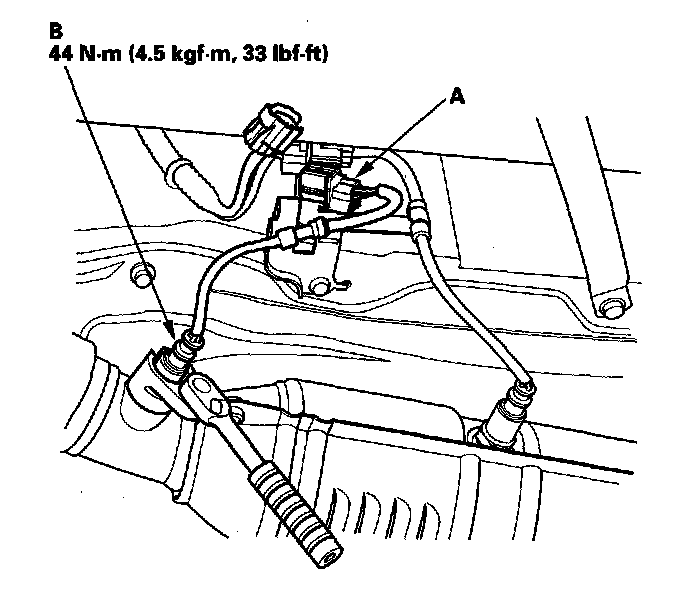

1. Disconnect the A/F sensor 4P connector (A), then remove the A/F sensor (B).






2. Install the parts in the reverse order of removal.
