Alignment

Caster
Caster angle 1° 50' ± 1°

Camber
Camber angle:
Front:
Except SC model -0° 13' ± 45'
SC model -0° 24' ± 45'
(Maximum difference between the front left and right side: 1°00')
Rear:
Except SC model -1° 00' ± 45'
SC model -1° 06' ± 45'

Toe-in
Front toe-in 0 ± 3 mm (0 ± 0.12 in.)
Rear toe-in 2 +2 -1 mm (0.08 +0.08 -0.04 in.)

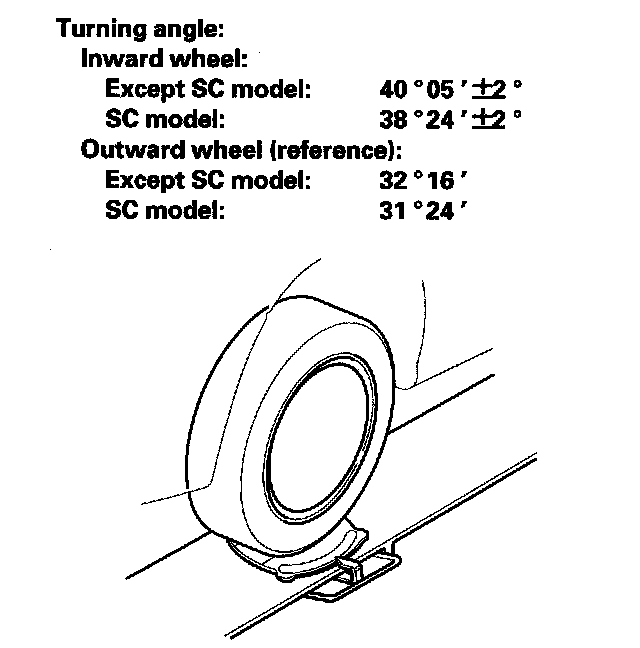

Turning Angle
