Overhaul Specifications

Flywheel





Torque the flywheel mounting bolts (B) in a crisscross pattern in several steps.

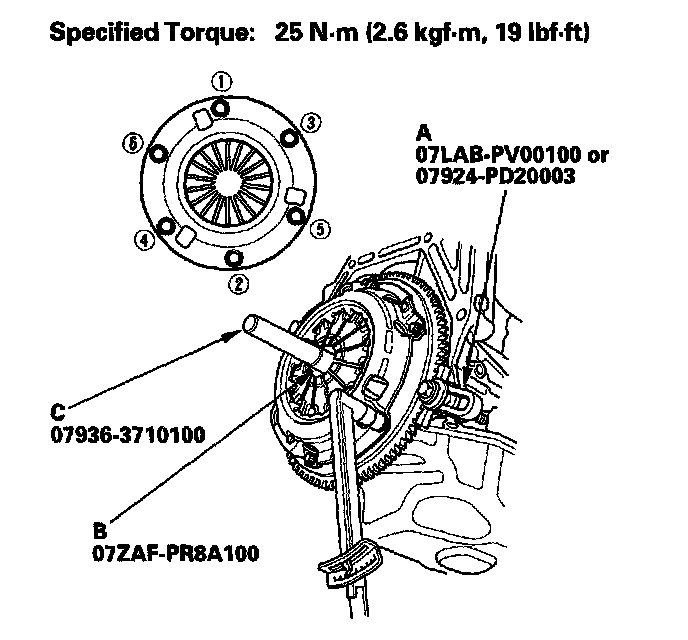

Pressure Plate





Torque the mounting bolts in a crisscross pattern. Tighten the bolts in several steps.

For information regarding Clutch Overhaul Specifications, please refer to Service and Repair. Service and Repair
