Wiper Control Module: Locations

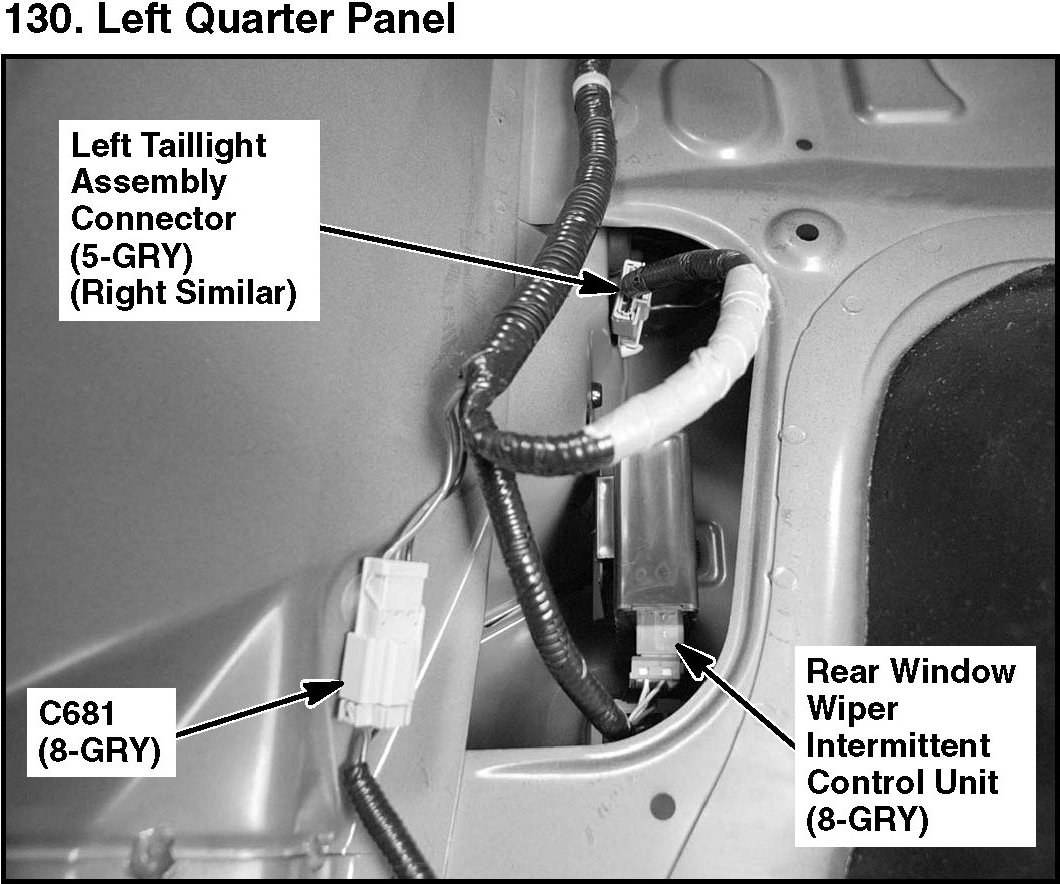

130. Left Quarter Panel:

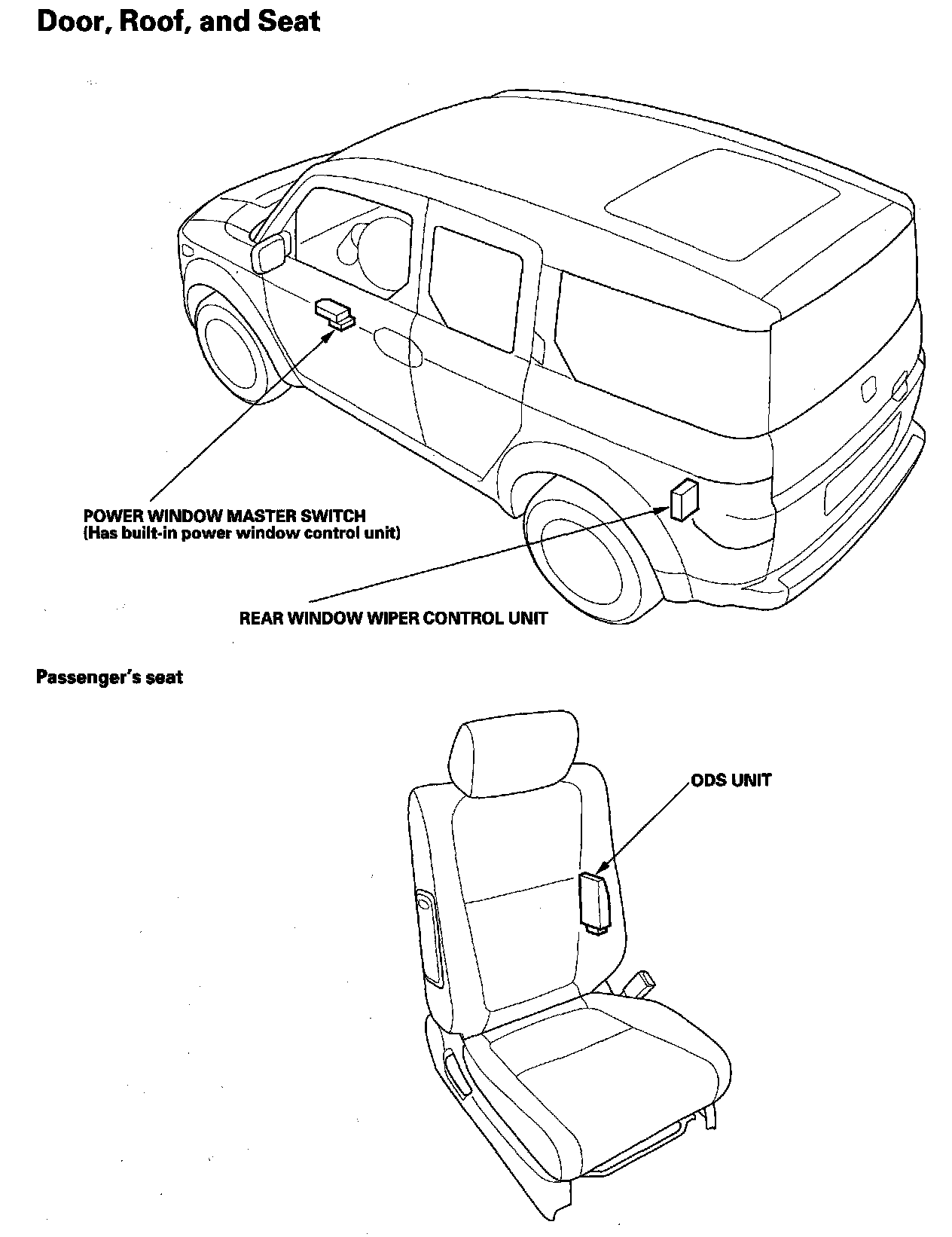

Relay And Control Unit Locations Door, Roof, And Seat:

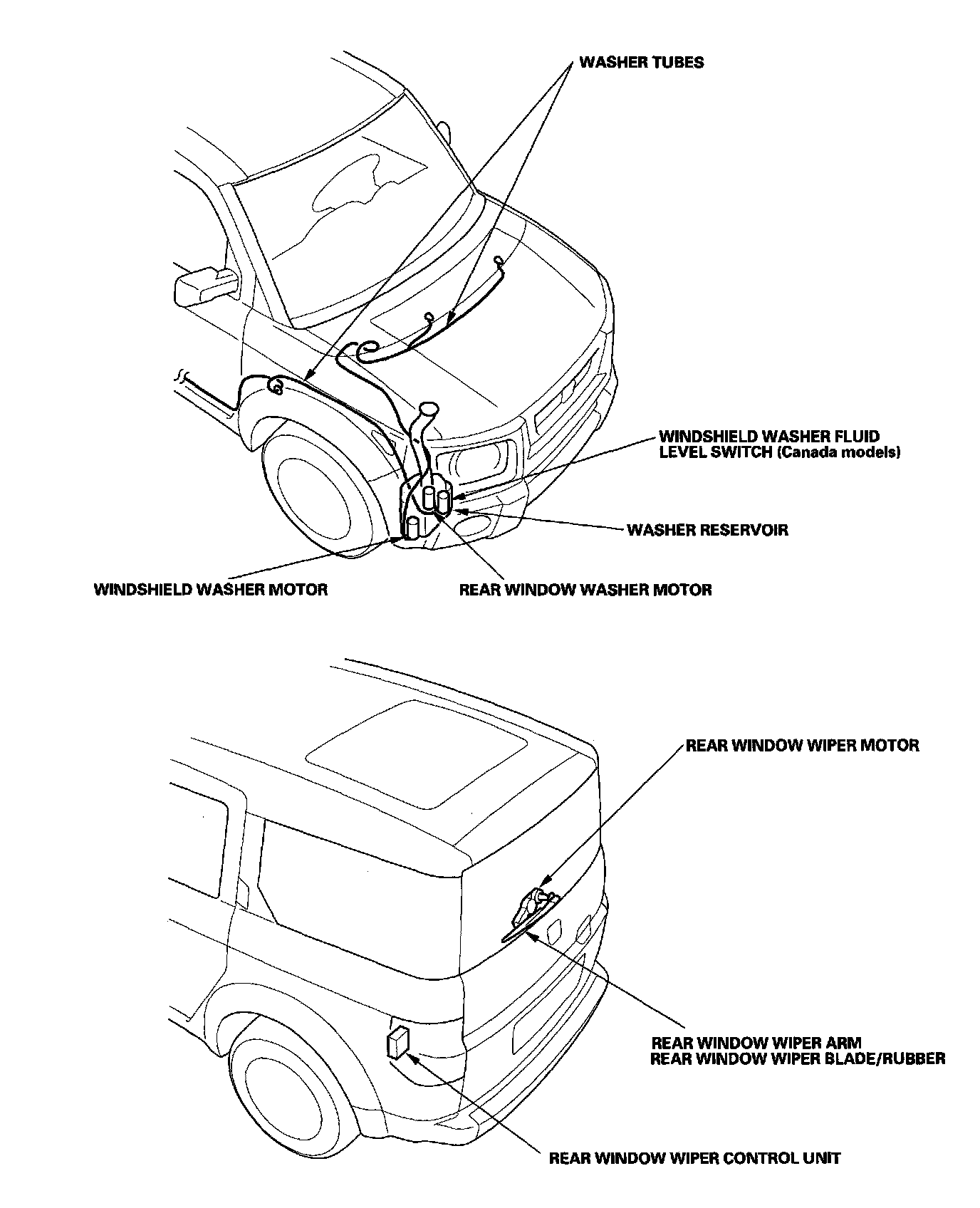

Wipers/Washers Component Location Index:
