Accelerator Pedal

Accelerator Pedal Replacement

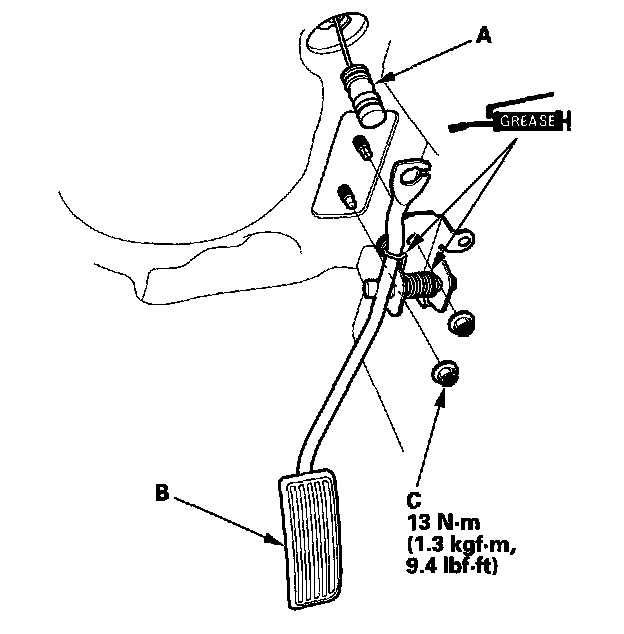

1. Remove the throttle cable (A) from the accelerator pedal (B).






2. Remove the nuts (C) and the accelerator pedal.
3. Install the parts in the reverse order of removal.
