DTC P1730: Problem in Shift Control System:: Notes

• Shift Solenoid Valves A or D Stuck OFF
• Shift Solenoid Valve B Stuck ON
• Shift Valves A, B, or D Stuck

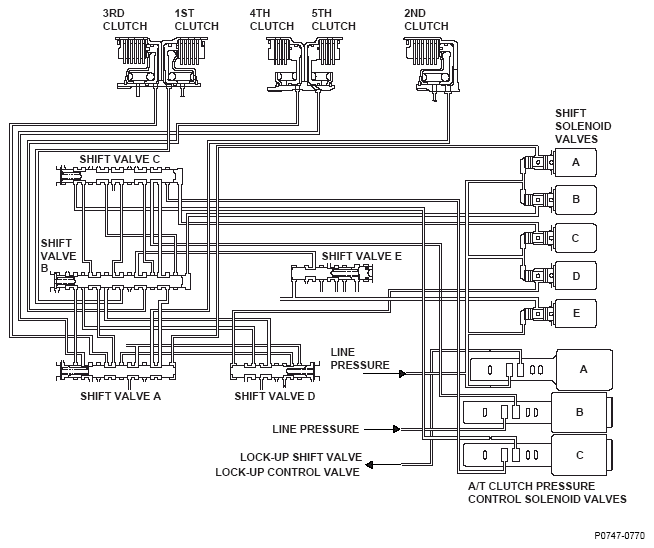

  Fig 1: A/T Clutch Pressure Control Solenoid Valves Circuit Diagram

  Courtesy of AMERICAN HONDA MOTOR CO., INC.

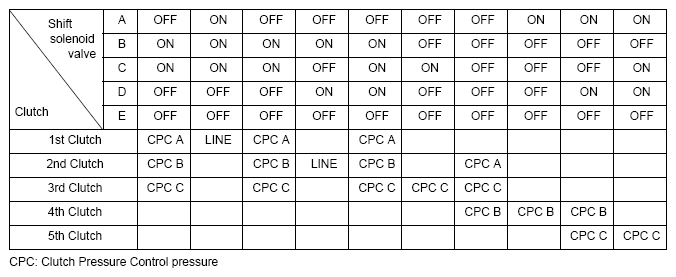

Fig 2: Shift Solenoid Valve Output (D Position)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
