CMP Sensor B Replacement

  1. Remove the air cleaner (see AIR CLEANER ELEMENT INSPECTION/REPLACEMENT ).
  2. Remove the EVAP canister purge valve (see EVAP CANISTER PURGE VALVE REPLACEMENT ).
  3. Disconnect the CMP sensor B connector (A).

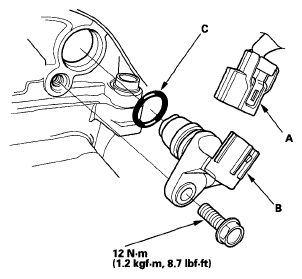

    Fig 1: CMP Sensor B, Connector And O-ring With Torque Specifications
    G06267516Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove CMP sensor B (B).
  5. Install the parts in the reverse order of removal with a new O-ring (C) coated with clean engine oil.
