Servo Body

The servo body contains the servo valve, shift valve D, the accumulators for 2nd, 4th, and 5th, and shift solenoid valves A, B, C, D, and E.

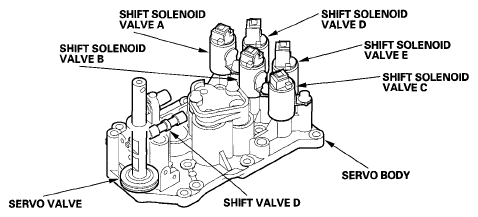

Fig 1: Identifying Servo Valve, Shift Valve D And Shift Solenoid Valves

Courtesy of AMERICAN HONDA MOTOR CO., INC.
